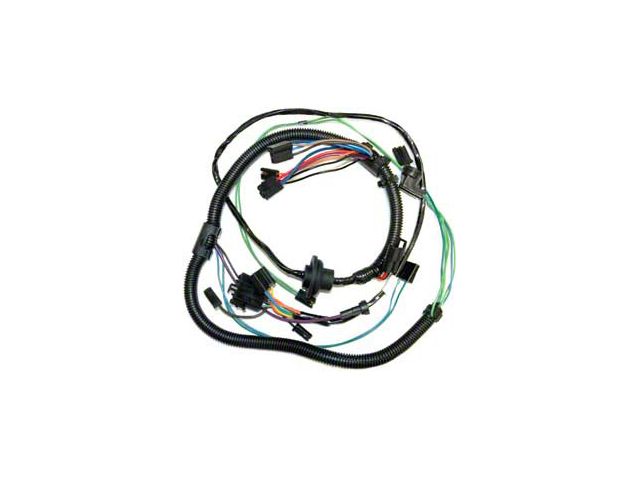

1977 Corvette Air Conditioning Wiring Harness With Alarm SwitchIn Door Show Quality (Sports Coupe)Find parts that fit my vehicle

Item EK-25-106744-1
1 Reviews of similar
Our Price

$284.99

Military, Medical & First Responders $14.25 Available in EK Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • All 2nd Design: Vin Ending In 27373 To 49213
      • Alarm Switch Located In Driver Side Door Lock Cylinder
      • Alarm Horn Located Behind Driver Side Front Fender, Near Firewall
      • Includes Heater Wiring And Air Conditioning Compressor Ground Wire
      • Connects To: A/C Relay, Blower Motor Ground Terminal, Blower Motor Power Terminal
      • Connects To: Blower Motor Resistor, Carburetor Idle Stop Solenoid, Compressor Clutch Switch
      • Connects To: Compressor Ground, Dash Harness Connection, Heater & A/C Controls
      • Connects To: Low Pressure Cut-Off Switch, Starter Motor Extension Harness Connection, Thermostat Switch
      • Fits Sports Coupe

      Description

      Complete Wiring Solution. The 1977 Corvette Air Conditioning Wiring Harness With Alarm Switch In Door Show Quality provides a comprehensive wiring setup designed specifically for the second design 1977 Corvette. This harness integrates the air conditioning system wiring along with the anti-theft alarm components, ensuring proper function and compatibility with factory systems. It is essential for restoring or upgrading the vehicle’s electrical connections to OEM specifications.

      Construction and Appearance. This harness features high-quality, durable wiring and connectors made to withstand automotive environments. The design incorporates factory-correct connections and durable insulation to prevent shorts and wear, maintaining electrical integrity. Additionally, it includes grounding for the air conditioning compressor and heater wiring for a complete assembly.

      Installation. Installation requires moderate mechanical knowledge but is straightforward with no drilling needed. The harness connects directly to existing OEM terminals and components, facilitating a secure and precise fit.

      Application. Tailored specifically for the second design 1977 Corvette Sports Coupe, this harness matches the unique alarm system switch placement in the driver door lock cylinder and the relocated alarm horn position, ensuring full compatibility with this model’s updated anti-theft and air conditioning systems.
