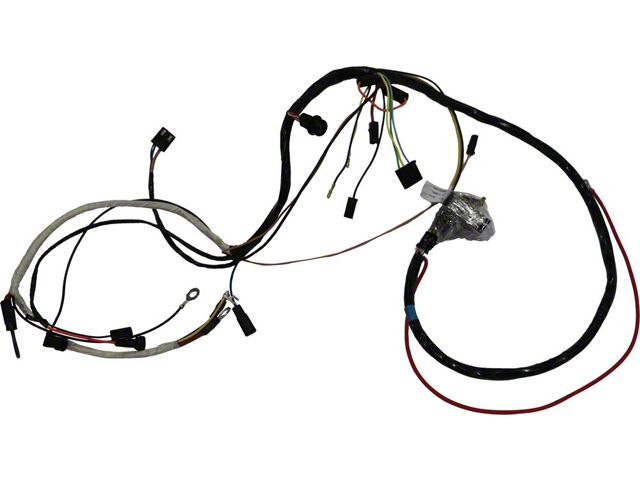

Ecklers Engine Wiring Harness With 350ci And 4-Speed Manual Transmission Show Quality (1972 Corvette C3)

Product Information

Features, Description, Q&A, Specs & Installation

Features

All Small Block With Manual Transmission
Requires Use Of Transmission Controlled Spark (T.C.S.) Solenoid To Complete Wiring To T.C.S. Switch Located In Passenger Side Cylinder Head
Connects To Carburetor Idle Stop Solenoid
Connects To Dash Harness At Firewall
Connects To Ground At Bell Housing Bolt
Connects To Heater Blower Motor For Cars Without A/C
Connects To Heater Blower Motor Ground Terminal For Cars Without A/C
Connects To Horn Relay
Connects To Ignition Coil Positive Terminal
Connects To Starter Solenoid
Connects To T.C.S. Solenoid In Intake Manifold
Connects To T.C.S. Switch Harness In Passenger Side Cylinder Head
Connects To T.C.S. Switch On Transmission
Connects To Windshield Wiper Door Limit Switch
Connects To Windshield Wiper Motor And Its Ground Terminal
Connects To Windshield Wiper Pump
Fits 1972 Corvette C3

Description

Engine Wiring Harness. The Engine Wiring Harness with 350ci and 4-Speed Manual Transmission is designed to deliver precise electrical connections required for small-block engines with manual transmissions. It integrates all vital electrical components such as ignition, starter, and windshield wiper systems, ensuring efficient operation of your vehicle’s engine and accessory functions. This harness enhances reliability and simplifies wiring installation for enthusiasts and professionals alike.

Construction and Appearance. Crafted using high-quality wiring and durable insulation, this harness ensures long-lasting performance and resistance to harsh engine bay conditions. The finished assembly includes robust connectors and a protective coating to shield against heat, vibration, and moisture. The organized wiring layout provides a clean and professional appearance beneath the hood.

Installation. Installation requires moderate automotive wiring knowledge but does not require drilling or modifications to the vehicle’s factory structure. Connections are designed to match original equipment specifications for an efficient and accurate fitment process.

Application. Specifically engineered for the 1972 Corvette C3 with a small block engine and manual transmission. Note that the use of the transmission controlled spark solenoid is necessary to complete the wiring to the T.C.S. switch located in the passenger side cylinder head.
