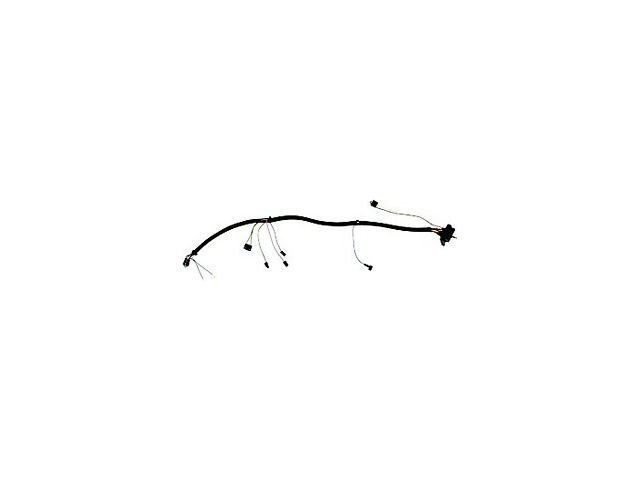

Ecklers 1977 Corvette Engine Wiring Harness With Alarm In Door Show Quality (Sports Coupe)

Product Information

Features, Description, Q&A, Specs & Installation

Features

All 2nd Design: VIN Ending In 27373 To 49213
Alarm Switch Located In Driver Side Door Lock Cylinder
Alarm Horn Located Behind Driver Side Front Fender, Near Firewall
Requires Use Of A Starter Motor Extension Harness Complete Wiring To Starter Solenoid
Connects To Dash Harness Connection At Firewall
Connects To Hood Ajar Switch
Connects To Ignition Coil On Distributor
Connects To Oil Pressure Sender Unit
Connects To Starter Motor Extension Harness Connection
Connects To Tachometer Filter Connection
Connects To Windshield Washer Pump
Connects To Windshield Wiper Motor
Connects To Windshield Wiper Motor Ground Terminal
Fits Sports Coupe

Description

Engine Wiring Harness Overview. The 1977 Corvette Engine Wiring Harness With Alarm In Door Show Quality is a precise replacement cable assembly designed specifically for second design models. It seamlessly integrates the vehicle’s anti-theft alarm system, with the alarm switch located in the driver side door lock cylinder and the alarm horn situated behind the driver side front fender near the firewall. This harness ensures factory-correct wiring functionality, contributing to reliable engine and security system performance.

Construction and Appearance. Crafted with high-quality materials, this harness features durable insulation and factory-grade connectors to replicate original factory specifications. The wiring is carefully bundled and coated for protection against heat, oil, and abrasion typically found in the engine compartment environment. The finish reflects OEM construction standards, offering a clean and professional installation look.

Installation. Installation of this harness is straightforward for those familiar with automotive wiring, requiring connection to multiple factory points including the dash harness, starter solenoid extension, and various engine sensors. No drilling or major modifications to the vehicle are necessary, making the process efficient while preserving vehicle integrity.

Application. Specifically designed to fit Sports Coupe.
