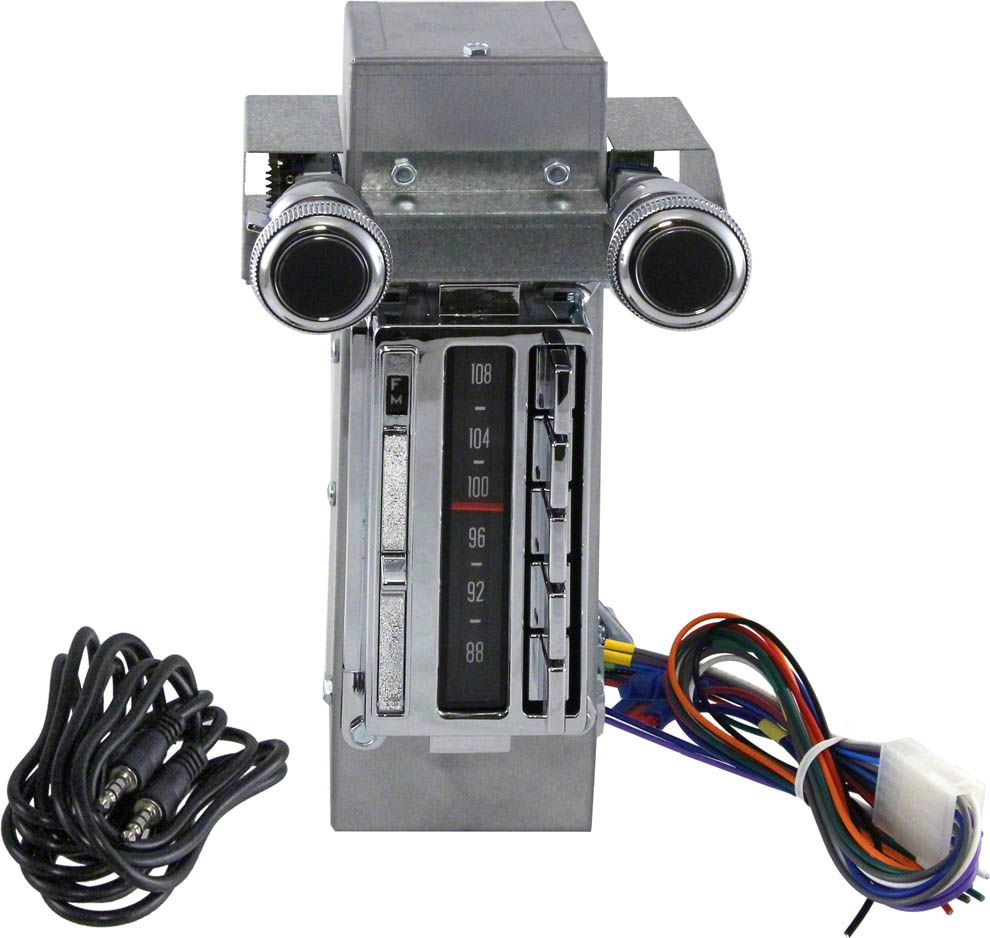

Radio, AM/FM Stereo Shal (1967 Corvette C2)

Item EK-25-242829-1
Shop Owners Save More! Sign up for our dealer program

    Product Information

    Features, Description, Reviews, Q&A, Specs & Installation

    Features

    • Vertical Reproduction That Looks, Functions, And Fits Like The Original
    • Designed To Fit In The Original Dash Without Modification
    • Radio Case Depth Of Only 4 Inches To Allow Room For Air Conditioning And Other Options
    • AM/FM Roll Over Type Dial With Slide Bar To Select Radio Band
    • No Digital Display To Preserve Classic Look
    • Dial Pointer, Knobs, And Pushbuttons Move And Work Like The Original
    • Bluetooth 5.0 For Wireless Audio Streaming And Hands-Free Phone Control With Built-In Microphone
    • 3.5mm Auxiliary Port For Compatible Devices Such As MP3 Players, CD Players, Or Updated Cassette/8-Track Players
    • Additional Input Jack Designed For Foot Control Switch
    • 12 ½ Inch 12-Wire Harness With Male And Female Connections For Easy Wiring And Connection/Disconnection
    • Harness Includes Power, Ground, 12-Volt Output Wire, 4 Speaker Connections, And Dial Lights
    • 4 Channel RCA Outputs For External Amplifier Plus One Subwoofer RCA Output
    • Radio Case Dimensions: 8.25 Inches Height, 4.625 Inches Width, 4 Inches Depth (Including Mounting Bracket)
    • High-Quality Chrome Plated Diecast Front, Pushbuttons, Knobs, And Backrings That Match The Original
    • AM/FM Radio With Programmable Channel Spacing For North American Or European Standards
    • Digitally Tuned AM/FM Stereo Receiver With Stable High-Quality Reception While Maintaining Analog Display
    • Supports Bluetooth Profiles: HFP, HSP, A2DP, And AVRCP
    • Programmable Audio Equalizer For Bluetooth Streaming Music
    • Compatible With XM Radio Receivers Using 3.5mm Input Jack (XM Not Included)
    • Radio Output Power: 180 Watts RMS (45W X 4 Channels, 4 Ohms, 14.4V, 1 kHz)
    • Recommended Speakers: 40+ Watts RMS Rating, 4 Ohms, SPL 88+
    • Operates On 11.5-16 Volts DC, Negative Ground Only
    • Controls Use Same Size And Thread Shafts As Original, With Included Mounting Hardware
    • Control Operations Include On/Off, Volume, Tone, Tuning, Balance, And Hidden Fader Function
    • Pushbuttons Save 5 FM And 5 AM Preset Stations And Support Bluetooth Functions Like Play/Pause And Answer/Hold
    • Memory Retention For Presets And User Settings Without Constant Power
    • Warm White LED Dial Lights To Match Original Appearance
    • Standard Motorola Antenna Jack Located On Back Of Radio
    • Mounting Backstrap Attached To Back Of Radio
    • Fits 1967 Corvette C2 Dashboard Precisely

    Description

    Classic Audio Upgrade. The 1967 Corvette AM/FM Stereo Radio combines vintage aesthetics with modern technology, delivering authentic functionality enhanced with features such as Bluetooth streaming and hands-free phone control. It enhances audio enjoyment while preserving the original dashboard’s look and feel.

    Construction and Appearance. Crafted with a high-quality chrome plated diecast front, pushbuttons, knobs, and backrings that closely match the original 1967 Corvette radio, the unit offers robust durability and classic visual appeal. The digitally tuned AM/FM stereo mechanism maintains the signature analog dial design for a seamless vintage experience.

    Installation. Designed for direct, bolt-in installation with no modifications needed, the compact 4-inch depth behind the dash provides space for factory air conditioning and other options. The included 12-wire harness simplifies wiring and connection during installation.

    Warranty. The product is backed by a manufacturer warranty to ensure quality and reliability standards.

    Application. Specifically designed to fit 1967 Corvette C2.

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Install Details & What's in the Box

    Installation Info

    Installation Time

    (approx) 2 Hours

    Difficulty Level:

    Light to Moderate mechanical skill required.

    Installation Guides

      No guide available for this part yet.

    What's in the Box

    • (1) Radio
    • (1) Wiring Harness
