Ecklers AM/FM Stereo Bluetooth Radio (1965 Corvette C2)

Product Information

Features, Description, Reviews, Q&A, Specs & Installation

Features

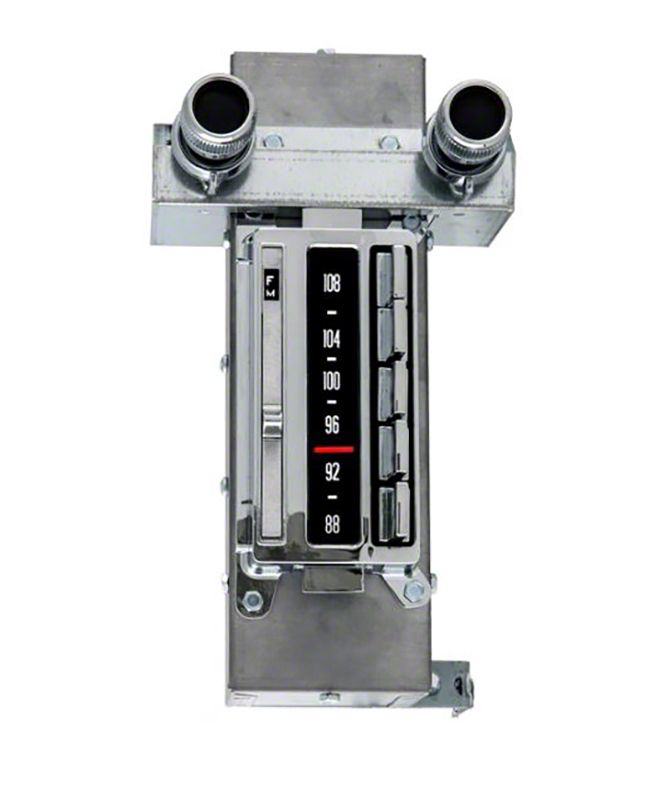

Vertical reproduction that looks, functions, and fits like the original
Designed to fit in the original dash without any modification
Radio case depth of only 4 inches behind the dash to allow room for air conditioning and other options
AM/FM ‘roll over’ type dial that looks and works exactly like the original
Radio band selected by using the slide bar
No digital display included
Dial pointer, knobs, and pushbuttons move and work like the original when powered on
Equipped with Bluetooth 5.0 for wireless audio streaming and hands-free phone control
Includes 3.5mm auxiliary port for compatible devices like MP3 players, CD players, or updated cassette/8 track players
Additional input jack for foot control switch
12.5 inch 12-wire harness with male and female connections for easy connection and disconnection
Harness contains power, ground, 12-volt output wire, four speaker connections, and dial lights
Four channel RCA outputs and subwoofer RCA output for external amplifier
Radio dimensions: 8.25 inches high, 4.625 inches wide, and 4 inches deep including mounting bracket
High quality chrome-plated diecast front, pushbuttons, knobs, and backrings matching original
AM/FM radio with programmable options for North American or European channel spacing
Digitally tuned AM/FM stereo receiver with stable high quality reception and original analog display
AM or FM band selected by slide bar with slide up for AM and slide down for FM
Sensitivity: FM S/N 30dB typical 5 dBµ, AM S/N 20dB typical 29 dBµ
Bluetooth supports built-in microphone with HFP, HSP, A2DP, and AVRCP profiles
Bluetooth mode offers programmable audio equalizer while streaming music
Auxiliary input compatible with multiple audio devices except original unaltered 8-track players
Compatible with XM radio receivers using 3.5mm input jack (XM receiver not included)
Radio output: 180 watts RMS (45 watts x 4 channels at 4 ohms, 14.4V, 1kHz)
Protective circuit prevents use with original grounded speakers to avoid radio shutdown due to speaker wire faults
Speaker recommendations: 40+ watts RMS rating, 4 ohms, SPL 88+
Four low level outputs and one subwoofer RCA output on back for external amplifier
Operates on 11.5-16 volts DC negative ground only
Controls use same size and thread shafts as original, including mounting hardware
Controls include on/off, volume, tone, tuning, balance, and hidden fader function
Pushbuttons save 5 FM and 5 AM preset stations and work with Bluetooth functions like play/pause, answer/hold, and equalizer
Memory retention with power disconnected; no constant power needed for presets or settings
Warm white LED dial lights to match original
Standard Motorola antenna jack on back
Mounting backstrap attached to back of radio
Fits 1965 Corvette C2

Description

Authentic Reproduction Technology. The Radio AM/FM Stereo Shal 1965 is a meticulously crafted reproduction designed to replicate the original 1965 Corvette's radio system while incorporating modern features. It offers vintage aesthetics paired with Bluetooth wireless streaming, auxiliary input, and high-quality audio output to enhance the listening experience in classic cars. This radio maintains the look and feel of the original while delivering reliable performance for daily or show use.

Construction and Appearance. The radio features a high-quality chrome-plated diecast front and precisely machined knobs, pushbuttons, and backrings to replicate the original finish and texture. Its compact case dimensions allow a perfect fit behind the dash without modifications. The analog dial pointer and slide bar control are functional, providing an authentic vintage user interface complemented by warm white LED dial lights for enhanced authenticity.

Installation. Installation requires no modifications or drilling, as the radio fits directly into the original 1965 Corvette dash opening. It includes a detailed 12-wire harness with male and female connections for straightforward connection and disconnection, facilitating integration with the original vehicle wiring.

Warranty. This radio comes with a warranty covering defects and craftsmanship for a specified period as provided by the manufacturer.

Application. Built exclusively for 1965 Corvette C2 models, ensuring exact fitment and compatibility with original dash dimensions and electrical systems.
