Find Radiators for your Corvette

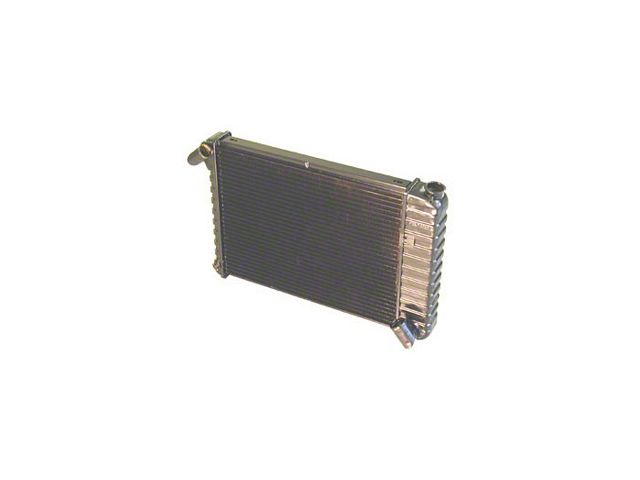

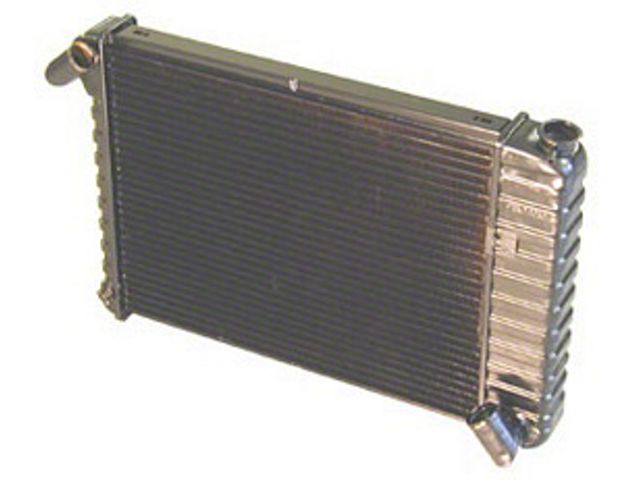

Copper And Brass Direct-Fit Radiator Reproduction BigBlock (66-68 Corvette C2 & C3)Find parts that fit my vehicle

Item EK-25-130099-1
3 Reviews of DeWitts
Our Price

$1,589.99

Military, Medical & First Responders $79.50 Available in EK Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Complete Correct Harrison Four Row Copper Brass Radiator Assembly
      • Features Correct Channels With Square And Round Holes, Cut Outs, And Dimples
      • Soldered Core And End Tanks For Original Appearance
      • Factory-Sized Inlet And Outlet Connection Locations
      • Fits 1966 And 1967 Corvettes With Big Block Engine Options
      • Radiators Are Assembled In The U.S.A. With A Lifetime Warranty
      • Original GM Part Number And “MK” ID Tag Attached To Right End Tank
      • Press Formed End Tanks Include Correct Rib Pattern
      • “Fill Cold” And “Harrison” Embossment Reproduced As Originals
      • Serpentine Cooling Fins Deliver Optimum Airflow Across Core Tubes For Cooling
      • Black Ice Two-Part Epoxy Coating Standard On Restoration Radiator Models
      • Radiator Style Single Pass
      • Radiator Flow Direction Crossflow
      • Material Type Copper Brass
      • Inlet Location Driver Side
      • Outlet Location Passenger Side
      • Row Quantity 4
      • Tube Size ½”
      • Core Width 22.5”
      • Core Height 17.5”
      • Overall Width 27.5”
      • Core Thickness 2.63”
      • Overall Thickness 3.25”
      • Overall Height 18.5”
      • Cap Included N/A
      • Finish Black
      • Filler Neck Height 1”
      • Inlet Size 1.5”
      • Outlet Size 1.75”
      • Cooler Thread Size N/A
      • Fits 66-68 Corvette C2 & C3 Big Block Engine Models Only

      Description

      Authentic Replacement Radiator. The DeWitts Copper And Brass Direct-Fit Radiator Reproduction BigBlock is designed to faithfully replicate the original cooling system component for high-performance big block engines. It effectively manages engine heat, enhancing reliability and performance in demanding driving conditions by maintaining optimal operating temperatures.

      Construction and Appearance. This radiator is constructed utilizing original copper and brass materials with hand-soldered joints, replicating the factory Harrison design precisely. It features factory tooling-pressed end tanks with correct rib patterns, embossed markings including "Fill Cold" and "Harrison," and a durable Black Ice two-part epoxy coating for an authentic, show-quality finish.

      Installation. Installation is straightforward with factory-sized inlet and outlet mounting locations requiring no modifications or drilling. It fits directly into the original radiator mounting points for a seamless replacement.

      Warranty. The radiator comes with a lifetime warranty, ensuring long-term performance and peace of mind.
      Application. Specifically engineered to fit 1966 to 1968 Corvette C2 and C3 models equipped with big block engines, meeting exact OEM specifications for these vehicles.
