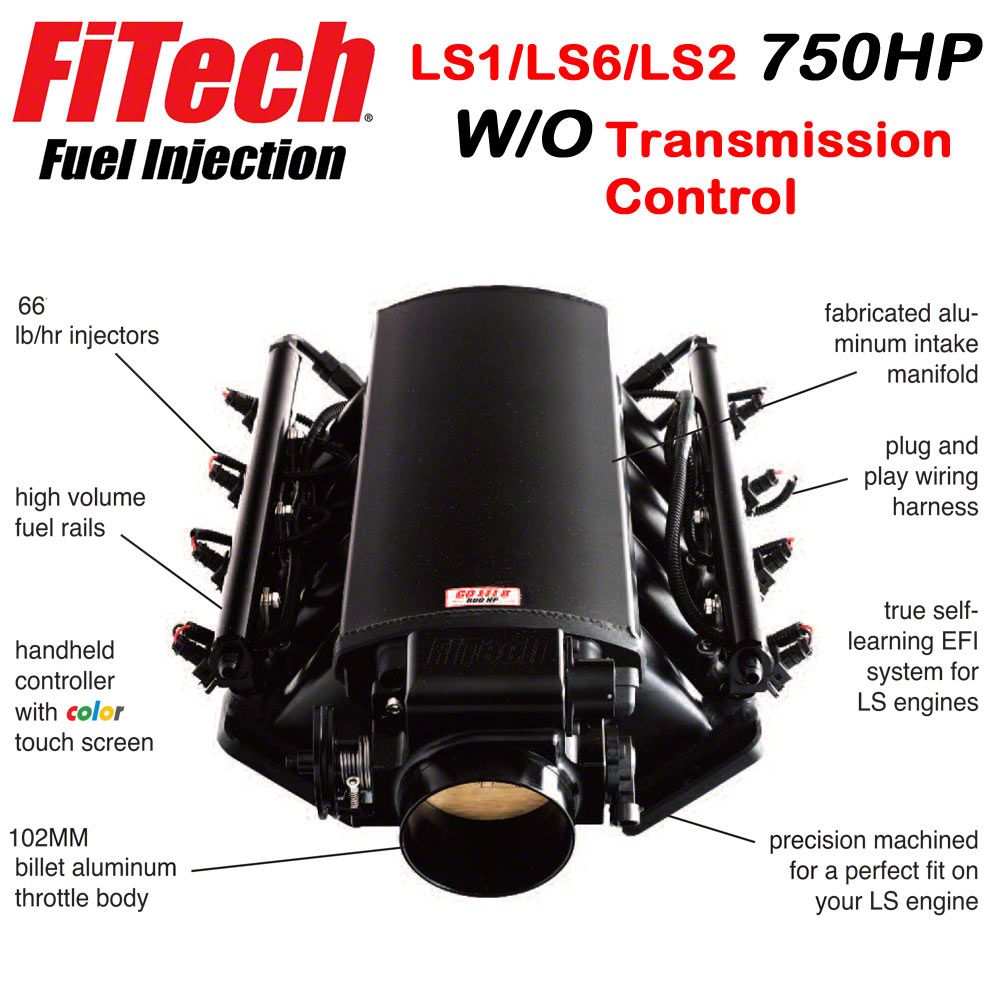

FiTech Fuel Injection Ultimate LS1/LS2/LS6 750HP Intake Manifold Kit with 102mm Throttle Body (Universal; Some Adaptation May Be Required)

Item EK-25-389120-1
Product Image
$0.00
Want $10? Write one of the first 5 reviews
Our Price

$2,107.00 kit

In Stock

Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • FiTech Fuel Injection Ultimate LS1/LS2/LS6 750HP Intake Manifold Kit
      • Includes a Low-Profile 102mm Throttle Body
      • Self-Tuning Induction Type
      • Comes as a Complete Kit
      • TIG-Welded Fabricated 3mm Thick Aluminum Intake Manifold with 1,500-6,500 RPM Power Band Up to 750 HP to the Flywheel
      • Has a 3 BAR Map Sensor for Power Adder Applications Up to 30 PSI of Boost
      • Compatible with 24x and 58x Crank and Cam Compatible
      • Has 2 Programmable Fan Control Outputs
      • Matte Black Finish
      • Comes in Kits
      • Universal Fit

      Description

      High-Performance EFI Upgrade. The FiTech Fuel Injection Ultimate LS1/LS2/LS6 750HP Intake Manifold Kit is a comprehensive solution designed to transform your engine’s performance with modern fuel injection control. Supporting up to 750 horsepower to the flywheel, this system is tailored for enthusiasts who demand reliability, tunability, and power. Its self-tuning capabilities and included ECU make it ideal for LS-based engine builds that demand precise fueling and seamless setup.

      Construction and Appearance. Featuring a TIG-welded fabricated intake manifold made from 3mm thick aluminum, this kit offers a sturdy and efficient airflow solution across a 1,500–6,500 RPM power band. The matte black finish provides a stealthy, performance-oriented look, while the 102mm low-profile throttle body maximizes airflow without adding height. The included 3 BAR MAP sensor supports up to 30 PSI of boost, making it a strong choice for forced induction builds.

      Installation. As a complete kit, this system is designed for an adaptable installation experience. It comes with a handheld controller and windshield mount, an LS-compatible ECU, injectors, a fuel rail set, and the required installation hardware. The plug-and-play configuration and compatibility with both 24x and 58x crank and cam signals make it a straightforward upgrade for modern LS applications.

      Application. This FiTech Fuel Injection Ultimate LS1/LS2/LS6 750HP Intake Manifold Kit has a universal fit. It delivers enhanced tuning capabilities, precise fuel delivery, and high-RPM efficiency, making it a top-tier option for LS builds aiming to push power while maintaining drivability and control.

      FiTech Fuel Injection 70003

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 5 Hours

      Difficulty Level:

      Mechanical expertise or professional installation required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Throttle Body
      • (1) Hand-Held Controller with Cable
      • (1) Controller Windshield Mount
      • (1) LS ECU
      • (1) 55 Pound/Hour Injector Set
      • (1) High-Volume Fuel Rail Set
      • Installation Hardware
