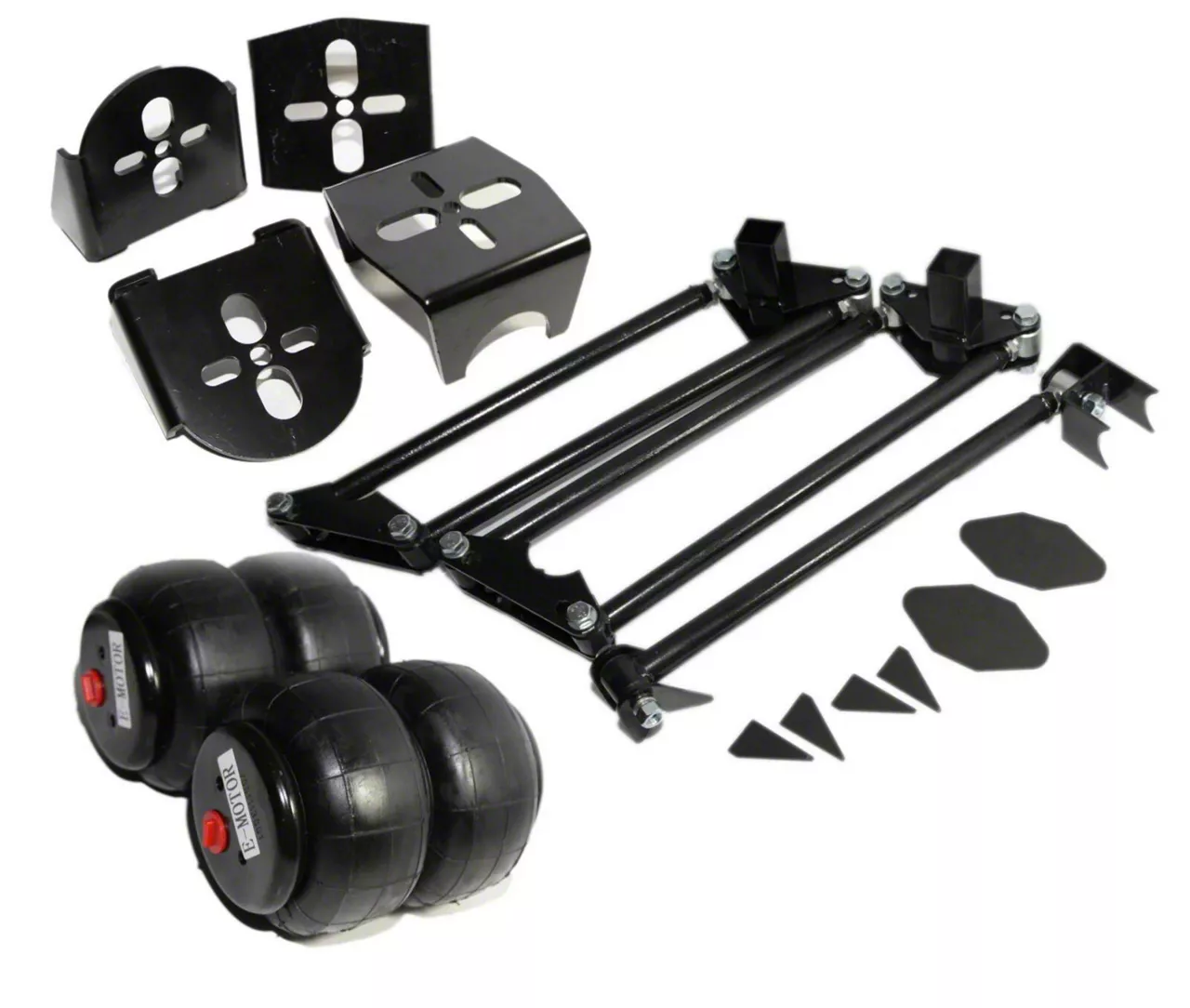

Weld-On 4-Link Rear Air Ride Suspension Kit with Air Bags (Universal; Some Adaptation May Be Required)

Application for universal Rod Rat Truck Car Air Ride; for Truck Classic Car Air Ride Package Includes: 4 x Heavy Duty 24" Steel Bars 4 x Steel Rod Ends W/ Urethane Bushings 2 x Steel, Weld-On Axle Mounts 2 x Steel, Weld-On Fame Mounts 4 x Steel, Weld-On Center Link Axle Mounts 10x Bolts with Nuts< 1 x Pan Hard Bar 24.00" Long 1 x Weld-On Axle Mount For PanHard Bar 2 x Weld-On Frame Mounts For PanHard Bar 2 x Weld-On Lower Axle Bag Mount 2 x Weld-On Upper Frame Bag Mount 2x Standard 2500 Single 1/2"npt Port Air Spring Bags 4 Link Bar Dimensions: Tubing Has 1.3" Outside Diameter All Four Bars Measure 24.00" (Center To Center Adjusted All The Way In) 2x Air Bags 2 smaller bolt holes diameter: 0.3" (8mm) 1 bigger bolt hole diameter: 1/2"NPT (18mm) Air spring bag Extended diameter: 7.3" (185mm) Air spring bag min height: 2. 5"(63.5mm) Air spring bag capacity: 2500LBS For Front or Rear (LH or RH) Provide better handing and comfort ride for you. Design for comfort suspension Heavy duty double convoluted crimped 100% Brand NEW Universal Rear Weld-On Parallel 4 Link Suspension Kit Left Hand and Right Adjustable Rod Ends for Easy Adjustment Lightly easier to visualize and install (bar mounts are built together) Can be installed beside frame-rail, inboard or outboard May allow more room for exhaust (no angled upper bars) High Strength Material，Corrosion-resistant Steel Plated Materia Universal Compatibility
