G Force Performance LS to SBC Adapter Plates (Universal; Some Adaptation May Be Required)
Item EK-25-928330
Shop Owners Save More!
Sign up for our dealer program
Product Information
Description, Q&A
Description

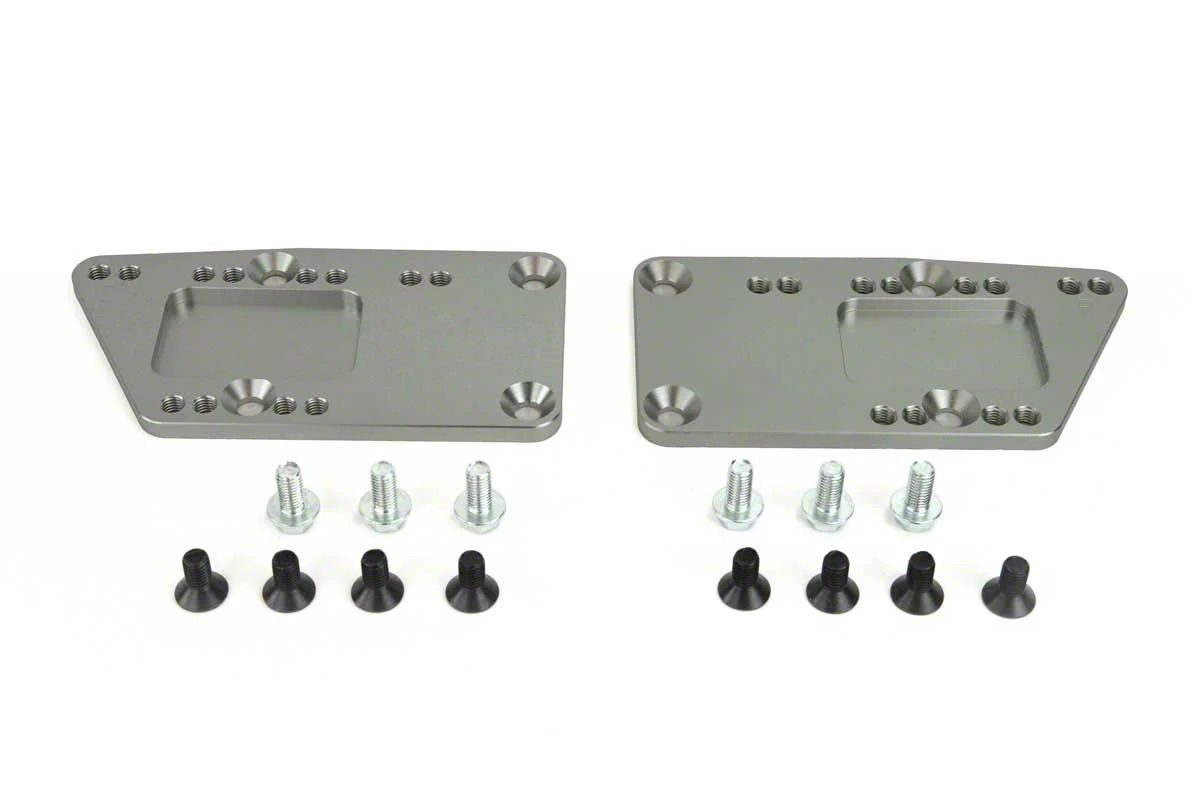

These 3/8" thick Billet Aluminum adapter plates allow a LS Series Engine to be bolted to a vehicle originally equipped with a Small Block Chevy (SBC) engine.
These adapters bolt to your LS series engine and have provisions for 4 different mounting locations for a standard 3 bolt SBC Motor mount.
Includes:2 aluminum adapter plates6 flange head M10 bolts8 flat head M10 bolts.
The four positions of these mounts are 0.100" , 0.600" , 1.860" , and 2.360" engine moved forward.
Engine crank centerline will be 0.18" above factory SBC.
These adapters bolt to your LS series engine and have provisions for 4 different mounting locations for a standard 3 bolt SBC Motor mount.
Includes:2 aluminum adapter plates6 flange head M10 bolts8 flat head M10 bolts.
The four positions of these mounts are 0.100" , 0.600" , 1.860" , and 2.360" engine moved forward.
Engine crank centerline will be 0.18" above factory SBC.
