Microsteer Electric Power Steering Conversion Kit (Universal; Some Adaptation May Be Required)

Item EK-66-858559-1
Eckler's no longer carries the Microsteer Electric Power Steering Conversion Kit (Universal; Some Adaptation May Be Required). Please check out 1955-1957 Ford Thunderbird Suspensionfor an updated selection.
1 Reviews of similar
Shop Owners Save More! Sign up for our dealer program
Join For FREE

    Product Information

    Features, Description, Q&A

    Features

      _x000D_
    • Operating Voltage Nominal 13.8V DC
      • _x000D_
    • Maximum Current Draw 30 Amps
      • _x000D_
    • Average Current Draw Less Than 2 Amps
      • _x000D_
    • System Weight MGU & ECU 9.70lbs/4.4kg
      • _x000D_
    • Maximum Torque Output 32Nm/24lb.ft
      • _x000D_
    • IP Rating IP67
      • _x000D_
    • Operating Temperature -20 To 120C/-4 To 248F
      • _x000D_
    • Motor Rated Power 220 Watts
      • _x000D_
    • MGU Spline Pattern 11/16"-36 Both Ends
      • _x000D_
    • Fits Universal; Some Adaptation May Be Required
      • _x000D_

    Description

    Electric Power Steering Kit. The Microsteer Electric Power Steering Conversion Kit delivers an advanced power assistance solution compatible with nearly any vehicle equipped with manual steering. This system improves steering control and responsiveness without the need for a hydraulic setup or replacement steering rack, making it suitable for a wide range of automotive applications.

    _x000D__x000D_

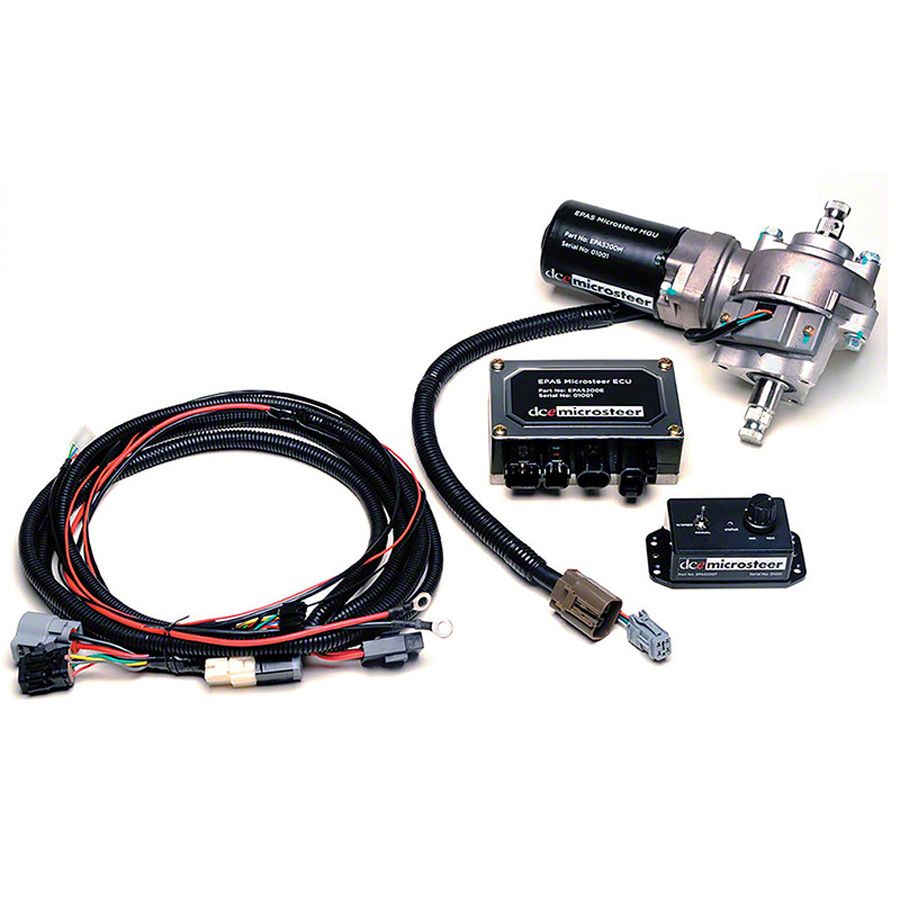

    Construction and Appearance. The kit includes a durable motor and gearbox unit, combined with a compact electronic control unit and tuning box, all designed for robust performance. Featuring a sleek and rugged IP67-rated enclosure, it offers protection against dust and water, ideal for demanding environments.

    _x000D__x000D_

    Installation. Installation is straightforward and may require some adaptation depending on the vehicle’s existing steering components. No major drilling or modifications to the steering rack are typically necessary, which simplifies the upgrade process. Note that modifying the wiring harness will void the product warranty.

    _x000D__x000D_

    Warranty. This product is backed by a one-year warranty covering manufacturing defects and performance issues.

    _x000D__x000D_

    Application. Designed for universal compatibility, this electric power steering kit may require specific adaptation to fit certain vehicles. It does not include a wheel speed sensor, which is recommended for speed-sensitive tuning and must be purchased separately if needed.
