Aeromotive PressureWorx Ally Controller for KPM1500 Fuel Pump Modules (Universal; Some Adaptation May Be Required)
Item EK-66-907772
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- Intended for use in modern OEM vehicles or aftermarket ECM systems with a Fuel System Control Module (FSCM) _x000D_
- Compatible with Gen5 Camaro/SS/CTS-V type fuel pump modules _x000D_
- Does not include KPM1500 fuel pump _x000D_
- Includes parts to modify KPM1500 for FSCM-equipped vehicles and aftermarket ECM/FSCM systems _x000D_
- Twin Bosch PWM compatible OEM pumps _x000D_
- Re-engineered pump support system _x000D_
- Robust Venturi pumps included _x000D_
- Integral safety overpressure valves _x000D_
- Built-in anti-reversion/check valve _x000D_
- Replaces low-pressure regulator with a high-pressure type for improved performance _x000D_
- Allows pressure regulation similar to Gen5/SS OEM fuel module types _x000D_
- Supports fuel pressures typically between 60-65 psi in the USA _x000D_
- Reduces power to fuel pumps by approximately 71% during idle/cruise using PWM control _x000D_
- Compact controller with 60A minimum continuous power rating _x000D_
- Over-temperature shutdown with automatic reset _x000D_
- Short circuit protection for indefinite operation _x000D_
- OEM Delphi/Aptiv electrical connections _x000D_
- Cross-linked polyethylene wiring _x000D_
- UL94 rated components throughout _x000D_
- Fully returnless system - external inline filter required _x000D_
- Designed for use as ally/piggyback controller supporting OEM FSCM _x000D_
- No additional relays or Hobb's switches required _x000D_
- Approximate dimensions - 4" x 2.1" x 1-5/8" _x000D_
- Fits universal; some adaptation may be required. Designed specifically for latest KPM1500 fuel pump modules, not compatible with Streetfighter 1500 models. _x000D_
Description
Fuel System Control Support. The Aeromotive PressureWorx Ally Controller for KPM1500 Fuel Pump Modules provides a vital electronic control system that allows modern OEM vehicles and aftermarket ECMs with Fuel System Control Modules (FSCMs) to properly regulate twin high-power Bosch pumps. It optimizes fuel pump operation by modulating pump speed through pulse width modulation (PWM), significantly reducing power consumption and thermal load during idle and cruise conditions, which prevents vapor lock and excessive pump wear.

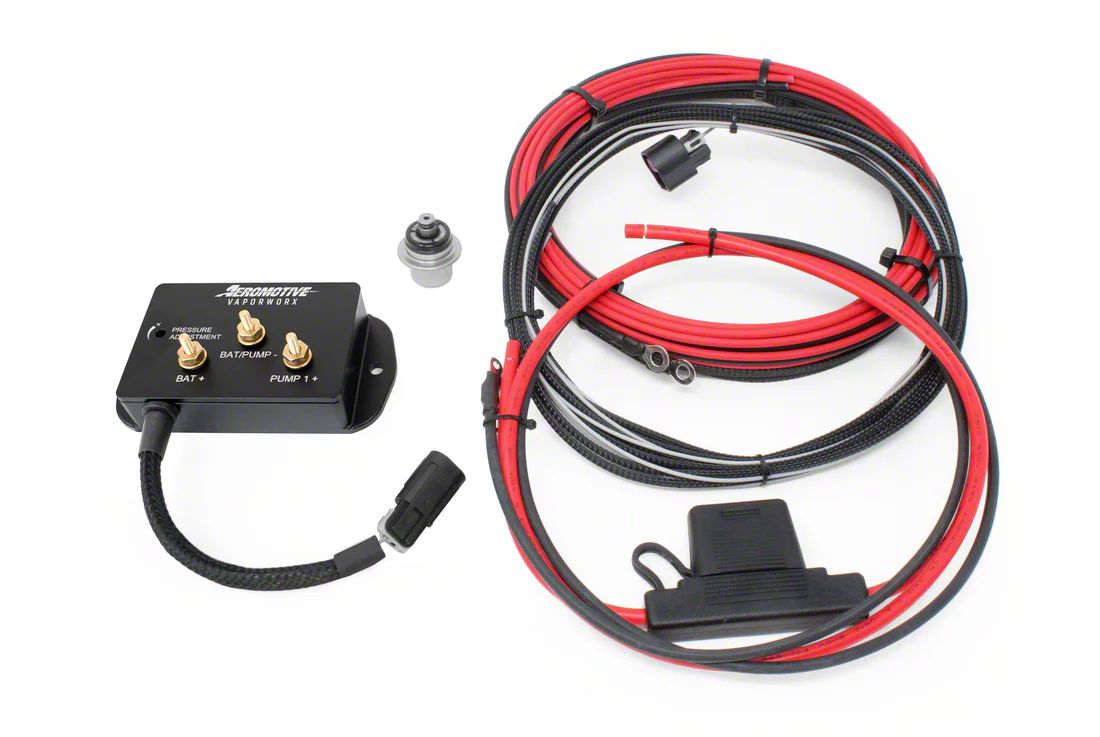

_x000D__x000D_Construction and Appearance. This controller is built using high-quality, UL94 rated components with all wiring cross-linked polyethylene for durability and resistance to automotive environments. It features OEM Delphi/Aptiv-grade electrical connectors and seals ensuring reliable, weatherproof connections. The compact module measures approximately 4" x 2.1" x 1-5/8" and includes thermal and short circuit protection circuits for safe, long-lasting operation.
_x000D__x000D_Installation. Installation is straightforward and typically does not require drilling or extensive modifications. It integrates seamlessly with the OEM FSCM by connecting to the pump power circuits and the vehicle battery, enabling it to function as a piggyback controller to manage the secondary fuel pump.
_x000D__x000D_Warranty. This product carries a 1-year limited warranty covering defects in materials and workmanship.
_x000D__x000D_Application. Designed to fit universally with some adaptation required, this controller is specifically engineered for use with the latest KPM1500 fuel pump modules and is not compatible with the Streetfighter 1500 series.
