1969-1972 Corvette Heater And Air Conditioning Kit Small Block Gen IV Vintage Air
Item EK-25-243795-1
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- For Corvettes Equipped WITH Factory Air Conditioning
- Electronic Servo Motor Controls-No Cables Or Capillary Tube To Route
- Separate High Capacity Heat & Cooling Coils
- Mounts Completely Behind Dash
- Air Conditioning Exits Through Original Dash Vents
- Steel Firewall Cover Plate
- Dehumidified Defrost With Infinite Dash/Floor Blend
- Infinite Dash/Floor Blend

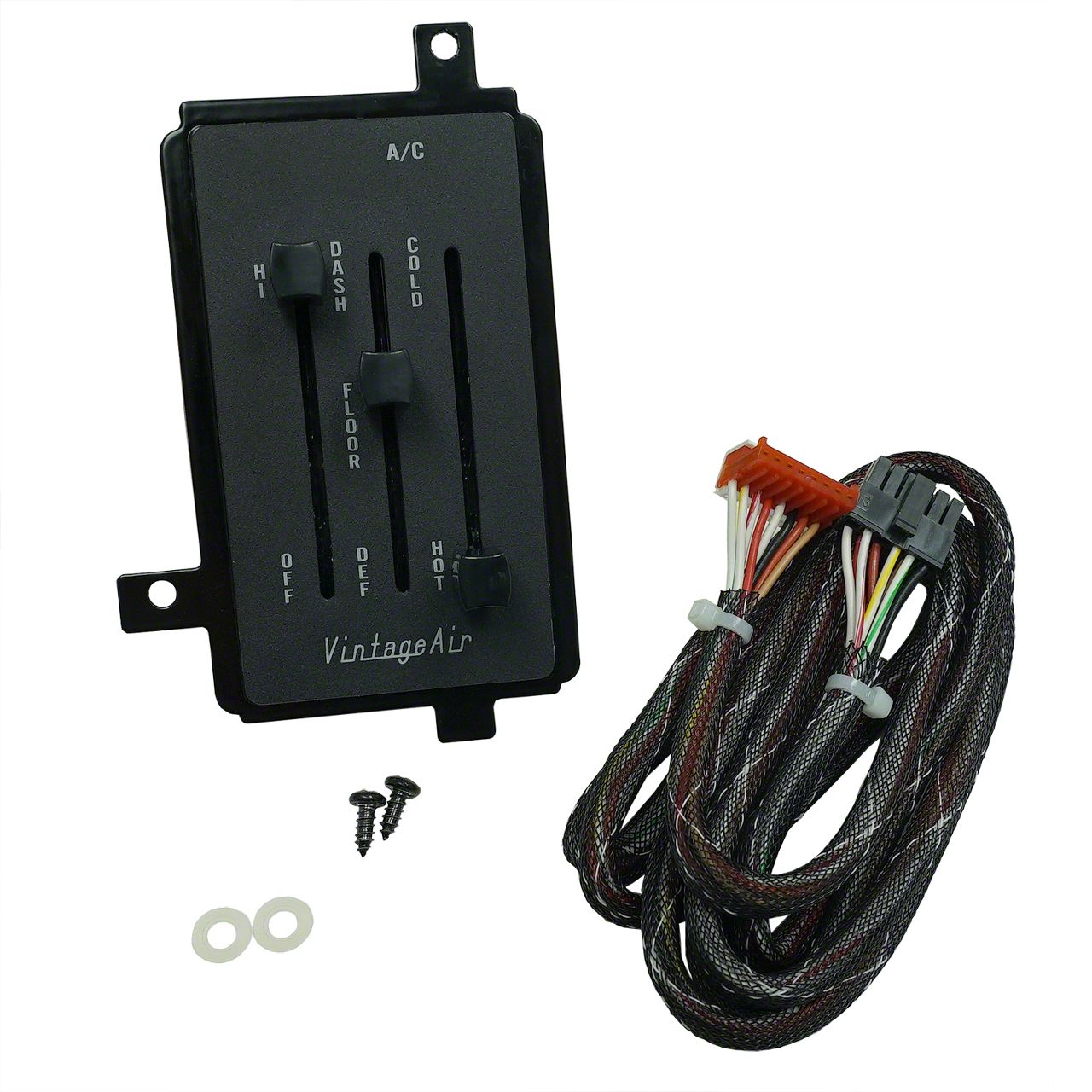

- Adapts To Original "Thumb Wheel" Type Controls
- Includes New Compressor & Brackets
-
NOTE: This unit does NOT include engine pulleys. You must determine if you have enough belt grooves on your water pump pulley and crank shaft pulley to add and operate t
Description
All new design specifically for 1969-73 Corvette models with factory air conditioning. New separate heater and cooling coils and high volume blower give you OEM quality comfort, provide infinite dash and floor blending and retains the factory look inside your vehicle. Factory "wheel type" console controls are used. Sure Fit systems mount to existing holes in dash and firewall in most cases.
The Short And Long Of Chevy Water Pumps
Chevy Corvette mechanical short style water pumps measure 5-5/8” high from the shaft down with the pilot shaft diameter measuring 5/8". Long style Chevy Corvette water pumps measure 7” high from the shaft down, and the pilot shaft diameter was 5/8" as well. Do not mix and match pulleys from short and long water pump e
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Tech Specs
Questions & Answers
No questions about this product yet.
Ask the First Question
