Installation Time
(approx) 2 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
Eckler's Catalogs Available Now!

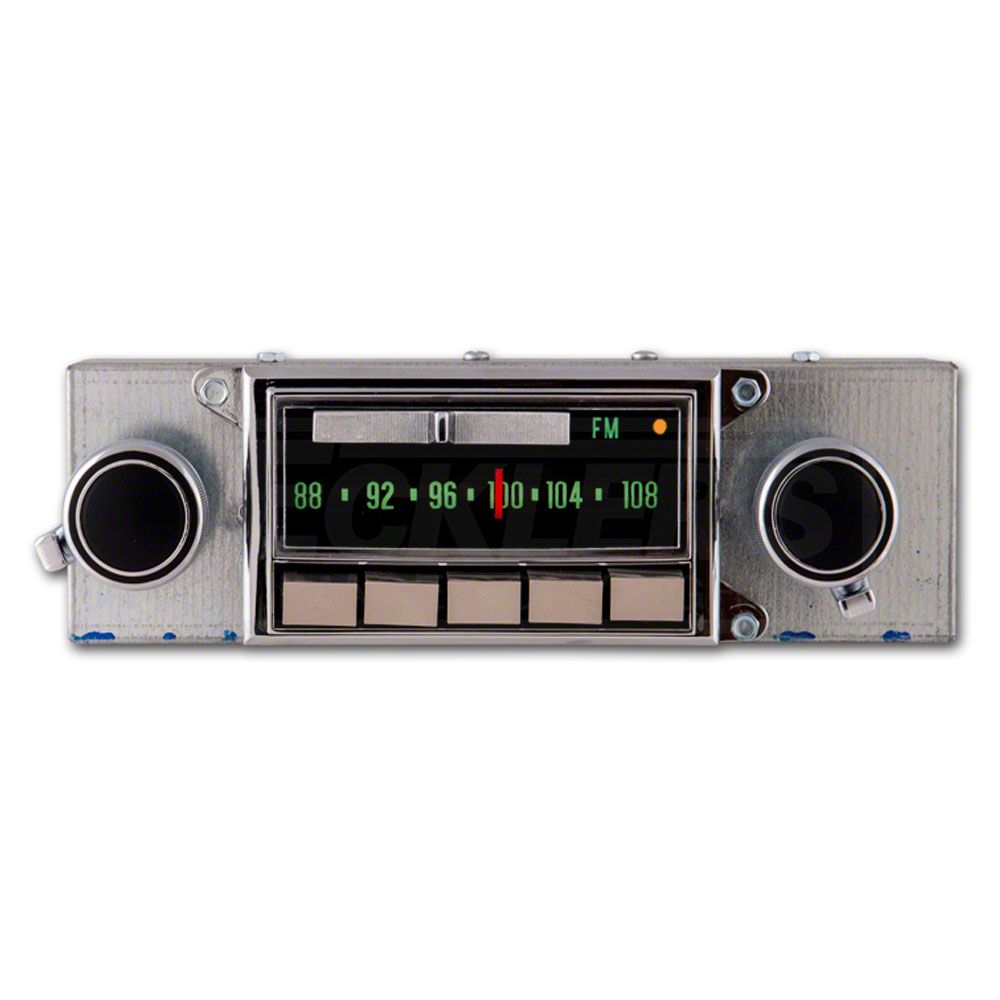

Antique Automobile Radio AM/FM Stereo Radio
(69-71 Corvette C3
Find parts that fit my vehicle Item EK-25-257214-1
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Designed To Look, Fit And Feel Like Original AM/FM Radio
- Radio Case Dimensions: 2.5” H, 8.25” W, 3.5” D Behind The Dash
- Chrome-Plated Die-Cast Zinc Radio Face
- Black And Chrome-Plated Plastic Knobs With Chrome-Plated Plastic Backrings
- Brushed Silver Plastic Pushbuttons With Original Appearance
- AM/FM Radio With North American Or European Channel Spacing Options
- Digitally Tuned AM/FM Stereo Receiver With Analog Display
- AM/FM Roll-Over Dial Scale And Slidebar Band Selection
- Stereo Indicator Illuminates On Stereo Signal
- No Convector Or Multiplexer Needed
- Typical Sensitivity: FM 5 dBµ At 30dB S/N, AM 29 dBµ At 20dB S/N
- Bluetooth® 5.0 With Built-In Microphone For Hands-Free Phone Control
- Supports HFP, HSP, A2DP, And AVRCP Profiles
- Bluetooth Mode With Programmable Audio Equalizer
- 3.5mm Auxiliary Input Jack For Compatible Devices
- Compatible With XM Radio Receivers Via Auxiliary Input
- Additional Input Jack For Foot Control Switch Option
- Radio Output: 180 Watts RMS (45W x 4 Speakers At 4 Ohms)
- Protective Circuit Against Grounded Speaker Wires
- Speaker Recommendations: 40+ Watts RMS, 4 Ohms, SPL 88+
- Four Low-Level RCA Outputs Plus One Subwoofer RCA Output
- Operates On 11.5-16 Volts DC, Negative Ground Only
- Controls Use Original Size And Thread Shafts, Hardware Included
- Control Functions: On/Off, Volume, Tone, Tuning, Balance, Hidden Fader
- Pushbuttons Save 5 FM And 5 AM Presets, Integrate Bluetooth® Controls
- Memory Retention For Presets Without Constant Power
- Green LED Dial Lights Match Original Appearance
- Standard Motorola Antenna Jack On Back
- Includes 9” Mounting Backstrap And 12½” 12-Wire Harness With Connections
- Fits 69-71 Corvette C3
Description
Classic Radio Replacement. The Radio, AM/FM Resto, 69-71 offers an authentic restoration for your 1969-1971 Corvette’s radio system. It replicates the original AM/FM radio’s look and feel with modern digital tuning and Bluetooth connectivity for enhanced audio streaming and hands-free calling.
Construction and Appearance. Crafted with a high-quality chrome-plated die-cast zinc face, complemented by black and chrome-plated plastic knobs and brushed silver pushbuttons, the radio features an accurate vintage aesthetic. The components and finishes are designed to precisely match the original equipment appearance inside the dash.
Installation. Installation is straightforward with no modifications required; the unit fits perfectly into the original dash opening. No drilling or fabrication is necessary, making the upgrade clean and hassle-free.
Warranty. The radio includes a manufacturer's warranty for assured reliability and customer confidence.
Application. Specifically designed to fit the 1969-1971 Corvette C3 dash exactly as the original, ensuring seamless integration without fitment issues.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Install Details & What's in the Box
Installation Info
What's in the Box
- (1) Radio
- (1) Wiring Harness
- (1) Mounting Bracket
