Eckler's warehouse is open, shipping daily and ready to meet all of your automotive needs. Most orders ship same day!

Alt #:

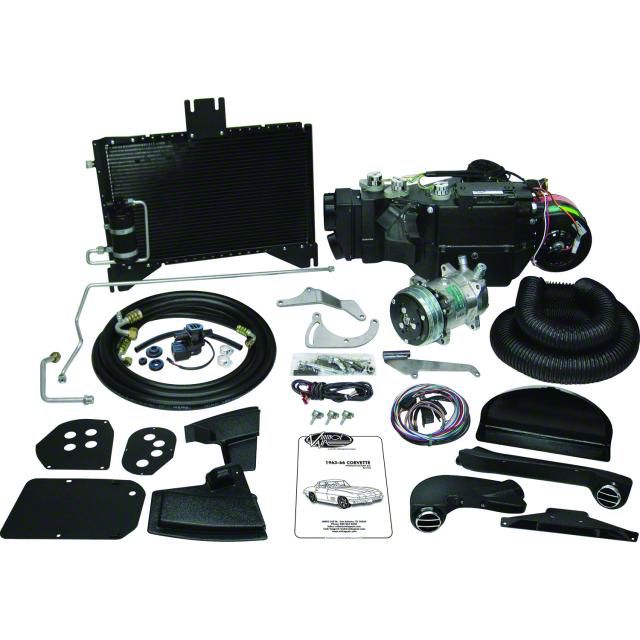

1963-1965 Corvette Air Conditioning Kit Gen IV Vintage Air Small Block wo/Factory AC

0% of 100
0  Reviews Add Your Review
$1,499.99 Kit
Corvette, 1963 thru 1965 View More
Product Details
Individual Rotary Electronic Controls For Electronic O... View More
Availability: Ships Direct From Manufacturer
  • Individual Rotary Electronic Controls For Electronic Operation
  • Micro-Processor Controlled Coil Temperature Monitor.No Capillary Tube To Install
  • Separate High Capacity Heat And Cool Coils
  • Aluminum Plate/Fin A/C Coil (Most Efficient Evaporator Design Available)
  • Blend Air Door For Instant Temperature Adjustment
  • Steel Firewall Cover Plate
  • Positive Shut Off Solenoid Operated Heater Control Valve In Max A/C
  • Compressor Mount On Passenger Side
  • 1963 With Driver Side Compressor Requires Bracket P/N 25-284882
  • NOTE: This unit does NOT include engine pulleys.  You must determine if you have enough belt grooves on your water pump pulley and crank shaft pulley to add and operate the AC system. Steel and billet pulleys are available at an additional cost. Cars with factory AC should have enough grooves, but it should be verified.

The Gen IV™ is Vintage Air's most powerful and intelligent climate control system. Gen IV systems utilize our exclusive fully electronic microprocessor control servomotor drives to eliminate cables or vacuum connections. Separate high capacity copper parallel-flow heat coil and aluminum plate and fin cooling coils provide outstanding performance and instant temperature adjustments. Our new Corvette SureFit ™ system includes a three individual rotary controls that install in the stock dash location. Additional features include variable blower speed and dash/floor/defrost blend. SureFit ™ Systems are engineered specifically for each vehicle application and require minimal alteration to the vehicle for installation


The Short And Long Of Chevy Water Pumps

Chevy Corvette mechanical short style water pumps measure 5-5/8” high from the shaft down with the pilot shaft diameter measuring 5/8". Long style Chevy Corvette water pumps measure 7” high from the shaft down, and the pilot shaft diameter was 5/8" as well. Do not mix and match pulleys from short and long water pump engines because this will cause pulley misalignment. An easy way to find out what style you have while your pump is still installed on the engine is to try to stick your hand between the water pump and timing chain cover. If you can slip your fingers in-between you have a long, if not you have a short.

1963-65 Corvette Vintage Air kit adds comfortable air conditioning to your Corvette

Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit
More Information
Alt. # 59420
Brand Vintage Air
Availability Ships Direct From Manufacturer

Products from the same brand

Make / Model Series Body Notes Year
Make / Model Chevrolet Corvette Series Body Notes Year 1963, 1964, 1965
Make / Model Chevrolet Corvette Stingray Series Body Notes Sting Ray Convertible Year 1963, 1964, 1965
Make / Model Chevrolet Corvette Stingray Series Body Notes Sting Ray Sports Coupe Year 1963, 1964, 1965
