FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self Tuning Fuel Injection System; Matte Black (Universal; Some Adaptation May Be Required)
Item EK-67-394703-1
Coupon Added
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- 2.5 Bar Internal MAP Sensor _x000D_
- Suitable For Up To 1200hp _x000D_
- 8 Flow Matched Injectors _x000D_
- 2 Fan Control _x000D_
- Blower And Turbo Ready _x000D_
- Support For Nitrous _x000D_
- Boost And Nitrous Timing _x000D_
- Ignition Timing Control _x000D_
- Built-In Pressure Regulator _x000D_
- Air/Fuel Ratio Tuning _x000D_
- Pro-Tuning Laptop Software _x000D_
- Matte Black Finish _x000D_
- 2 Die-Cast Throttle Body _x000D_
- 1 O2 Bung Kit _x000D_
- 1 Hand-Held Controller _x000D_
- 1 CTS Sensor _x000D_
- 1 Hand-Held Controller Cable _x000D_
- 1 CTS Adapter _x000D_
- 1 Windshield Mount _x000D_
- 1 Mini USB Cable _x000D_
- 1 4+2-Pin Connector _x000D_
- 2 Return Plug _x000D_
- 1 O2 Sensor _x000D_
- 1 Gasket Kit _x000D_
- Injection Style Throttle Body _x000D_
- Timing Control Compatible Yes _x000D_
- Power Adder Compatible Yes _x000D_
- Power Adder Type Boost/Nitrous Oxide _x000D_
- ECU Included Yes _x000D_
- Fuel Pump Included No _x000D_
- Transmission Controller Included No _x000D_
- Metering Style Speed Density (MAP-N) _x000D_
- Throttle Body Mounting Flange Dual 4-Barrel Square Bore _x000D_
- Venturi Quantity 8 _x000D_
- Venturi Diameter 43 mm _x000D_
- Airflow Rate 1700 CFM _x000D_
- Throttle Body Material Cast Aluminum _x000D_
- Throttle Body Finish Satin Black _x000D_
- Injectors Included Yes _x000D_
- Injector Size 80 lb/hr _x000D_
- Calibration Module Included Yes _x000D_
- Wiring Harness Included Yes _x000D_
- Oxygen Sensor Included Yes _x000D_
- Fuel Pressure Regulator Included Yes _x000D_
- MAP Sensor Included Yes _x000D_
- IAT Sensor Included Yes _x000D_
- TPS Sensor Included Yes _x000D_
- Quantity Sold Individually _x000D_
- Fuel Type Alcohol, Gasoline, Methanol, Flex _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
High-Performance EFI System. The FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self Tuning Fuel Injection System; Matte Black delivers advanced fuel injection technology capable of supporting engines from 400hp up to 1200hp. Designed for use with dual quad manifolds and compatible with power adders such as blowers, turbos, and nitrous oxide, it simplifies tuning and improves performance with its self-tuning capability. This system is essential for maximizing horsepower and achieving precise fuel management in high-output engines.
_x000D__x000D_Construction and Appearance. Featuring two die-cast throttle bodies made from cast aluminum with a satin black finish, this EFI system is built for durability and style. The kit includes flow-matched injectors and all necessary sensors and hardware, including a built-in pressure regulator and a 2.5 BAR MAP sensor. The matte black design ensures a sleek appearance suitable for high-performance applications.
_x000D__x000D_Installation. Installation is moderately straightforward with bolt-on compatibility for popular dual quad and tunnel ram manifolds, requiring no drilling in most cases. The system fits directly onto existing 2x4 blower plates or can be side-mounted with custom linkages for versatile configuration options.
_x000D__x000D_Warranty. This EFI system comes with a 3-year limited warranty to provide long-term reliability and peace of mind.
_x000D__x000D_Application. Fits universal dual quad intake manifold setups; some adaptation may be necessary.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box

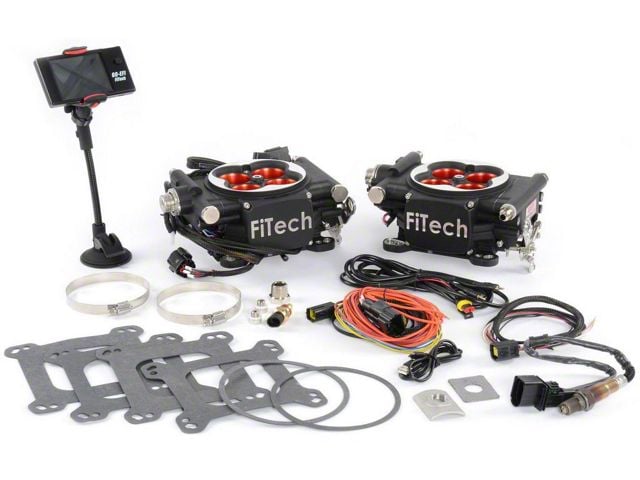

What's in the Box
- (2) Die-cast throttle body.
- (1) O2 bung kit.
- (1) Hand-held controller.
- (1) CTS sensor.
- (1) Hand-held controller cable.
- (1) CTS adapter.
- (1) Windshield mount.
- (1) Mini USB cable.
- (1) 4+2-Pin Connector.
- (2) Return plug.
- (1) O2 sensor.
- (1) Gasket kit.
