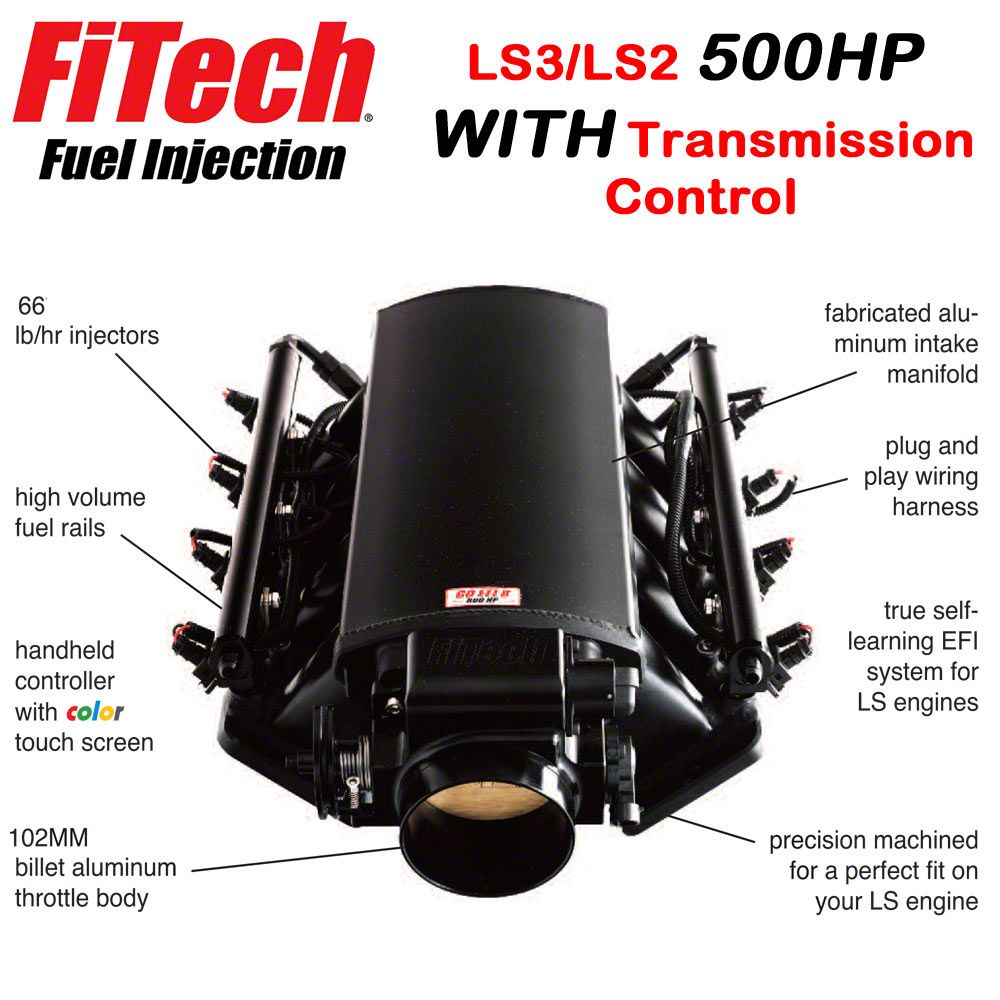

FiTech Fuel Injection Ultimate LS3/L92 500HP Intake Manifold Kit with Trans Control (Universal; Some Adaptation May Be Required)

Item EK-33-389143-1
Product Image
Coupon Added
Our Price

$2,107.00

Coupon
Apply 10% Discount
One coupon per order | Details
Military, Medical & First Responders $105.35 Available in EK Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

      • Weight 34 Lbs
      • Dimensions 29 × 17 × 11 In
      • Maximum Horsepower 500 HP
      • Injection Style Multi-Port
      • Timing Control Compatible Yes
      • Power Adder Compatible Yes
      • Power Adder Type Boost/Nitrous Oxide
      • ECU Included Yes
      • Fuel Pump Included No
      • Transmission Controller Included Yes
      • Metering Style Speed Density (Map-N)
      • Intake Manifold Included Yes
      • Intake Section Included Complete
      • Intake Material Aluminum
      • Intake Finish Black Anodized
      • Engine Block Deck Height Standard Deck
      • Multi-Port Fuel Rails Included Yes
      • Throttle Body Mounting Flange GM LS2 4-Bolt
      • Venturi Quantity 1
      • Venturi Diameter (Mm) 92 Mm
      • Airflow Rate (Cfm) 1250 Cfm
      • Throttle Body Material Cast Aluminum
      • Throttle Body Finish Black
      • Injectors Included Yes
      • Injector Size (Lbs/Hr) 36 Lbs./Hr.
      • Calibration Module Included Yes
      • Wiring Harness Included Yes
      • Oxygen Sensor Included Yes
      • Fuel Pressure Regulator Included No
      • MAP Sensor Included Yes
      • IAT Sensor Included Yes
      • TPS Sensor Included Yes
      • Quantity Sold As A Kit
      • Universal No
      • Fuel Type Alcohol, Gasoline, Methanol, Flex
      • Fits LS3/L92 engine applications with up to 500 HP output and complete transmission control

      Description

      Complete Self-Tuning System. The FiTech Fuel Injection Ultimate LS3/L92 500HP Intake Manifold Kit with Transmission Control is a comprehensive induction system designed for LS engines. It suits both do-it-yourself enthusiasts and professional tuners by providing an all-in-one solution that simplifies engine upgrades and enhances performance. This kit streamlines installation by including all necessary components, eliminating the need for sourcing separate parts or extensive wiring modifications.

      Construction and Appearance. Constructed primarily from aluminum, the intake manifold features a durable black anodized finish for improved corrosion resistance and an attractive appearance. The throttle body is crafted from cast aluminum with a black finish, matching the intake manifold while ensuring strength and longevity under demanding conditions.

      Installation. Installation is straightforward and designed to minimize complexity, typically requiring no drilling. The kit includes all required parts to facilitate an efficient and reliable setup.

      Warranty. This kit is backed by a three-year limited warranty, giving you confidence in its quality and durability.

      Application. Designed for LS3/L92 engine applications up to 500 HP, it includes integrated transmission control for a turnkey upgrade solution.

      FiTech Fuel Injection 70012
