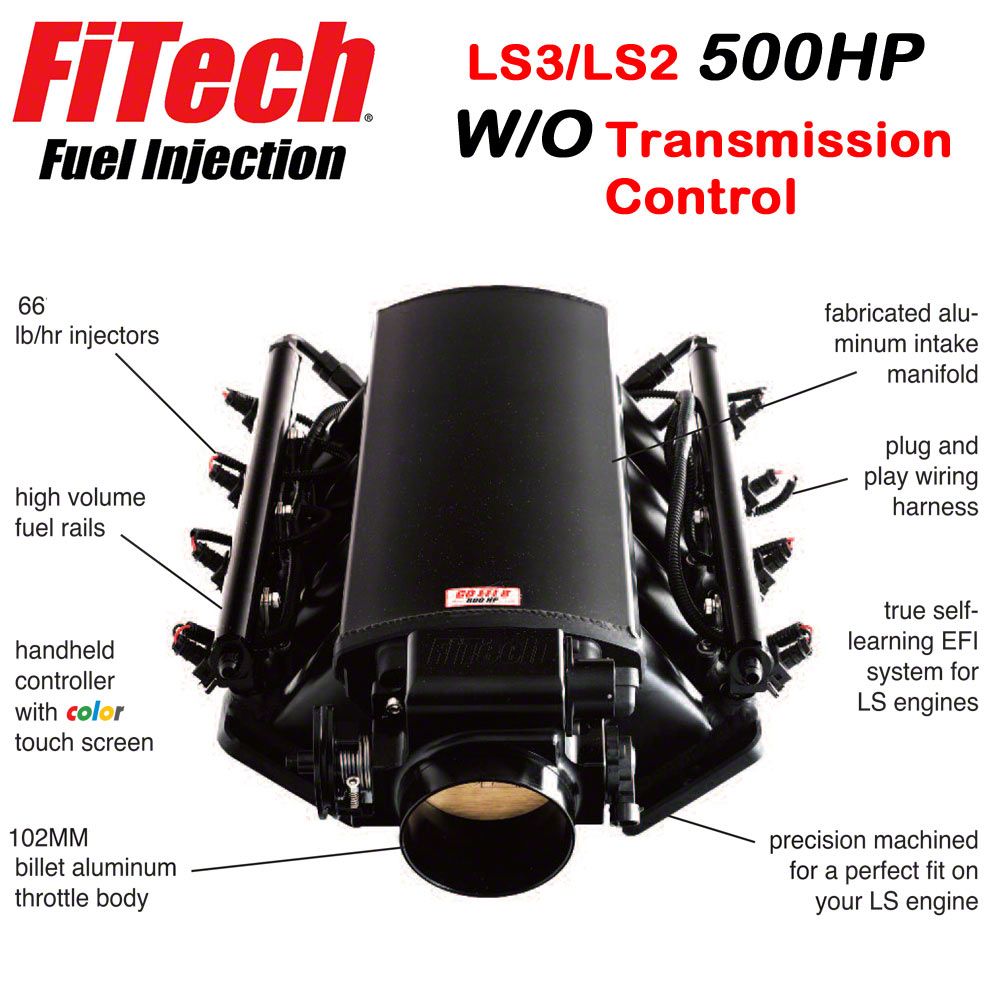

FiTech Fuel Injection Ultimate LS3/L92 500HP Intake Manifold Kit (Universal; Some Adaptation May Be Required)

Item EK-33-389142-1
Product Image
Coupon Added
Our Price

$1,896.00

Coupon
Apply 10% Discount
One coupon per order | Details
Military, Medical & First Responders $94.80 Available in EK Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

      • Weight 34 Lbs
      • Dimensions 29 × 17 × 11 In
      • Maximum Horsepower 500 HP
      • Injection Style Multi-Port
      • Timing Control Compatible Yes
      • Power Adder Compatible Yes
      • Power Adder Type Boost/Nitrous Oxide
      • ECU Included Yes
      • Fuel Pump Included No
      • Transmission Controller Included No
      • Metering Style Speed Density (Map-N)
      • Intake Manifold Included Yes
      • Intake Section Included Complete
      • Intake Material Aluminum
      • Intake Finish Black Anodized
      • Engine Block Deck Height Standard Deck
      • Multi-Port Fuel Rails Included Yes
      • Throttle Body Mounting Flange GM LS2 4-Bolt
      • Venturi Quantity 1
      • Venturi Diameter (Mm) 92 Mm
      • Airflow Rate (Cfm) 1250 Cfm
      • Throttle Body Material Cast Aluminum
      • Throttle Body Finish Black
      • Injectors Included Yes
      • Injector Size (Lbs/Hr) 36 Lbs/Hr
      • Calibration Module Included Yes
      • Wiring Harness Included Yes
      • Oxygen Sensor Included Yes
      • Fuel Pressure Regulator Included No
      • MAP Sensor Included Yes
      • IAT Sensor Included Yes
      • TPS Sensor Included Yes
      • Quantity Sold As A Kit
      • Fuel Type Alcohol, Gasoline, Methanol, Flex
      • Fits Universal; Some Adaptation May Be Required

      Description

      Complete Fuel Injection System. The FiTech Fuel Injection Ultimate LS3/L92 500HP Intake Manifold Kit is an all-in-one self-tuning induction system designed to upgrade LS engines efficiently. It provides everything needed for installation, optimizing engine management with modern EFI technology.

      Durable and High-Quality Construction. Crafted from aluminum with a black anodized finish, the intake manifold and related components offer robust durability and a sleek appearance. The system includes a cast aluminum throttle body and multi-port fuel rails designed for reliable performance.

      Installation Considerations. This kit is designed for universal fitment to LS3/L92 engines; however, some adaptation may be required depending on the specific setup or configuration. It is suitable for both DIY enthusiasts and professional tuners seeking to upgrade or complete their engine build.

      Warranty Coverage. This product includes a 3-year limited warranty for added peace of mind regarding its quality and reliability.

      Application. Fits LS3/L92 engines universally; some adaptation may be required for certain setups or configurations.

      FiTech Fuel Injection 70011
