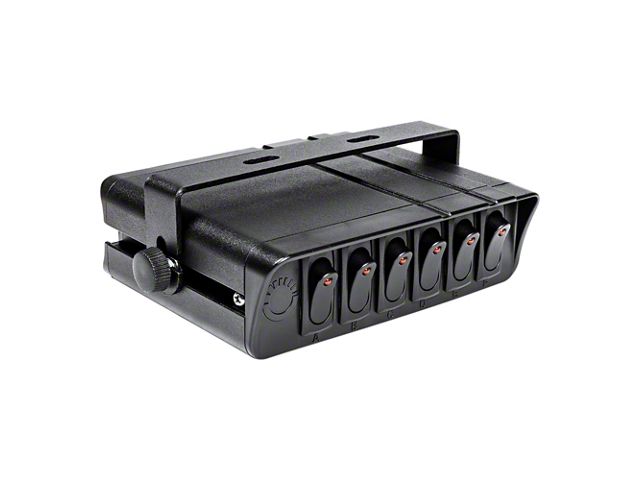

True Mods 6-Way SPST Switch Box; 40 Amp (Universal; Some Adaptation May Be Required)

Name: True Mods 6-Way SPST Switch Box; 40 Amp (Universal; Some Adaptation May Be Required)
Brand: True Mods
SKU: EK-33-933775

Item EK-33-933775

Eckler's no longer carries the True Mods 6-Way SPST Switch Box; 40 Amp (Universal; Some Adaptation May Be Required). Please check out 1967-1969 Chevrolet Camaro Electrical for an updated selection.

Shop Owners Save More! Sign up for our dealer program

Join For FREE

Product Information

Features, Description, Q&A

Features

Max 15A Per Switch
Total Box Max 40A (2 X 20A/Circuit)
Thick Gauge Color-Coded Wires
Durable Aluminum Housing
Low Profile Mounting Bracket
One Ground Wire Per Circuit
Color-Coded Wires With Corresponding Labels
Backlit Rocker Switches
1 Year Warranty
IP50 Protection Rating
Red Indicator Light Color
Pigtail Connector Type
Bracket Mounting Type
Fasteners Included For Mounting
Operating Temperature From -20°C To +85°C
Waterproof Design
Length 5.38 Inches
Width 6.50 Inches
Height 1.63 Inches
Tinned Copper Terminal Material
6 Prong Terminals
Single Throw Switch Type
Wire Leads Terminal Type
Nylon Actuator Material
Rocker Actuator Type
Indicator Light Included
Max Switching DC Voltage 12V
Dielectric Strength AC 1500V For 1 Minute
Contact Resistance Less Than 50 Milliohm
Insulation Resistance Greater Than 100 Mohm At 500V DC
Fits Universal Applications; Some Adaptation May Be Required

Description

SWITCH BOX CONTROL. The True Mods 6-Way SPST Switch Box; 40 Amp is designed to provide enhanced control over your vehicle’s aftermarket electrical systems. It manages up to six separate circuits with individual on/off switches rated at 15 amps each, ideal for powering compressors, lighting, or warning systems. This product ensures safe and efficient power distribution in rugged applications.

CONSTRUCTION AND APPEARANCE. Housed in a durable aluminum casing, the switch box offers robust protection against damage. Thick gauge, color-coded wires with clear labels simplify installation and wiring. The sleek design includes backlit rocker switches for easy visibility and a low-profile mounting bracket that integrates seamlessly into vehicle interiors.

INSTALLATION. Installation is straightforward, featuring color-coded wires and labels that reduce wiring complexity. The included mounting bracket provides secure attachment without the need for advanced tools or extensive modification, making the process user-friendly.

WARRANTY. This switch box is backed by a 1-year warranty, ensuring quality and reliability.

APPLICATION. Designed for universal applications with some adaptation possibly required, allowing integration into a wide range of vehicles and aftermarket setups.
