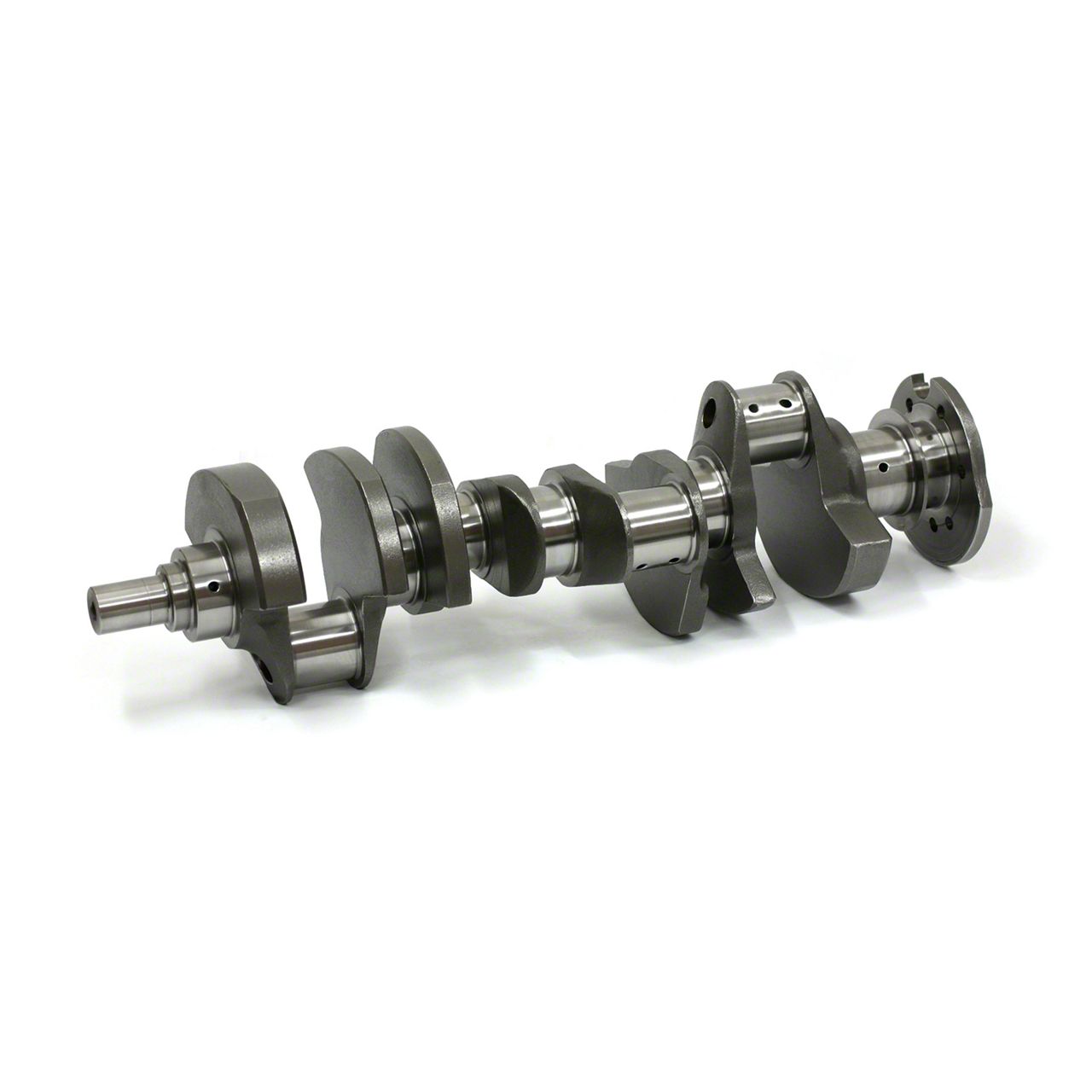

Speedmaster 350 C.I. Small Block Forged Steel Crankshaft; 4-Inch Stroke; 2-Piece Style Rear Main

Specs
Brand: Speedmaster
Part Number: PCE276.1017
Part Type: Crankshaft
Product Line: 4340 Forged Steel
Rear Main Seal Style: 2-piece
Engine Stroke (in): 4.000 in.
Crankshaft Material: Forged 4340 Steel
Engine Balance: Internal
Lightened: No
Requires Narrow Bearings: See notes below
Rod Bearings Included: No
Main Bearings Included: No
Rod Journal Diameter (in): 2.100 in.
Main Journal Diameter (in): 2.449 in.
Minimun Rod Length (in): 6.000 in.
Balancer Bolt Thread Size: Standard
Crankshaft Snout Style: Standard
Quantity: Sold individually.

Notes: Check the bearing to crank radius clearance.
Rod bearings may need to be chamfered or alternatively use narrow rod bearings.
Tool: Stroker Combinations

Description
Speedmaster forged standard weight crankshafts are designed for street or race engines with substantially increased horsepower.
Speedmaster crankshafts are precision-ground, heat-treated, shot-peened, inspected, and micro-polished for superior tolerance control.
Speedmaster crankshafts are also nitride-hardened for superior wear resistance, have straight-shot and chamfered oil holes, and feature lightening holes in all rod throws.
These crankshafts also have a large radius on all journals for improved strength and wear resistance.
