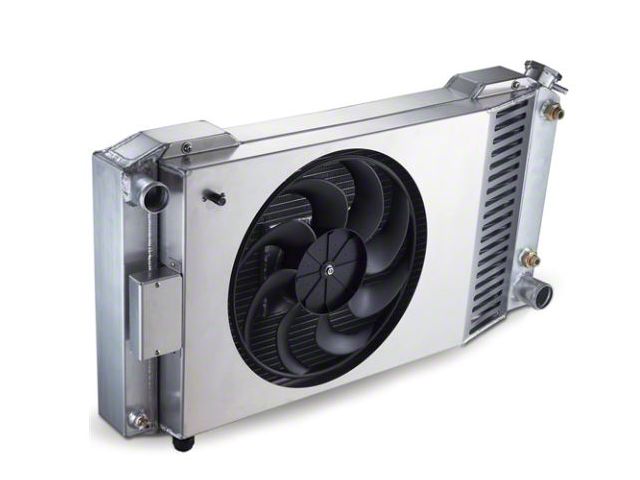

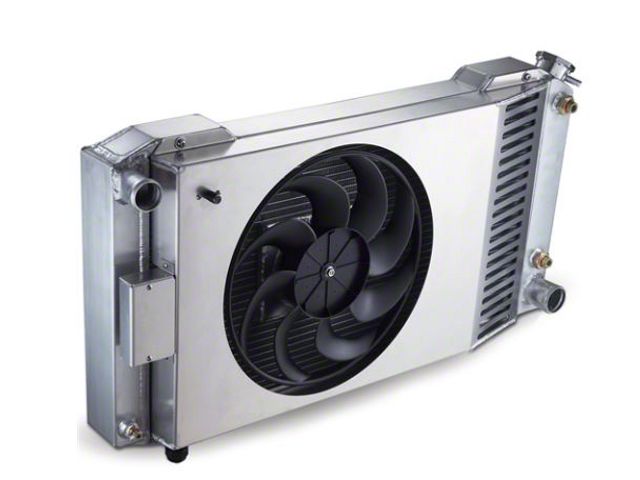

Slim-Fit Radiator System Universal Series 23" Core
- Radiator & Shrould Less Than 4" Thick
- Integrated Radiator/Shroud/Fan System
- Adjustable Thermostat
- 100% Fabricated Aluminum Tanks
- Hybrid Extruded Tube Core Technology
- Billet Aluminum Filler Neck
- High-Capacity Overflow Tube
- Patented Innovation and Design
- Core Height 23 inch
- Core Thickness 2.4 inch
- 1605 CFM Fan
- Inlet Location Driver Side
- Shroud Included
- Manual Transmisson
PROFORM is upending the radiator industry with the introduction of its new Slim-Fit Radiator System! No more cobbling together a core, a fan, possibly a shroud, and gobbling up 8" of valuable front-to-back under-hood space, sometimes leading to clearance problems.
With revolutionary engineering we flipped the motor around so instead of hanging on the outside, it's integrated directly into a uniquely designed core made with state-of-the-art brazing technology (with no meaningful cooling compromise)
The core itself is a hybrid combination of traditional duel 1" tubes, and full core width extruded tubes.
Combine this with a high-performance fan blade inserted into a smooth aluminum shroud, the result is the industry's thinnest, most streamlined look.
Every PROFORM Slim-Fit Radiator includes a shroud, electric fan with adjustable thermostat, wiring harness, and radiator cap.
Slim-Fit Radiator System Universal Series
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
|Availability||In Stock - Limited Quantity|
|Make / Model||Series||Body||Notes||Year|
|Make / Model Chevrolet Camaro||Series||Body||Notes||Year 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018|
