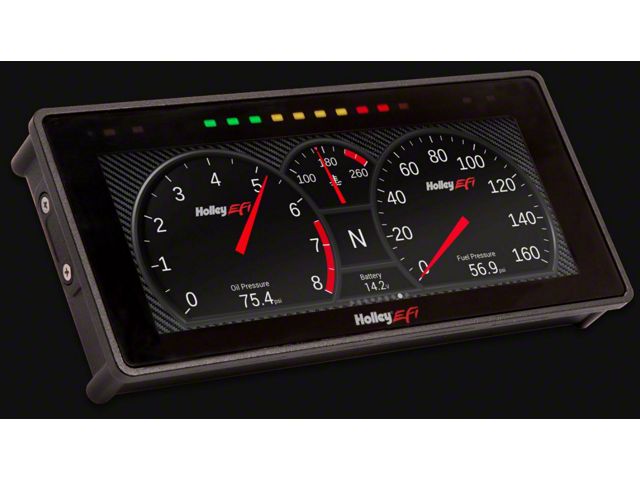

Holley EFI 6.86-Inch Pro Dash for Dominator/HP/Terminator ECU (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle
Item EK-33-859245-1
Our Price
$1,349.95
Military, Medical & First Responders
$67.50 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Customizable Gauge And Indicator Screens Programmable To Display Any Parameter From Holley EFI System
- Integrated 10-LED Shift Light
- Two Programmable LEDs On The Top Left And Two On The Top Right
- Screen Size 6.86 Inches
- 1280x480 Resolution With Capacitive Touch Screen And Low Glare
- Compatible With Terminator X, HP, Dominator, Sniper 1 Mizu CAN, And Sniper 2 M8 CAN Systems
- Plug-And-Play Display Support For Dominator, HP, Terminator X, And Sniper EFI (Not Compatible With Sniper 2)
- Monitors Up To 238 Real-Time Values Including RPM, TPS, And Boost
- Includes 34-Pin Connector With 13 Multi-Configurable Inputs And 4 Ground Switched Outputs
- Built-In GPS With Odometer Function
- Weatherproof Aluminum Housing
- Expandable Storage Via USB
- User Definable Channel Alarms And Warnings
- Supports USB Keyboard And Mouse Functionality For Setup
- Weight Is 1.2 Pounds
- Real-Time ECU Tuning For HP And Dominator ECUs
- Fits Universal; Some Adaptation May Be Required
Description
Advanced Digital Dash. The Holley EFI 6.86 Inch Pro Dash offers a versatile and fully customizable digital dashboard solution for real-time monitoring of essential engine parameters. It enables users to display a wide array of performance data, enhancing the driving and tuning experience. Optimized for motorsports applications, this dash delivers critical engine and vehicle information directly from Holley EFI systems.
Construction and Appearance. Featuring a weatherproof aluminum housing, the dash includes a high-resolution 6.86-inch capacitive touchscreen with low-glare, high-brightness, and high-contrast display properties. The bezel is finished in black to complement programmable face and font colors, providing a sleek and professional look.
Installation. Installation is straightforward with a plug-and-play connection and a 34-pin wiring harness included.
Application. Specifically designed to fit Universal; Some Adaptation May Be Required.
Holley EFI 553-112
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
What's in the Box
- (1) Pro Dash 6.86? display unit.
- (1) 34-pin CAN/power harness.
- (1) Male/female 4? CAN/Power extension harness.
- (1) CAN terminator.
- (1) 2-pin metripak-to-4? extension adapter.
- (2) Standard USB Type-C locking receptacles.
- (1) USB locking cable.
- (1) USB flash drive with user manual and file transfer capability.
- (1) GPS antenna.
- (1) SMA connector cable for GPS antenna connection.
- (1) Microfiber cleaning cloth.
- (1) Surface mount / flush mount template.
- (4) 10-32 tapped mounting holes.
- (4) 5/16? long 10-32 screws.
- (4) 1/2? 10-32 screws.
- (4) Vibration dampening grommets.
- (1) Double-sided VHB tape for GPS antenna permanent mounting.
- (1) TE Superseal 34-pin connector.
