Holley Hi-Ram EFI Intake Manifold with 95mm LS Throttle Flange (67-86 Small Block V8 Camaro)Find parts that fit my vehicle

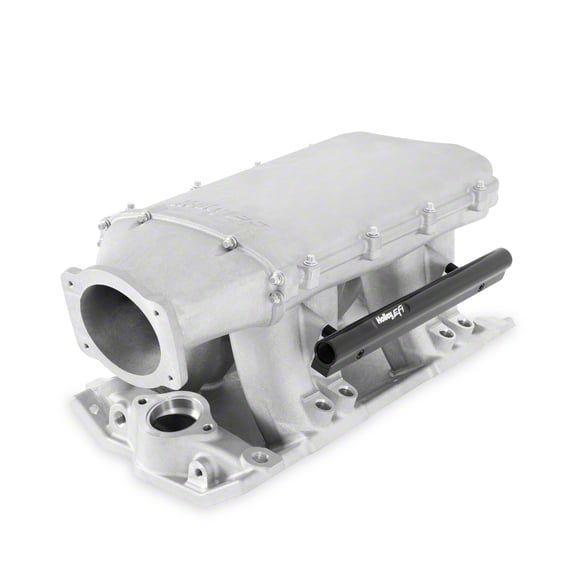

Name: Holley Hi-Ram EFI Intake Manifold with 95mm LS Throttle Flange (67-86 Small Block V8 Camaro)
Brand: Holley
SKU: EK-33-919436
Price: 1065.95 USD
Availability: InStock

Item EK-33-919436

Our Price

-0% $1,065.95 Was $1,065.95

Military, Medical & First Responders $53.30 Available in EK Cash Rewards.
Confirm Eligibility

Add to Cart

Save for later

Create a list

Name your new list Add to New List

Saved - View your saved items

We're sorry. We couldn't save this product at this time.

Shop Owners Save More! Sign up for our dealer program

Join For FREE

Product Information

Features, Description, Q&A

Features

Small Block Chevy Hi-Ram Intake Manifold Front-Feed With 95mm LS 4-Bolt Throttle Body Flange
Rated For A Power Band Of 1500-8000 RPM
Black Anodized EFI Fuel Rails Machined For -8AN O-Ring Fittings Included
Coolant Outlet Uses Standard Small Block Chevy Thermostat Housing Flange With (1) 1/2 NPT And (2) 3/8 NPT Coolant Ports
Compatible With Drive-By-Wire Or Cable Actuated GM Gen IV LS 4-Bolt Throttle Bodies
Requires Early Type GM Or Small Cap MSD Or Holley Distributors; Not Compatible With HEI Distributors
Throttle Cable Bracket Supplied
Plenum Top Gasket Type Is 3/32” Round O-Ring Cord
MAP Sensor Port Compatible With GM Gen IV LS MAP Sensor With Additional Provisions For 1/8 NPT, 1/4 NPT, And 3/8 NPT Fittings
Hood-Height Friendly Hi-Ram Variation Compatible With OE Hoods For Gen 1, 2, & 3 Camaros And Firebirds
Available In Traditional Hi-Ram 105mm Or Hood-Height Friendly 95mm Front-Feed Plenum Layouts
Cast 356-T6 Aluminum Construction With Natural Satin As-Cast Aluminum Finish
Designed For 1955-86 265-400 Gen 1 Chevy Engines With Standard Intake Manifold Flange Configuration
Not Designed For Raised Intake Port, 18 Degree, Or L31 Vortec Type Cylinder Heads
Port Flange Openings Are 1.95” Tall X 1.25” Wide, Uses Mr. Gasket Intake Manifold Gasket #5281
Fits 1967-1986 Small Block V8 Camaro

Description

Performance Enhancement. The Holley Hi-Ram EFI Intake Manifold with 95mm LS Throttle Flange is engineered to optimize engine airflow and raise horsepower output for Small Block Chevy engines. It provides an upgraded, front-feed throttle body design compatible with LS components, making it ideal for enthusiasts seeking improved throttle response and power delivery. This manifold supports both drive-by-wire and cable throttle systems, enhancing versatility.

Construction and Appearance. Crafted from durable cast 356-T6 aluminum, this intake manifold ensures strength and heat resistance while maintaining a lightweight profile. Its natural satin as-cast finish offers a clean, performance-oriented look without the premium cost of billet manifolds, combining functionality with attractive aesthetics suitable for engine bays requiring hood clearance.

Installation. Installation is straightforward for experienced enthusiasts. It is designed to fit commonly found Small Block Chevy engines without the need for drilling or extensive modifications. It requires early GM or small cap MSD or Holley distributors and replaces stock manifolds cleanly for smoother upgrade integration.

Warranty. This intake manifold includes a manufacturer's limited 90-day warranty covering material or workmanship defects.

Application. Specifically designed to fit 1967-1986 Small Block V8 Camaros, this manifold accommodates standard intake flange configurations and is not compatible with raised port cylinder heads, 18-degree heads, or L31 Vortec types. It is engineered for use with Gen 1 engines maintaining OE hood clearance requirements.

Holley 300-951
