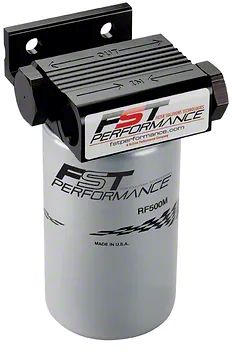

FST Performance FloMax500 Fuel Filter System (Universal; Some Adaptation May Be Required)

The RPM500 is a compact, high flow/low restriction system that filters down to 3 microns, unheard of in the marine/performance/racing industry.

Overall Compact Size: 8” tall x 3 ¾” wide x 5” deep
Weighs: 45 oz
Base/Manifold: Black, Billet 6061-T6 aluminum base/manifold. Not a casting. 'New' stainless-steel filter adapter. Mounting holes: 7/16" - 2.25 inches center to center.
Stainless steel filter adaptors
Flow: 315 gallons per hour (1,800 - 1,900 lbs per hour)
Filtering: 3 Micron FloMax™ media (gasoline-methanol-ethanol compatible!)
Filter media surface: 579 sq in!! FloMax™ enhanced water-stripping cellulose.
Water Separation: Actually separates water to the “quiet” zone for water & heavy contaminates to settle. Not water blocking (which actually blocks the fuel).
Burst: 250 psi (ideal for fuel injection or carburetor)
​
Ports: -12 A/N (ORB). Multiple (2- IN & 2- OUT) for the ability to add accessories like fuel pressure gauges, etc.
Replacement FloMax™ spin-on type filter: (# RF500M) for ease of changing. Nothing to service or clean out, eliminating the chance for fuel system contamination.
