FiTech Fuel Injection Ultimate LS Standalone ECU with Trans Control (Universal; Some Adaptation May Be Required)
Item EK-33-394615-1
Coupon Added
Our Price
$1,322.20
Coupon
Military, Medical & First Responders
$66.11 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Ultimate LS Standalone ECU With Transmission Control
- Compatible With LS Gen III And IV Engines Using Crank And Cam Sensors
- Self-Learning ECU With Touch-Screen Controller For Easy Setup And Configuration
- Supports Factory Intake, Injectors, And Cable Operated Throttle Body
- Electronic Transmission Control For GM 4L60, 4L65, 4L85, Or 4L80 Automatic Transmissions
- Controls Shift Points, Shift Firmness, And Downshifts Automatically
- Includes 3 BAR MAP Sensor Supporting Up To 30 PSI Boost For Power Adder Applications
- Sequential Fuel And Spark Control With Individual Cylinder Trim
- Compatibility With 24X And 58X Crank And Cam Sensor Signals
- Two Programmable Fan Control Outputs
- Tachometer Output Driver Suitable For Most Tachometers (5V)
- Output Driver Compatible With Most Speedometers
- Works With Car And Truck Coils
- On-The-Fly Programmable Target AFR And Ignition Timing
- Fuel Pump Relay Output
- Knock Sensor Control Included
- Custom Wire Harness Utilizing Factory Coil Pack Sub Harness
- Stainless Steel O2 Sensor Bung Kit (Clamp Or Weld On)
- Does Not Support Drive-By-Wire Throttle Bodies Or Variable Valve Timing Without Modifications
- Not Legal For Use On Emission Controlled Vehicles

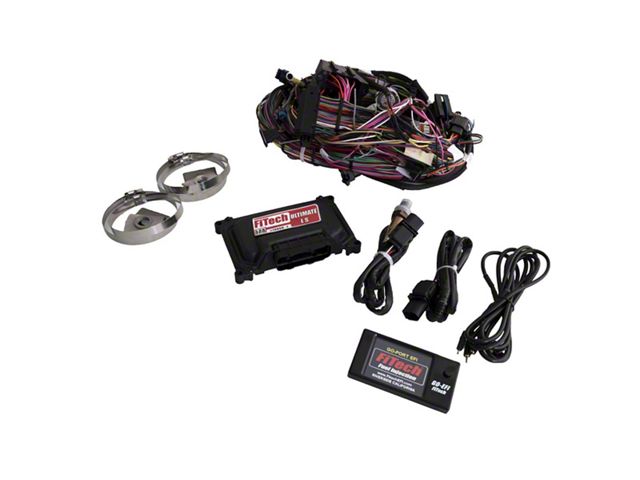

- Includes LS ECU, Wiring Harness, Hand-Held Touch Screen Controller With Mount, MAP Sensor, O2 Sensor, And Oxygen Sensor Bung
- Weight Approximately 11.5 To 13 Pounds
- Fits Universal; Some Adaptation May Be Required. Not Compatible With Drive-By-Wire Throttle Bodies Or Variable Valve Timing Engines Without Modification.
Description
Standalone Engine Management. The FiTech Fuel Injection Ultimate LS Standalone ECU with Transmission Control is a complete engine management solution designed to replace OEM computers and harnesses on LS Gen III and IV engines. It features self-learning capabilities and electronic transmission control, making it ideal for LS swap projects. This ECU optimizes engine and transmission performance through precise management of fuel, spark, and shift parameters.
Construction and Appearance. The ECU comes in a durable enclosure suitable for automotive use, paired with a custom plug-and-play wiring harness that interfaces with factory components. The kit includes a touchscreen controller with a color display mounted via a windshield bracket. The included O2 sensor bung kit is made of stainless steel for corrosion resistance and reliable performance.
Installation. Installation is designed to be straightforward with plug-and-play wiring harnesses reducing the need for complex wiring. Minor adaptation or modifications may be necessary depending on the vehicle, especially for mounting the O2 sensor bung, which may require drilling, welding, or clamping. The system integrates with existing factory crank and cam sensors as well as GM automatic transmissions with minimal adaptation required.
Warranty. This product includes a 3-year limited warranty.
Application. Fits universal LS Gen III/IV engines equipped with crank and cam sensors and GM 4L60, 4L65, 4L80, or 4L85 transmissions. Not compatible with drive-by-wire throttle bodies or engines with variable valve timing unless these systems are modified or removed.
FiTech Fuel Injection 70051
