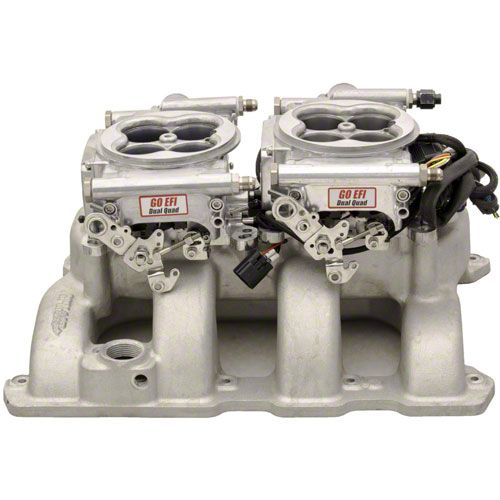

FiTech Fuel Injection Go EFI 2x4 Dual Quad 625HP Self Tuning Fuel Injection Master Kit; Bright Aluminum (Universal; Some Adaptation May Be Required)

Item EK-33-395089-1
Product Image
Our Price

$2,110.99

Military, Medical & First Responders $105.55 Available in EK Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

      • Weight 33 Lbs
      • Dimensions 25 × 19 × 12 In
      • Maximum Horsepower 625 HP
      • Injection Style Throttle Body
      • Timing Control Compatible Yes
      • Power Adder Compatible No
      • ECU Included Yes
      • Fuel Pump Included Yes
      • Transmission Controller Included No
      • Metering Style Speed Density (Map-N)
      • Intake Manifold Included No
      • Intake Section Included No
      • Throttle Body Mounting Flange Dual 4-Barrel Square Bore
      • Venturi Quantity 8
      • Venturi Diameter 43 Mm
      • Airflow Rate 850 Cfm
      • Throttle Body Material Cast Aluminum
      • Throttle Body Finish Polished
      • Injectors Included Yes
      • Injector Size 80 Lbs/Hr
      • Calibration Module Included Yes
      • Wiring Harness Included Yes
      • Oxygen Sensor Included Yes
      • Fuel Pump Style External Fuel Pump
      • Fuel Pressure Regulator Included Yes
      • MAP Sensor Included Yes
      • IAT Sensor Included Yes
      • TPS Sensor Included Yes
      • Quantity Sold As A Kit
      • Fuel Type Alcohol, Gasoline, Methanol, Flex
      • Fits Universal; Some Adaptation May Be Required

      Description

      DUAL QUAD EFI SYSTEM. The FiTech Fuel Injection Go EFI 2x4 Dual Quad 625HP Self Tuning Fuel Injection Master Kit; Bright Aluminum is a complete self-tuning throttle body EFI system designed to replace dual quad carburetors. It provides efficient fuel delivery and engine management for high-performance engines up to 625 horsepower, simplifying the upgrade path for popular manifolds without needing adapters.

      CONSTRUCTION AND APPEARANCE. Constructed from cast aluminum, the dual 4-barrel throttle bodies feature a polished bright aluminum finish that offers both durability and an attractive appearance. The kit includes high-quality fuel system components such as billet fuel filters and an EFI grade external fuel pump rated at 255 LPH for reliable performance.

      INSTALLATION. This kit bolts directly onto most commonly used dual quad manifolds, requiring no drilling or special adapters, making installation straightforward for experienced enthusiasts. Note that linkage is not included.

      WARRANTY. This product comes with a 3-year limited warranty for peace of mind and assured quality.

      APPLICATION. Designed to fit a universal range of engines producing up to 625 horsepower and capable of working with various fuel types including alcohol, gasoline, methanol, and flex fuel. Some adaptation may be required depending on specific manifold design and vehicle setup.

      FiTech Fuel Injection 31061
