Product Information
Features, Description, Q&A
Features
_x000D_- Bare Hydroformed Subframe
_x000D_- Single Adjustable Shocks with Installed Rebound Adjustment
_x000D_- Suitable for Small Block and LS Engines
_x000D_- Bolt-In Replacement for Original Stock Subframe
_x000D_- Features Stamped Main and Secondary Cross-Members for Structural Rigidity
_x000D_- Utilizes Unique Suspension Geometry for Improved Handling and Ride Quality
_x000D_- Designed for Street and Track Use
_x000D_- Compatible with Up to 10 Inch Wide Wheels Without Inner Wheel Well Modification
_x000D_- Hydroformed Frame Rails Provide Strength and Stiffness Through Low Temperature Forming
_x000D_- Subframe Ships Bare and Unassembled
_x000D_- Spring Rate of 550 Pounds Per Inch
_x000D_- Shock Type Is Single Adjustable with Rebound Adjustment
_x000D_- Spring Free Length of 8 Inches
_x000D_- Sway Bar Arms Are Black Powder-coated
_x000D_- Control Arms Are Black Powder-coated
_x000D_- Emission Code 4
_x000D_- Fits 70-81 Small Block V8/LS Camaro
_x000D_
Description

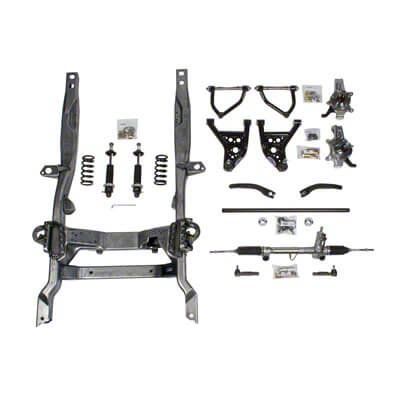

Detroit Speed's Hydroformed subframe is a bolt-in replacement for the original stock subframe. It improves the handling and ride quality by utilizing Detroit Speed's unique suspension geometry. It is the ONLY subframe in the aftermarket industry with hydroformed frame rails. The hydroformed frame rails feature strength and stiffness, precise quality and repeatability. Hydroforming preserves the steel's strength and stiffness because it is performed at low temperatures, unlike traditional high temperature processes which decrease material strength.Up to a 10in. wide wheel can be packaged without modification to the inner wheel wells. Both the main and secondary crossmembers are stamped for structural rigidity. SBC, BBC, LS1, LS2, and LS7 engines have been designed as a direct bolt-in into this subframe.Our subframe has been designed, engineered, and developed for the road and track. This subframe blends the benefits of current OEM technology and aftermarket performance into one product!The subframe is available uncoated and unassembled for your SBC, BBC, LS, or Pontiac engine. We also offer the subframe powdercoated satin black and assembled.Single Adjustable Shock:Includes all features of base shock with 'Detroit Tuned' valving plus installed rebound adjustment with the simple turn of a knob while providing excellent ride quality on the street.
