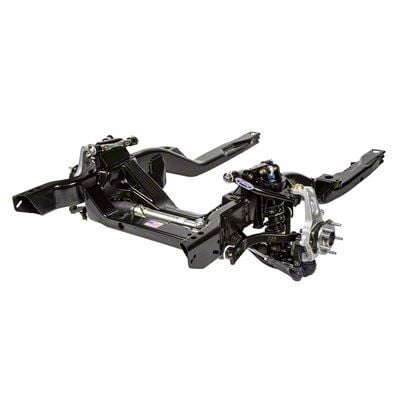

Detroit Speed Hydroformed Front Subframe with Double Adjustable Remote Shocks (67-69 Small Block V8/LS Camaro)Find parts that fit my vehicle

Item EK-33-918450
Product Image
Our Price

$11,490.95

Military, Medical & First Responders $574.55 Available in Eckler's Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Powder-coated Hydroformed Front Subframe With Double Adjustable Remote Shocks
        • _x000D_
      • Compatible With Small Block Chevrolet And LS Engine Swaps
        • _x000D_
      • Includes Proprietary Suspension Geometry For Improved Cornering Grip And Stability
        • _x000D_
      • Features ‘Detroit Tuned’ JRi Double Adjustable Remote Reservoir Shocks
        • _x000D_
      • Hydroformed Steel Rails For Superior Rigidity And Dimensional Accuracy
        • _x000D_
      • Stamped Main And Secondary Crossmembers To Reduce Flex And Enhance Steering Response
        • _x000D_
      • Optimized Rack-And-Pinion Steering Geometry For Precise Handling
        • _x000D_
      • Allows Clearance For 10” Wide Wheels Without Modifications
        • _x000D_
      • Full Bolt-In Installation Using OE-Style Mounting Points
        • _x000D_
      • Manufactured In The USA With Industry-Leading Quality Standards
        • _x000D_
      • Designed For Multiple GM Engine Platforms Without Cutting Or Welding
        • _x000D_
      • Spring Rate Of 550 Lb/In With An 8-Inch Free Length
        • _x000D_
      • Black Powder-coated Finish On Control Arms And Sway Bar Arms
        • _x000D_
      • Emission Code 4 Compliant
        • _x000D_
      • Fits 67-69 Small Block V8/LS Camaro
        • _x000D_

      Description

      Detroit Speed's front subframe is a bolt-in replacement for the original stock subframe. It improves the handling and ride quality by utilizing Detroit Speed's unique suspension geometry. It is the ONLY subframe in the aftermarket industry with hydroformed frame rails. The hydroformed frame rails feature strength and stiffness, precise quality and repeatability. Hydroforming preserves the steel's strength and stiffness because it is performed at low temperatures, unlike traditional high temperature processes which decrease material strength. Spring Rate: 550lbs/in Spring Free Length: 8inUp to a 10" wide wheel can be packaged without modification to the inner wheel wells. Both the main and secondary crossmembers are stamped for structural rigidity. SBC, BBC, LS1, LS2, and LS7 engines have been designed as a direct bolt-in into this subframe. Our subframe has been designed, engineered, and developed for the road and track. This subframe blends the benefits of current OEM technology and aftermarket performance into one product! Remote Canister Monotube Double Adjustable Shock: This DSE/JRI shock has all of the qualities of the double adjustable shock and incorporates a gas charged bladder to provide high frequency and low speed dampening control.

      Detroit Speed 032004-RDS
