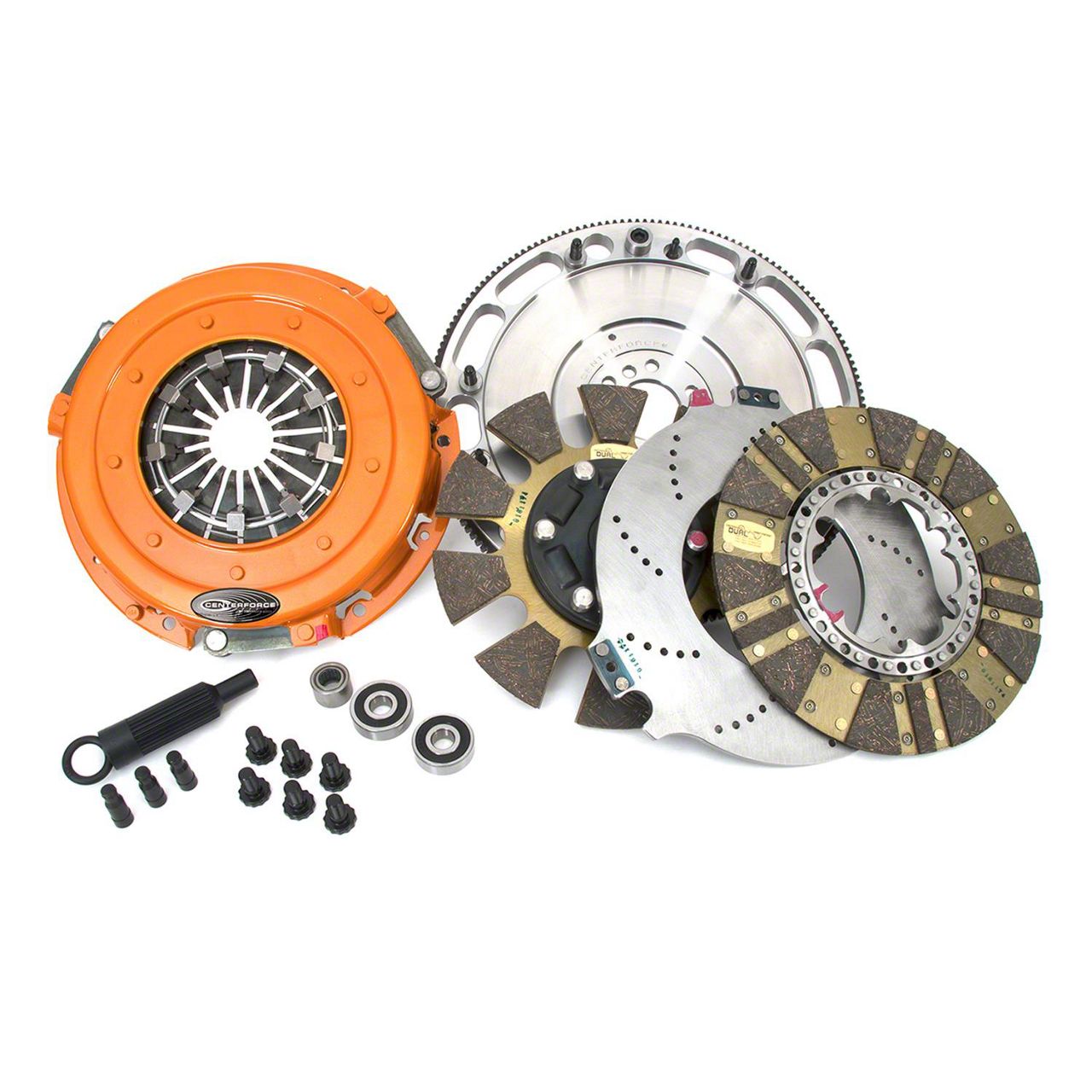

Centerforce DYAD DS Organic/Carbon Twin Disc Clutch Kit with Flywheel; 26-Spline (98-02 5.7L Firebird)Find parts that fit my vehicle
Item EK-75-907756
Our Price
$1,816.95
Military, Medical & First Responders
$90.85 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Centerforce DYAD DS 10.4 Twin Disc Clutch Developed For Vehicles Requiring 500 To 1300 Ft/Lbs Torque Holding Capacity At The Crank
- Pressure Plate Features Patented Centrifugal Weight System For Superior Clamp Load Over Stock
- Patented Ball Bearing Actuated Pressure Plate Provides Light Pedal Effort
- Discs Equipped With Segmented Organic/Carbon Composite Facings For Increased Holding Capacity
- Sprung And Dampened Drive Disc For Smooth Drivability
- Kit Includes Lightened Billet Steel Flywheel For Low Inertia And Quicker RPM Response
- Components Designed, Machined And Assembled In The USA
- Match Balanced Clutches Ready For Installation With Included ARP Fasteners
- Material Consists Of Billet Steel Flywheel, Nodular Iron Pressure Plate, Segmented Organic/Carbon Composite Friction
- Input Shaft Diameter Measures 1-1/8 Inches With 26 Splines
- Clutch Disc Diameter Is 10.4 Inches (264.2 MM)
- Disc Quantity: 2
- Disc Material Is Organic/Carbon Composite
- Disc Type Is Segmented Face, Sprung
- Includes Counterweight Assist
- Torque Capacity Is 1300 Ft/Lbs
- Pilot Bushing, Mounting Hardware, And Alignment Tool Included
- Installed Height Is 2.760 Inches
- Flywheel Crank Flange Register Measures 2.068 Inches
- 168 Tooth Gear
- Fits 98-02 5.7L Firebird
Description
Twin Disc Performance. The Centerforce DYAD DS Organic/Carbon Twin Disc Clutch Kit with Flywheel; 26-Spline is engineered to handle high torque applications ranging from 500 to 1300 ft/lbs. This kit improves clutch holding capacity and delivers smooth, responsive pedal feel and drivability, optimizing power transfer for demanding V8 engines.
Construction and Appearance. This clutch kit features a billet steel flywheel with nodular iron pressure plates and segmented organic/carbon composite friction faces, combining durability with reduced inertia for faster engine response. The components are precision machined and assembled in the USA, offering reliable, high-quality craftsmanship with a clean, engineered finish.
Installation. Installation is straightforward for experienced technicians; no drilling is necessary thanks to the included mounting hardware and alignment tools. The assembly arrives match balanced for easy, direct replacement in compatible vehicles.
Application. Designed specifically to fit the 98-02 5.7L Firebird, ensuring optimal compatibility and performance without modification required.
Centerforce 413614842
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
What's in the Box
- (1) DYAD DS & DYAD XDS Twin Disc Clutch Assembly
- (1) Clutch Specification Card
- (1) Component Diagram
- (1) Pilot Bearing
- (1) Flywheel
- (1) Flywheel to Crankshaft Bolts
- (1) Disc Alignment Tool
- (1) Drive Disc
- (1) Floating Disc
- (1) Floater Plate
- (1) Pressure Plate
- (3) Anti-Rattle Pins
- (3) Floater Drive Spools
- (6) Spacers
- (6) Pressure Plate Studs
- (6) Pressure Plate Nuts
5.0
Reviews of Centerforce Classic Drivetrain Products (1)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Firebird
- Formula - 98, 99, 00, 01, 02
- Trans Am - 98, 99, 00, 01, 02
