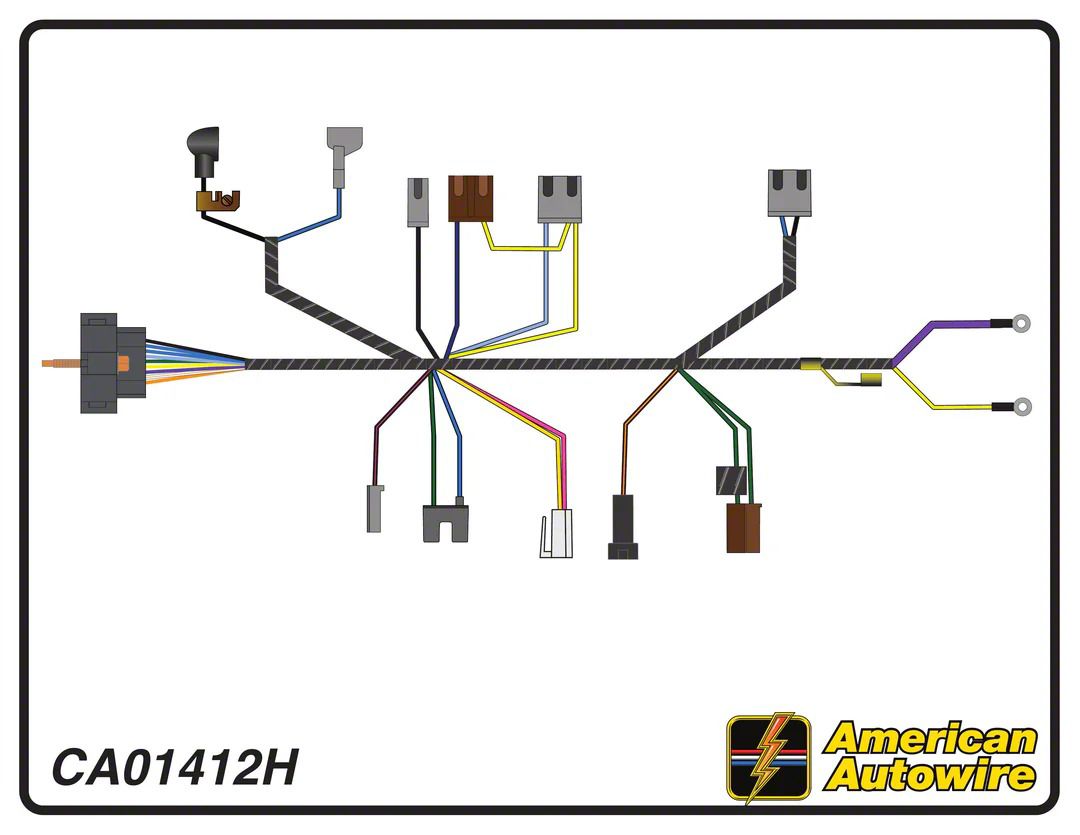

Factory Fit Engine Wiring Harness (1970 Big Block V8 Camaro w/ HEI Distributor & Manual Transmission)Find parts that fit my vehicle

Item EK-33-940969
Our Price

$454.99

Military, Medical & First Responders $22.75 Available in EK Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • Factory Fit Engine Harnesses Are Manufactured According To The Original General Motors Specifications
      • Each Part Number Is Fully Assembled, Taped And Ready To Install Upon Arrival
      • This Harness Will Plug Into The Firewall In The Factory Location
      • Will Follow Original Routing In The Engine Compartment
      • Combination Of The Engine And Front Light Harness Accomplish Most Functions Under The Hood Of An Early GM Vehicle
      • Modified For A 12 Volt HEI Ignition
      • Original Resistor Wire Replaced With Standard 12 Volt Feed
      • Includes Connector For A GM Large Cap Distributor
      • Connector End May Need To Be Replaced If Not Using GM Large Cap HEI Distributor
      • Some Pontiacs May Not Be Available As HEI Part Numbers Due To Resistance Wiring In Dash Harness
      • Engine Harness Usually Contains Wiring For Ignition System, Starter, Heater Blower, Temperature And Oil Pressure Sender Wires If Applicable
      • Some Vehicles Using Capillary Tube Omit Oil Pressure Circuit In Harness
      • Consult Factory Service Manual Or Sales Team For Circuit Confirmation
      • Fits 1970 Big Block V8 Camaro With HEI Distributor And Manual Transmission

      Description

      Engine Wiring Harness. The Factory Fit Engine Wiring Harness is a direct replacement wiring solution manufactured to original General Motors specifications. This harness ensures correct routing and proper connections for components under the hood, facilitating consistent operation of ignition, starter, and ancillary systems. It plays a critical role in restoring or maintaining the electrical integrity of early GM vehicles, specifically modified to support a 12-volt HEI ignition system.

      Construction and Appearance. The harness is fully assembled and taped for durability and ease of installation, finished with a protective tape wrap replicating the original factory appearance. It includes high-quality connectors, and the wire gauge and insulation are selected to meet the operational needs of the original equipment. The harness also provides a connector compatible with GM large cap distributors, ensuring a seamless electrical interface.

      Installation. Installation is straightforward with a plug-in design that aligns with the factory firewall connector and follows the original engine compartment routing. There is no need for drilling or modifications, allowing for a clean, factory-accurate installation experience.

      Application. This wiring harness is specifically engineered to fit the 1970 Big Block V8 Camaro equipped with an HEI distributor and manual transmission, ensuring proper electrical compatibility and functional integrity for this exact model and setup.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Camaro

      • Base - 70
      • RS - 70
      • SS - 70
      • Z28 - 70
