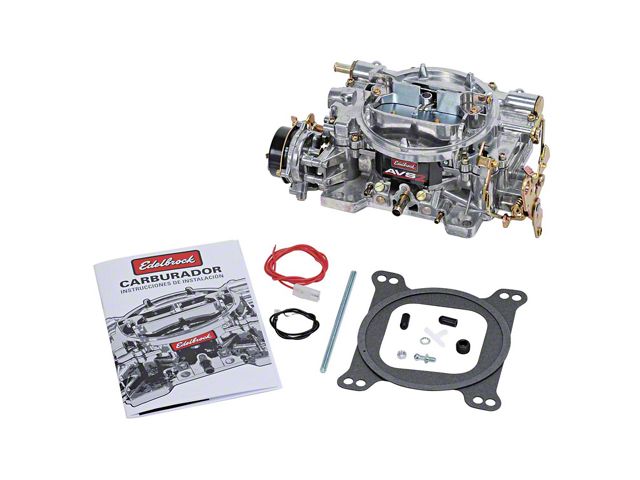

Edelbrock 800 CFM AVS2 del Carburetor Thunder Series (67-72 Camaro)Find parts that fit my vehicle

Item EK-33-852234-1
10 Reviews of Edelbrock
Our Price

$514.95

Military, Medical & First Responders $25.75 Available in Eckler's Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Universal Application
        • _x000D_
      • Series Avs2
        • _x000D_
      • Condition New
        • _x000D_
      • Metering Rod Size .065 X .052 In
        • _x000D_
      • Mounting Hole Quantity 8
        • _x000D_
      • Grade Type Performance
        • _x000D_
      • Gasket Or Seal Included Yes
        • _x000D_
      • Mounting Hole Diameter 0.355 In
        • _x000D_
      • Barrel Quantity 4 Barrel
        • _x000D_
      • Flange Type Square
        • _x000D_
      • Street Legal No
        • _x000D_
      • Secondary Jet Diameter 0.104
        • _x000D_
      • Secondary Venturi Diameter 1.630 In
        • _x000D_
      • Body Material Aluminum
        • _x000D_
      • Main Venturi Diameter 1.525
        • _x000D_
      • Body Height 3.25
        • _x000D_
      • Spacer Included No
        • _x000D_
      • Metering Rod Length 65 In
        • _x000D_
      • Bore Diameter Primary Bore 1.75; Secondary Bore 1.75
        • _x000D_
      • Spring Force 5" Hg (Orange)
        • _x000D_
      • Installation Notes Compatible With Ford Automatic Overdrive Transmissions Using Lokar Bracket SRK-4000; Not Calibrated For Or Compatible With Alcohol, Race, Or E85 Fuel; Use Of Alcohol Or E85 Will Damage Carburetor And Void Warranty; New Fuel Filter Required Between Fuel Pump And Carburetor To Maintain Warranty
        • _x000D_
      • Choke Type Electric
        • _x000D_
      • Finish Satin
        • _x000D_
      • Marine Approved No
        • _x000D_
      • Material Aluminum
        • _x000D_
      • CFM Rating 800 Cfm
        • _x000D_
      • Primary Jet Diameter 0.104
        • _x000D_
      • Fits 67-72 Camaro
        • _x000D_

      Description

      High-Performance Carburetor. The Edelbrock 800 CFM AVS2 Carburetor delivers superior fuel atomization and power for high-horsepower small- and big-block engines. Designed to provide smooth throttle response and EFI-like drivability, this carburetor is ideal for enthusiasts seeking enhanced performance and reliability.

      _x000D_

      Construction and Appearance. Constructed from durable aluminum, this carburetor features a satin finish that offers a sleek, professional look while providing corrosion resistance. The design incorporates advanced annular flow boosters calibrated for modern fuels and improved power delivery.

      _x000D_

      Installation. Installation is straightforward with no drilling required, compatible with specific Ford automatic overdrive transmissions when using the recommended Lokar bracket SRK-4000. Basic mechanical knowledge is needed to ensure proper tuning and fuel line setup. Note that this carburetor is not calibrated for or compatible with alcohol, race, or E85 fuel; use of these fuels will damage the carburetor and void the warranty. A new fuel filter is required between the fuel pump and carburetor to maintain the warranty.

      _x000D_

      Warranty. Comes with a 12-month warranty for assurance of quality and durability.

      _x000D_

      Application. Specifically fits 1967 to 1972 Camaro models, providing a direct-fit solution without modifications required for these vehicles.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.8

      Reviews of Edelbrock Classic Engine Products (10)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Camaro

      • Base - 67, 68, 69, 70, 71, 72
      • RS - 67, 68, 69, 70, 71, 72
      • SS - 67, 68, 69, 70, 71, 72
      • Z28 - 67, 68, 69, 70, 71
