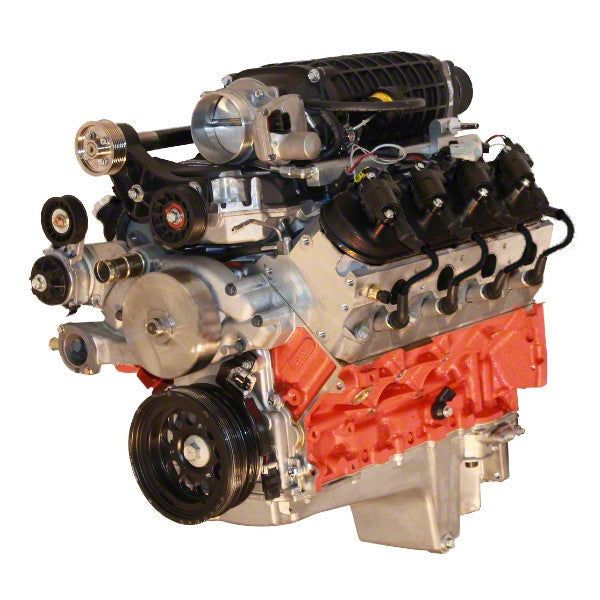

BluePrint Engines ProSeries LS 427 C.I. 800 HP Base Dressed Fuel Injected Supercharged Crate Engine

HP & Torque: 800 HP / 780 FT LBS
Compression Ratio: 11:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons
BLOCK:
OEM Block Machined in the USA!
6-Bolt Main
4.060" Bored to 4.069
1-Piece Rear Main Seal
ROTATING ASSEMBLY:
New Forged Crankshaft
4.125" stroke
Forged 6.125" connecting Rods
Forged Pistons
Internal Balance
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -PS8015
72cc chamber
2.165" intake/1.600" exhaust valves
259cc intake/102cc exhaust runners
CAM SPECS:
Roller
.624 intake .624 exhaust lift
239 Intake / 255 Exhaust duration
@ .050, 114-degree lobe sep.
IGNITION TIMING:
ECM supplied with calibration
Not capable of transmission control
Transmission controller required
ALSO INCLUDES:
2.3L Magnuson TVS Super Charger
Upgraded Mototron S107 Injectors
Electronic Fuel Injection
Coil Packs
Valve covers
Oil pan
Water Pump
Belt tensioner
arm
All sensors required for engine to run
Wiring harness
Gas pedal
Drive by wire throttle body
Timing cover
Spark plugs
Spark plug wires
Harmonic balancer
NOTES:
Not for use in pollution-controlled vehicles.
The Included LS controller package is for engine control only. Does not contain any transmission or body control. The ECU comes with calibration that is optimal for our engine, however, please note that vehicle parameters such as gearing, tire size, vehicle weight, air intake, headers, etc. may necessitate additional tuning once installed into your specific vehicle. The included ECU is unlocked for further refinement at your local dyno shop if required.
BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.

CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
