Aeromotive FourX Return-Type Fuel Control System for 3 to 4-Pump Systems (Universal; Some Adaptation May Be Required)

Item EK-33-927775

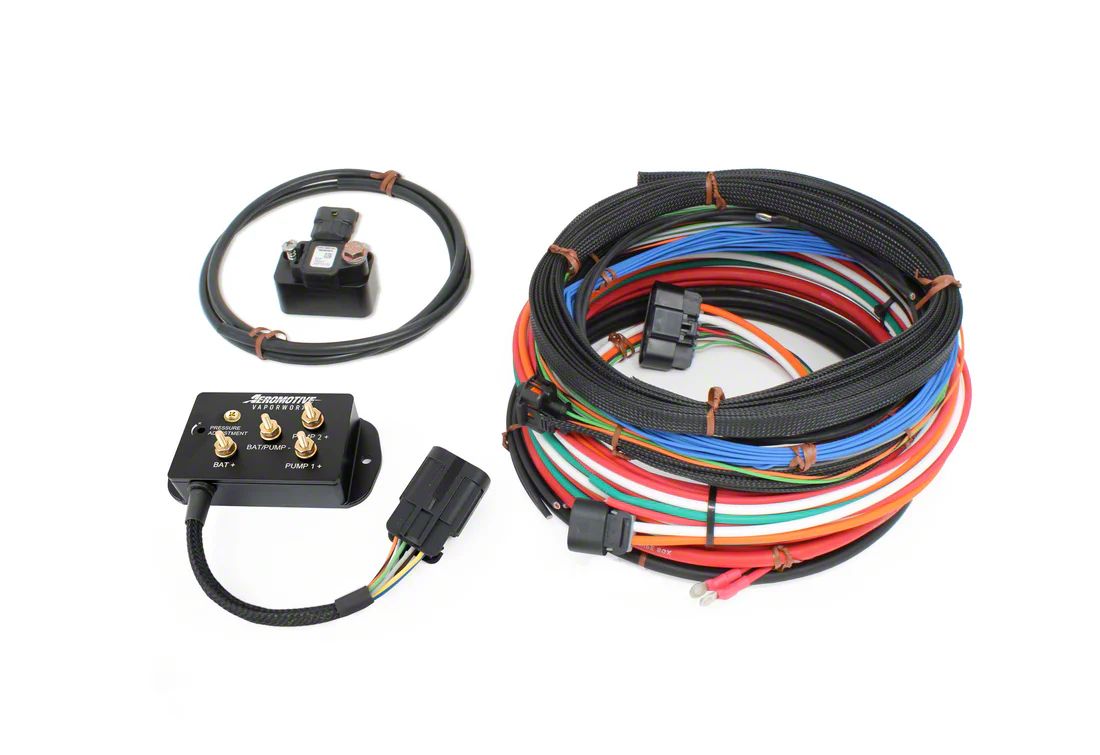

Product Image
Eckler's no longer carries the Aeromotive FourX Return-Type Fuel Control System for 3 to 4-Pump Systems (Universal; Some Adaptation May Be Required). Please check out 1967-1969 Chevrolet Camaro Engine for an updated selection.
40 Reviews of Aeromotive
Shop Owners Save More! Sign up for our dealer program
Join For FREE

    Product Information

    Features, Description, Q&A

    Features

      _x000D_
    • Works With All Brushed Type Fuel Pumps
      • _x000D_
    • Typical Power Reduction To The Pump(s) Of 45-75% During Idle And Cruise Resulting In Reduced Heat Generation
      • _x000D_
    • Includes A Stand-Alone MAP Sensor For Pump Speed Control
      • _x000D_
    • All Pumps Are Under PWM Control
      • _x000D_
    • Plumb The Fuel System Using Traditional Regulators, Filters, And Return Lines
      • _x000D_
    • Developed For In-Cell Use Where The Primary Output Feeds A Lift And Pressure Pump, And The Secondary Output Controls The Third And Fourth Pumps
      • _x000D_
    • Compatible With Any Two, Three, Or Four Pump System
      • _x000D_
    • Designed For Forced Induction Systems Only; Contact Supplier For Naturally Aspirated Applications
      • _x000D_
    • Provides Efficient Fuel Pump Speed Control To Prevent Vapor Lock And Reduce Fuel Temperature
      • _x000D_
    • Uses Pulse Width Modulation To Control Pump Speed Based On Feedback From MAP Sensor
      • _x000D_
    • Primary Pumps (#1 & #2) Run On Primary Side With Adjustable Speed; Secondary Pumps (#3 & #4) Follow On Secondary Side With Lower Duty Cycle
      • _x000D_
    • Leader-Follower Pump Ramp-Up Arrangement Eliminates Need For Additional Relays Or Switches
      • _x000D_
    • Includes 2.5 Bar MAP Sensor Suitable For Supercharged Applications
      • _x000D_
    • Recommends Manifold Referenced Fuel Pressure Set To Approximately 43psi At Idle To Reduce Pump And Electrical Load
      • _x000D_
    • 110 Amp Minimum Continuous Power Rating
      • _x000D_
    • Over-Temperature Shutdown With Automatic Reset For Durable Operation
      • _x000D_
    • Short Circuit Output Protection Ensures Safe Operation
      • _x000D_
    • OEM Delphi/Aptiv Connections For Reliable Terminal And Connector Integrity
      • _x000D_
    • Cross-Linked Polyethylene Wiring And UL94 Rated Components For High Durability
      • _x000D_
    • Operates On 10-18 Volts; Shuts Down Below 10 Volts To Protect Against Lean Conditions
      • _x000D_
    • Easy Adjustment For Idle/Cruise Primary Pump Speed
      • _x000D_
    • No Adjustments Needed For #3/#4 Pumps Ramping
      • _x000D_
    • Replaces Traditional Hobb's Pressure Switch And Relay Fuel Pump Control Systems
      • _x000D_
    • Supports Up To Four High-Powered Brushed Fuel Pumps
      • _x000D_
    • Significantly Reduces Average Fuel Pump Power Demand, Increasing Pump Life And Lowering Fuel Temperatures
      • _x000D_
    • Fits Universal; Some Adaptation May Be Required For Forced Induction Fuel Systems Only
      • _x000D_

    Description

    Advanced Fuel Control. The Aeromotive FourX Return-Type Fuel Control System for 3 to 4-Pump Systems provides precise, stand-alone speed management for multiple high-power brushed fuel pumps. It utilizes pulse width modulation combined with a dedicated MAP sensor to dynamically adjust pump speed based on fuel demand, reducing heat generation and preventing vapor lock in return-type fuel systems, especially in forced induction applications.

    _x000D__x000D_

    Construction and Appearance. Constructed with high-quality cross-linked polyethylene wiring and UL94 rated components, the controller features OEM Delphi/Aptiv electrical connectors for secure and reliable connections. The compact unit is engineered to withstand harsh automotive environments, including over-temperature and short circuit conditions, ensuring long-lasting durability and consistent performance.

    _x000D__x000D_

    Installation. The installation process is straightforward with no drilling required, designed to integrate seamlessly with existing return-type fuel systems. It easily replaces systems that rely on mechanical switches and relays, simplifying fuel pump speed control without complex wiring.

    _x000D__x000D_

    Warranty. This system carries a one-year limited warranty against defects in materials and workmanship.

    _x000D__x000D_

    Application. This product is intended primarily for forced induction fuel systems with two to four brushed fuel pumps. Adaptations may be necessary depending on specific fuel system configurations.
