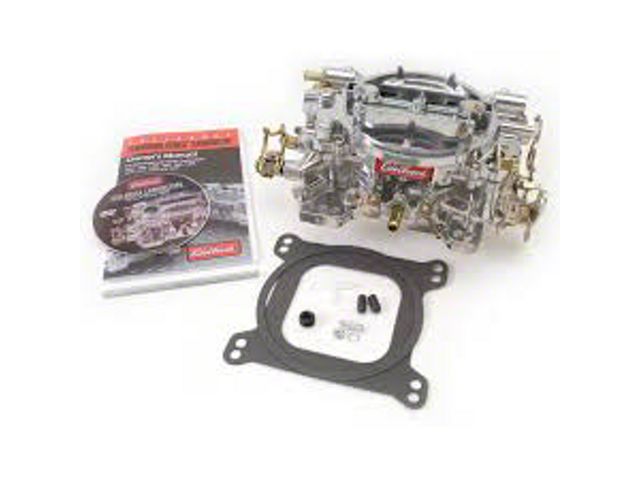

800 CFM AVS2 Edelbrock Carburetor Thunder Series (67-72 Camaro)Find parts that fit my vehicle

Item EK-33-852228-1
10 Reviews of Edelbrock
Our Price

$464.95

Military, Medical & First Responders $23.25 Available in Eckler's Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Annular Flow Booster Technology
        • _x000D_
      • Specifically Calibrated For High-Horsepower Small-And Big-Block Engines
        • _x000D_
      • Manual Choke Design
        • _x000D_
      • 800 CFM Airflow Rating
        • _x000D_
      • Satin Finish
        • _x000D_
      • Four-Barrel Carburetor
        • _x000D_
      • Aluminum Body Material
        • _x000D_
      • Metering Rod Size: .065 X .052 In
        • _x000D_
      • Primary And Secondary Bore Diameter: 1.75 In
        • _x000D_
      • Main Venturi Diameter: 1.525 In
        • _x000D_
      • Secondary Venturi Diameter: 1.630 In
        • _x000D_
      • Secondary Jet Diameter: 0.104 In
        • _x000D_
      • Primary Jet Diameter: 0.104 In
        • _x000D_
      • Spring Force: 5" Hg (Orange)
        • _x000D_
      • Two-Piece Ease-Of-Tuning Design Without Fuel Draining Or Removal
        • _x000D_
      • Metering Rods And Springs Adjustable Without Carburetor Removal
        • _x000D_
      • Refined Fuel Distribution With Eight Equally Spaced Orifices In Booster Rings
        • _x000D_
      • No Power Valves To Blow Out, Resistant To Engine Backfires
        • _x000D_
      • Updated Booster Clusters For Today's Fuels And Octane Levels
        • _x000D_
      • Qwik-Tune Secondary Air Valve For Quick Secondary Circuit Calibration
        • _x000D_
      • Manual Choke Carbs Cannot Be Converted To Electric Choke
        • _x000D_
      • Compatible With Ford Automatic Overdrive Trans (AOD) With Lokar Bracket SRK-4000
        • _x000D_
      • Not Calibrated For Alcohol, Race Or E85 Pump Fuel
        • _x000D_
      • Requires Use Of New Fuel Filter Between Fuel Pump And Carburetor
        • _x000D_
      • Gasket Or Seal Included
        • _x000D_
      • Mounting Hole Quantity: 8
        • _x000D_
      • Mounting Hole Diameter: 0.355 In
        • _x000D_
      • Flange Type: Square
        • _x000D_
      • Body Height: 3.25 In
        • _x000D_
      • Metering Rod Length: 65 In
        • _x000D_
      • Street Legal: No
        • _x000D_
      • Warranty Provided
        • _x000D_
      • Fits 67-72 Camaro
        • _x000D_

      Description

      HIGH-PERFORMANCE CARBURETOR. The Edelbrock 800 CFM AVS2 Carburetor Thunder Series delivers advanced fuel atomization technology optimized for high-horsepower small and big-block engines. Designed to provide smooth throttle response and improved low- to mid-RPM power without sacrificing top-end performance, it enhances drivability and eliminates flat spots. This carburetor is ideal for enthusiasts seeking EFI-like control and consistent tuning in a manual choke configuration.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. Constructed from durable aluminum, this four-barrel carburetor features a satin finish providing a clean and professional appearance. The precision-machined body includes updated primary and secondary boosters designed for accurate fuel delivery calibrated for modern fuels. The ease-of-tuning two-piece design allows adjustments and internal component replacements without removing the carburetor or draining fuel.

      _x000D__x000D_

      INSTALLATION. Installation requires no drilling and is straightforward for enthusiasts with moderate mechanical experience. The carburetor is compatible with certain Ford automatic overdrive transmissions when used with an appropriate bracket.

      _x000D__x000D_

      WARRANTY. This product includes a 12-month warranty.

      _x000D__x000D_

      APPLICATION. Fits 67-72 Camaro. Note: Manual choke AVS2 carburetors cannot be converted to electric choke and are not compatible with alcohol, race, or E85 fuels. Use of a new fuel filter is required to maintain warranty compliance.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.8

      Reviews of Edelbrock Classic Engine Products (10)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Camaro

      • Base - 67, 68, 69, 70, 71, 72
      • RS - 67, 68, 69, 70, 71, 72
      • SS - 67, 68, 69, 70, 71, 72
      • Z28 - 67, 68, 69, 70, 71
