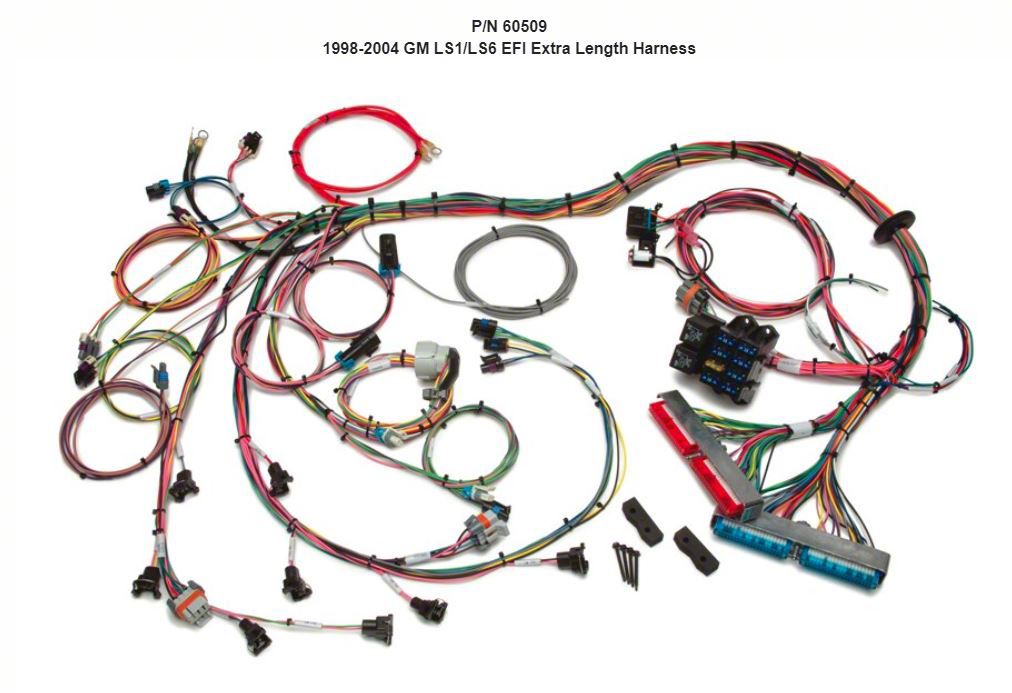

1998-2004 Camaro LS1/LS6 EFI Extra Length Harness
Item EK-33-865221-1
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- All new fuel injection harness with OEM fitment connectors and harness breakouts
- OBDII connector, mounting bracket and check engine light
- Rubber grommet
- Mounting hardware
- LS Swap and EFI
- Eckler OEM Number: 60509
Description
This harness is designed for the 1998-2002 LS1 mechanical throttle body engines using a 1999+ LS1 / LS6 ECM with a 4L60E/4L65E/4L80E automatic or T56 manual transmission. These engines were found in 1998-2002 Camaro/Firebird. This harness will also work on 1997-2004 Throttle By Wire (TBW) LS1/LS6 engines which has been changed to mechanical throttle body or any 1999-2006 (4.8, 5.3, & 6.2) Vortec truck engine which has been changed to a factory of aftermarket LS1 intake manifold, mechanical throttle body, and injectors. Harnesses do not include any emissions related connections but are available separate. Included with this harness is an 8 circuit modular fuse block and GM color coded wires with labels for easy installation.
This extended length harness allows eight
