Find Torque & Radius Arms for your Camaro

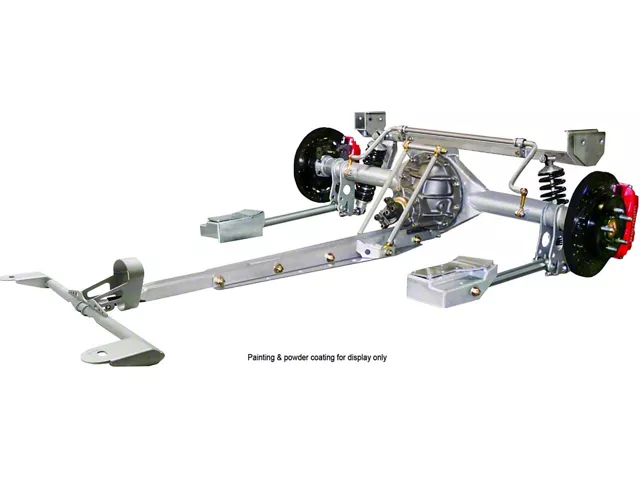

Torque Arm Rear Suspension (70-81 Camaro)Find parts that fit my vehicle

Item EK-33-859536-1
Our Price

$3,194.99

Military, Medical & First Responders $159.75 Available in Eckler's Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

      • Engineered for street, autocross, and road course applications
      • Eliminates suspension bind during cornering compared to stock leaf spring suspension
      • Features telescoping slider at front of arm that rotates with suspension travel
      • Allows handling control via coil-over shocks and rear sway bar
      • Enables lowered stance and greater rear axle control
      • Three height adjustments on axle brackets in one-inch increments
      • Fine tune ride height with adjustable coil-overs
      • Bolt-on installation with some welding required on axle brackets, panhard bracket, torque arm tabs, and optional sway bar brackets
      • Compatible with any housing utilizing 3-inch axle tubes
      • Available complete 9-inch axle housings fully welded and ready to install
      • Includes high-performance link bars, torque arm with slider and reinforcing flanges, coil-over crossmember, adjustable panhard bar, axle housing brackets, adjustable pinion support tubes, trailing arms, crossmember with drive shaft loop, floor reinforcing plates, hardware, greaseable urethane bushings, and American coil-over shocks
      • TIG welded for highest quality and strength
      • Dramatically improves handling and eliminates bind during articulation
      • True bolt-in application with no floor cutting required
      • Fits 70-81 Camaro

      Description

      TCI Engineering’s 1970-1981 Camaro Torque Arm assembly is engineered for Street, Autocross and Road Course Applications. The Torque Arm rear suspension was designed to eliminate the suspension bind that occurs when cornering using the stock conventional leaf spring suspension. The Torque Arm features a telescoping slider at the front of the arm that rotates as the car goes through suspension travel and articulation. This allows the cars handling to be controlled by the coil-over shocks and the rear sway bar with no suspension binding variables. The kit allows for a lowered stance, greater rear axle control and dramatically improved handling.

      There are 3 height adjustments on the axle brackets in one inch increments. You also have the ability to fine tune the ride height furth
