American Powertrain Hydramax Master Cylinder Kit (67-92 Camaro)Find parts that fit my vehicle
Item EK-33-846507-1
Sale
On Sale
-19% $399.99 Was $494.99
Military, Medical & First Responders
$20.00 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation

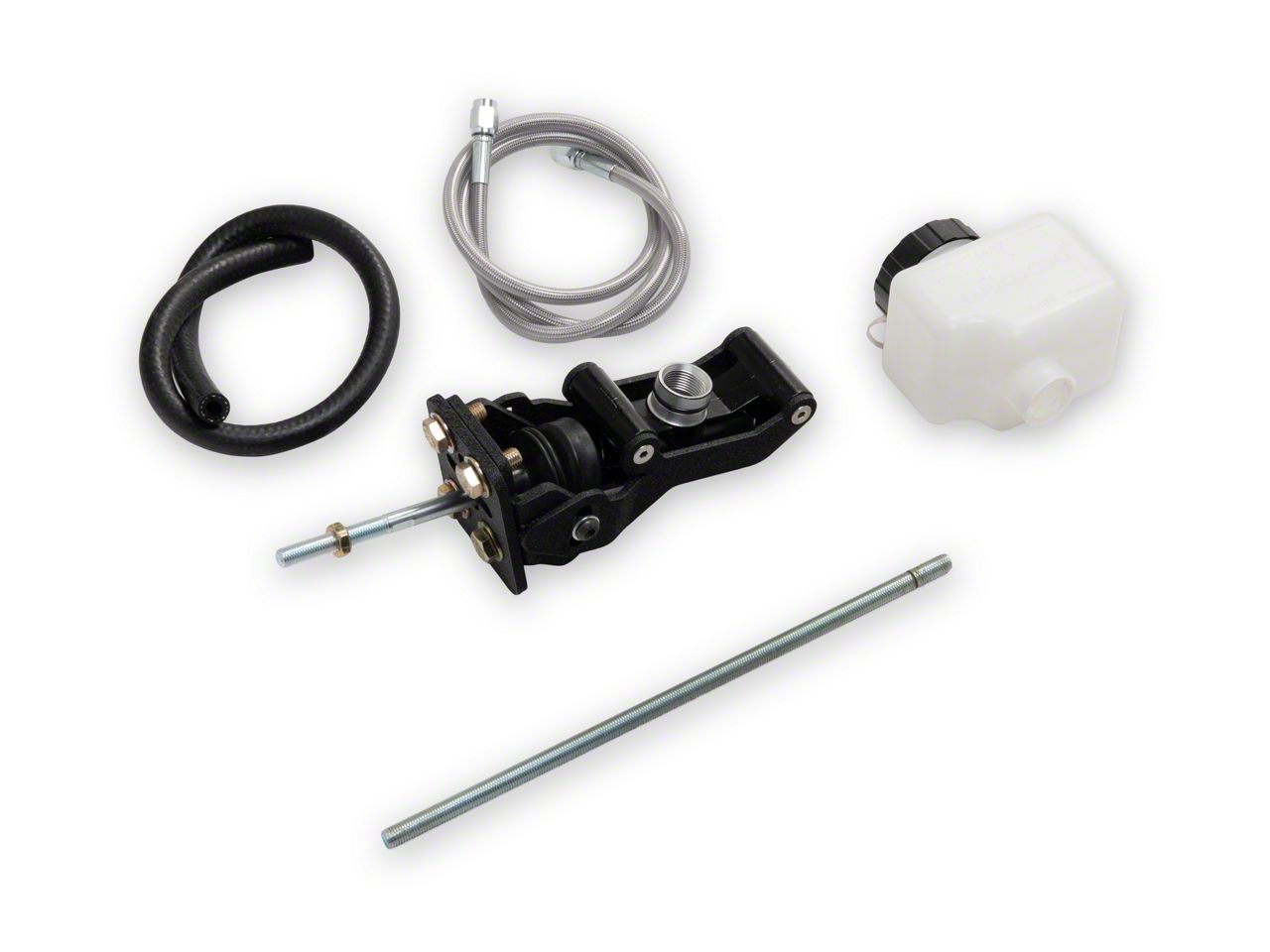

Features
- Hydramax Firewall Mount – Pat. Pending Adjustable Bracket, Nickel Plated
- Wilwood 3/4 Master Cylinder – Black Finish, Low Profile
- Line Fitting – 90-Degree O-Ring Boss To -3AN
- Pedal Rod Assembly – Model Specific (Specify model when ordering)
- Reservoir Kit – Standard Plastic Tank (Billet Upgrade Available)
- Braided Stainless Line
- Weight: 3 Lbs
- Dimensions: W10" x H6" x L6"
- Application varies; specify model when ordering. Not compatible with floor-mounted pedals.
Description
High Performance Hydraulic Master Cylinder. The Clutch Hydraulic Master Cylinder Kit, Hydramax provides a hydraulic clutch system solution that works with the existing slave or concentric hydraulic bearing, designed to assist in clutch engagement and operation.
Construction and Appearance. Featuring a nickel-plated adjustable firewall mount bracket (patent pending) and a black finished Wilwood 3/4 master cylinder with a low-profile design, this kit combines durability with functionality. The kit includes a standard plastic reservoir with an optional billet aluminum upgrade, braided stainless steel lines, and a 90-degree O-ring boss line fitting, providing a robust assembly.
Installation. Installation requires the use of a model-specific pedal rod assembly and does not support floor-mounted pedal configurations. The adjustable firewall mounting bracket allows for mounting flexibility. Please specify the vehicle model when ordering to ensure proper fitment.
Application. This kit is intended for specific vehicle models and fitment can vary; customers must specify their model upon ordering. It is not compatible with floor-mounted pedal setups.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
What's in the Box
- Hydramax Throwout Bearing (HRB) with Bleed Line
- Floating Stud Carrier (Ford & Chrysler Applications)
- Shims and Stud Pack
- Bell housing spacer options: CAGM-50003S spacer(s)
- 0.700" thick spacer
- 0.350" spacer
- 0.250" CNC aluminum spacer plate
- Hydramax-2 adjustable firewall mount
- Firewall Inner Backing Plate
- Outer Firewall Bracket
- Master Cylinder Assembly
- Reservoir
- Reservoir Nipple
- Neoprene hose
- Hose barb
- Bleeder line
- Supply line
- Heim joint (spherical rod end)
- Firewall Fastener Bolts
- 5/16" x 3/4" bolts
- 5/16" bolts
- Sheet metal screws
- Shoulder bolt
- Spacers
- Flat washer
- Nylock nut
- Blue thread locker
- DOT3 brake fluid
- QR code videos / YouTube setup videos
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Camaro
- Base - 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 88
- Berlinetta - 79, 80, 81, 82, 83, 84, 85, 86
- Iroc-Z - 85, 86, 87, 88, 89, 90
- LT - 73, 74, 75, 76, 77, 78, 87
- LT Rally Sport - 76, 77, 78
- Rally Sport - 76, 77, 78, 79, 80
- RS - 67, 68, 69, 70, 71, 72, 73, 75, 89, 90, 91, 92
- RS Heritage Edition - 92
- Sport - 81, 82, 83, 84, 85, 86, 87
- SS - 67, 68, 69, 70, 71, 72
- Z28 - 67, 68, 69, 70, 71, 72, 73, 74, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 91, 92
- Z28 Heritage Edition - 92
- Z28 Indianapolis 500 Pace Car - 82
