1958-96 MSD 6AL Multiple Spark Discharge Ignition
Item EK-33-103440-1
Open Box Only
Open Box Only - Starting at
$218.97
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Built-In Adjustable Rev-Limit Control
- Microprocessor Monitors And Controls Every Firing And Rev Limit
- Efficient Components Use Less Current To Produce More Power
- Delivers Over 530 Volts To The Coil With Up To 135mJ Of Spark Energy Per Firing
- Multiple Spark Series Ignition Technology
- Compatible With 4, 6, Or 8-Cylinder Engines
- Accepts Trigger Inputs From Breaker Points, Amplifiers, And Magnetic Pickups
- Wiring Harness And Installation Components Included
- Vibration Mounts Supplied
- Wiring Routed Through Sealed, Locking Connector
- Rev-Limiter Located On Top With Two Rotary Dials For 100 RPM Increments
- 12-15 Volt Operation, 7 Volt Start
- 0.7 Amp Per 1,000 RPM Current Draw
- High Output With 530 Volts And 135mJ Spark Energy
- Surface Mount With Hardware Included
- Maximum RPM 11,000
- Dimensions 8L X 4W X 1.825H Inches
- Weight 1.7 Pounds
- Emission Code 1; CARB Executive Order D-40-43
- Manufacturer’s Limited One Year Warranty
- Fits Emissions Controlled Vehicles In All 50 States When Used According To Application Guide
Description

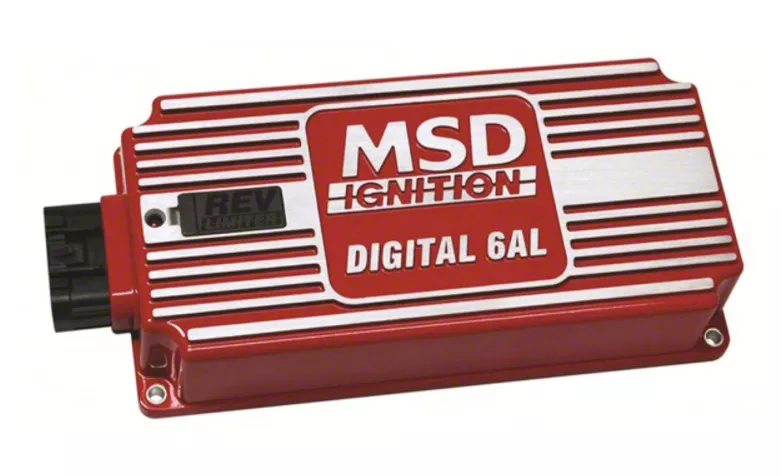

Advanced Ignition Control. The MSD 1958-96 6AL Multiple Spark Discharge Ignition is a high-performance ignition control box designed to optimize spark energy and ignition timing. It features an internal microprocessor that monitors and controls every firing and rev limit, enhancing power output and engine efficiency while providing essential engine protection through its built-in adjustable rev limiter.
Construction and Appearance. This ignition control box is housed in a durable red case with sealed, locking connectors to protect wiring and simplify installation. The components are engineered for high efficiency, delivering enhanced spark voltage output while using less current. Its compact surface-mount design includes vibration mounts and all necessary hardware for secure installation.
Installation. Installation is straightforward, with the included wiring harness and mounting hardware ensuring a clean, professional setup. The sealed connector system protects wiring, and the rev limiter dials are easily accessible on the unit's top.
Warranty. This product includes a manufacturer’s limited one-year warranty.
Application. This ignition control unit fits emissions-controlled vehicles in all 50 states when used according to the manufacturer’s application guide and complies with California Air Resources Board requirements under Executive Order D-40-43.
