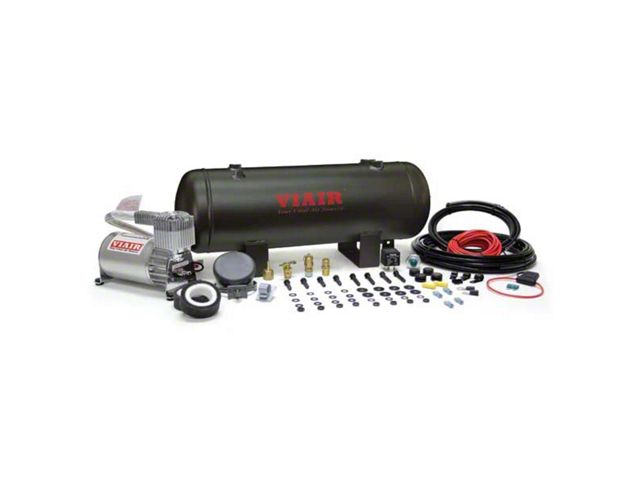

Viair Quarter Duty OnBoard Air System; 120 PSI (Universal; Some Adaptation May Be Required)

Item EK-61-911676
Product Image
Our Price

$301.95

Military, Medical & First Responders $15.10 Available in EK Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • Quarter Duty Cycle Onboard Air System
      • Suitable For Multiple Pneumatic Needs Including Small Inflation Tasks And Air Horns
      • 120 PSI Maximum Working Pressure
      • 25% Duty Cycle At 100 PSI
      • Provides Approximately 10 Minutes Of Continuous Use With 30 Minutes Cool Down
      • Comes With 2.0 Gallon Air Tank
      • 275C Air Compressor With Thermal Overload Protector
      • Pressure Switch Operates At 90 PSI ON And 120 PSI OFF
      • Includes 40-Amp Relay And 1/4” NPT 145 PSI Safety Valve
      • Equipped With 1/4” Drain Cock And 1/4” Compression Fitting
      • Supplied With 20ft 16 Gauge Wire And Inline Fuse Holder
      • Includes Accessory Airline, Electrical Connections, Fittings, And Mounting Kit
      • Oil-Less Permanent Magnetic Motor
      • Max Amp Draw 18 Amps
      • Ingress Protection Rating IP54
      • Max Ambient Temperature +158°F, Min Ambient Temperature -40°F
      • ISO 9001 Quality Standard
      • Compatible With 12V Systems Only
      • Fits Universal; Some Adaptation May Be Required

      Description

      Compact Pneumatic Solution. The Viair Quarter Duty OnBoard Air System is designed to supply compressed air for a range of small pneumatic applications such as air horns and light inflation tasks. It ensures reliable air delivery for intermittent use where moderate air pressure and flow are necessary. This system offers convenience and portability for enthusiasts seeking an onboard air source without the complexity of larger units.

      Construction and Appearance. This air system features a durable, oil-less 275C air compressor with a permanent magnetic motor that ensures maintenance-free operation. It includes a 2.0-gallon air tank, all finished with robust materials suitable for harsh environments, rated IP54 for ingress protection, providing resilience against dust and water. Electrical wiring uses high-quality 16 gauge wire with an inline fuse for safety. The kit is supplied with fittings and a secure mounting kit designed for stable installation.

      Installation. Installation of this onboard air system is straightforward and suitable for users with basic mechanical skills. It is designed to mount securely without requiring extensive modifications, although some drilling may be necessary depending on the vehicle application and mounting location.

      Application. Fits Universal; Some Adaptation May Be Required for specific mounting and connection setups. This system is not intended for automotive tire inflation and is best used for accessories requiring lower volume or pressure operation.

      Viair 10002
