Precision Turbo & Engine Street and Race Next Gen PT6466 Turbocharger with SCP-Style Compression Cover (Universal; Some Adaptation May Be Required)

Item U47010-EK
Product Image
$0.00
Want $10? Write one of the first 5 reviews
Our Price

$2,810.10 - $2,988.33

Military, Medical & First Responders Earn $140.51 in Eckler's Cash Rewards. Get Verified

Select Option

T3 Inlet/4-Bolt Discharge; 0.63 A/R (Area/Radius) Ratio T3 Inlet/4-Bolt Discharge; 0.82 A/R (Area/Radius) Ratio T3 Inlet/5-Bolt Discharge with Hole; 0.63 A/R (Area/Radius) Ratio T3 Inlet/5-Bolt Discharge; 0.63 A/R (Area/Radius) Ratio T3 Inlet/V-Band Discharge; 0.63 A/R (Area/Radius) Ratio T3 Inlet/V-Band Discharge; 0.82 A/R (Area/Radius) Ratio T3 V-Band In/Out; 0.82 A/R (Area/Radius) Ratio T4 Inlet/V-Band Discharge; 0.58 A/R (Area/Radius) Ratio T4 Inlet/V-Band Discharge; 0.68 A/R (Area/Radius) Ratio T4 Inlet/V-Band Discharge; 0.81 A/R (Area/Radius) Ratio T4 Inlet/V-Band Discharge; 0.96 A/R (Area/Radius) Ratio T4 Divided Inlet/V-Band Discharge; 0.70 A/R (Area/Radius) Ratio T4 Divided Inlet/V-Band Discharge; 0.84 A/R (Area/Radius) Ratio T4 Divided Inlet/V-Band Discharge; 1.00 A/R (Area/Radius) Ratio T4 Divided Inlet/V-Band Discharge; 1.15 A/R (Area/Radius) Ratio T4 Divided Inlet/V-Band Discharge; 1.32 A/R (Area/Radius) Ratio T3 Stainless V-Band In/Out; 0.82 A/R (Area/Radius) Ratio T3 Stainless V-Band In/Out; 1.05 A/R (Area/Radius) Ratio
Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Loading Indicator

      Product Information

      Description, Q&A

      Description

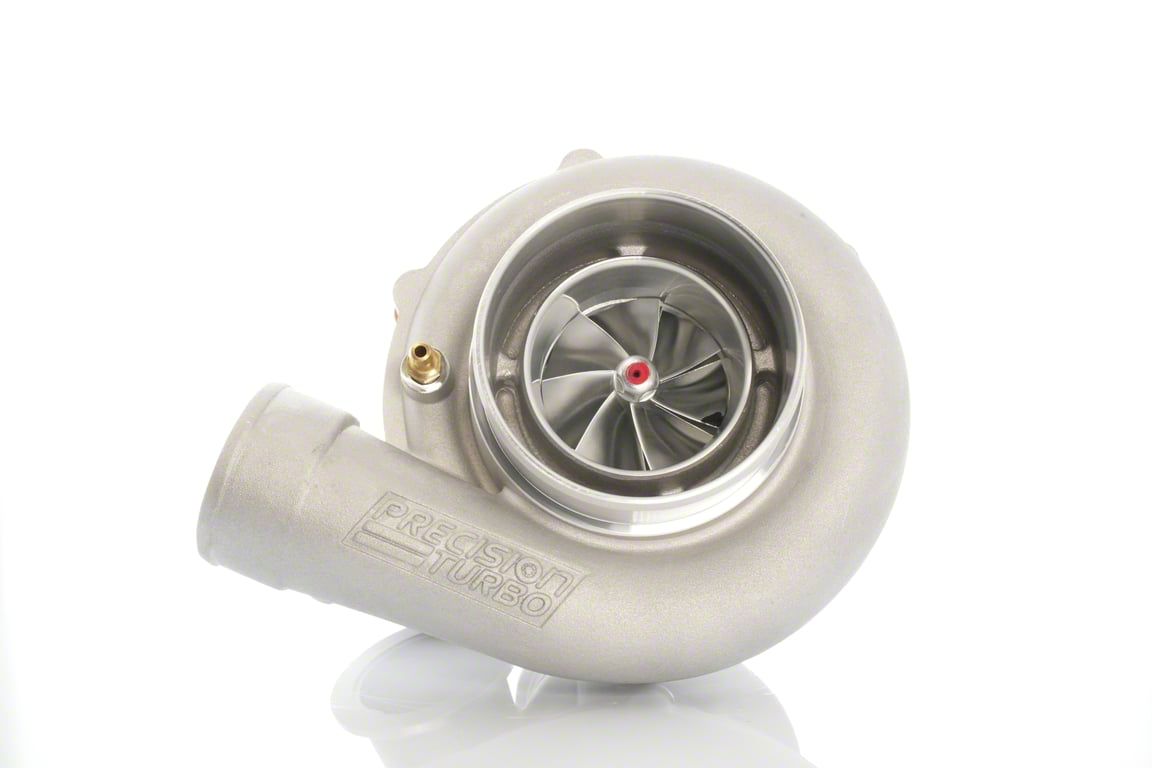

      Introducing the all-new Precision Turbo Next Gen 6466 turbocharger. The Next Gen 6466 is now rated at 1000HP and will be available in the all-new SCP (S Cast Ported) compressor cover, offering a 4” inlet and 2.5” outlet and for the first time in the HP compressor cover, which features a 4” inlet and 3” outlet . This evolution in our lineup involves the development of a new aero package, which includes a redesigned compressor cover with numerous flow enhancements and a new compressor wheel profile that incorporates an extended tip on the exducer. All these improvements result in a 10% increase in flow compared to Gen 2 technology.
      Details
      Key Features: NEXT GENERATION RACE TECHNOLOGY • HP Rating: 1000 HP • Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers. • CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow. • Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability. • Available in an All-New SP compressor cover w/ 4” inlet and 2-1/2”outlet and for the first time in HP compressor cover w/ 4” inlet and 3”outlet for maximum air flow. • High flow / highly efficient 66mm turbine wheel Specifications: Compressor Wheel Inducer: 64mm Compressor Wheel Exducer: 86mm/ 88.1mm ET Turbine Wheel Inducer: 74mm Turbine Wheel Exducer: 66mm
      Specs
      hp rating: 1000 HP
      generation: T3 4-BOLT
      cover style: SCP-COVER
      compressor inducer: 64.0 MM

      Precision Turbo & Engine 27304210089

      27304210109

      27304210189

      27304210179

      27304210099

      27304210119

      27304210139

      27304210199

      27304210209

      27304210219

      27304210229

      27304210889

      27304210239

      27304210249

      27304210259

      27304210269

      27304210149

      27304210799

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Questions & Answers

      No questions about this product yet. Ask the First Question
