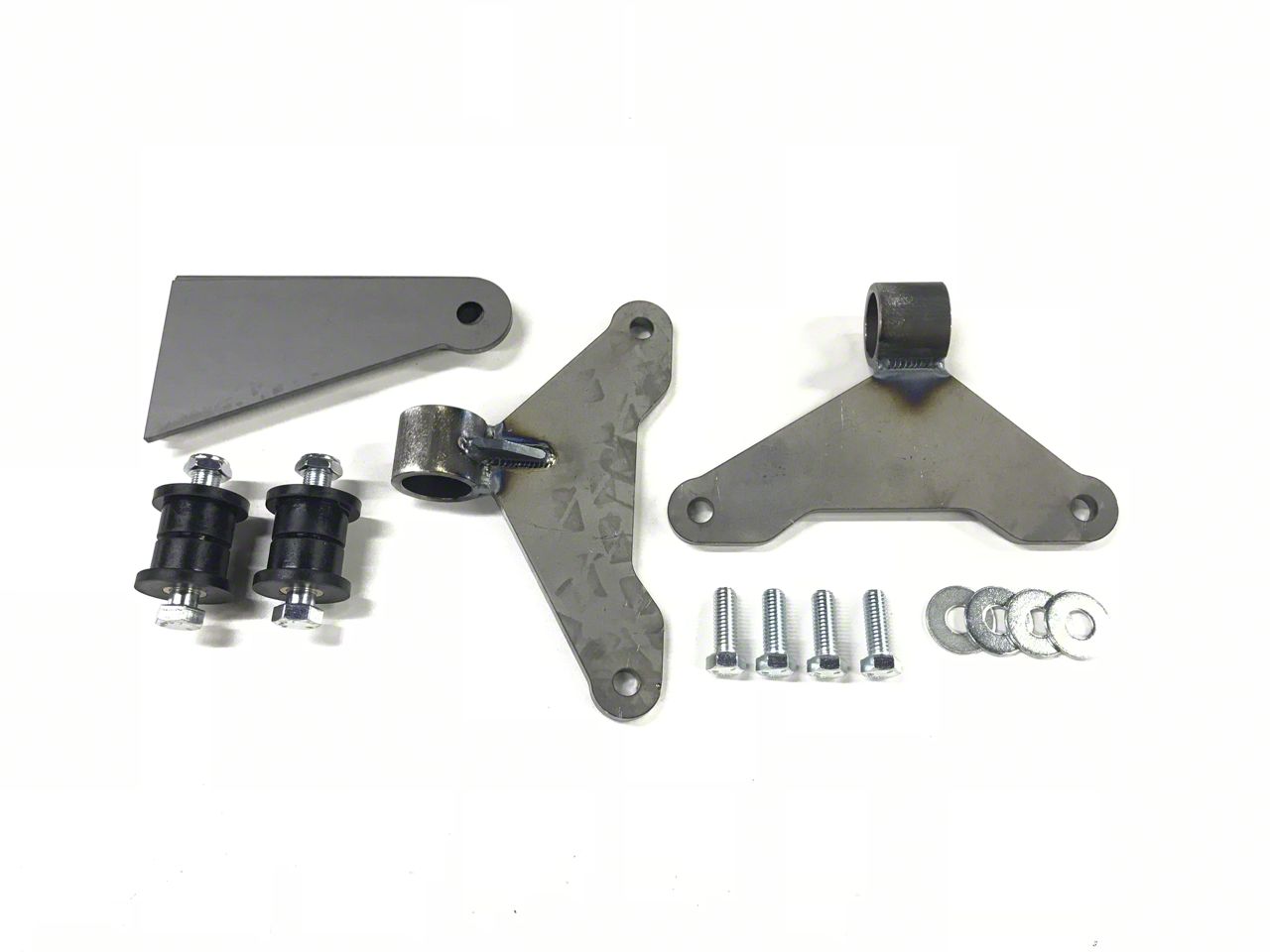

Paul Horton's Welder Series Small Block Ford Engine Mount Kit with Urethane Bushings (Universal; Some Adaptation May Be Required)

This motor mount kit is designed specifically for Ford small block engines, including the 260, 289, 302, 5.0, 351W, 351C, and 400 models. Built to minimize vibrations and provide a stable engine mounting solution, this kit is ideal for custom and performance builds.Vibration-Dampening Design:Featuring large 1-3/4" wide urethane bushings, these mounts deliver superior insulation from engine vibrations, ensuring a smoother ride and reduced wear on mounting points.Installation Notes:For blocks with three threaded mounting bosses, you may need to trim the middle boss if it protrudes beyond the outer two. Alternatively, spacers can be used to clear the center boss.Bolt Hole Spacing: 7/16" bolt holes are precisely spaced 7" on center to fit Ford small block engines.Mounting Measurements: The distance from the bushing center to the 7/16" bolt centerline is 3-9/16", and the frame plates measure 6" from the frame edge to the 1/2" bolt center for ideal alignment.The front sump on SB Ford oil pans will sometimes interfere with the Mustang II front crossmember. It may be necessary to do one or both of the following: 1) notch the Mustang II crossmember as required, or 2) use the pan from an '87-'94 Ford pick-up (#FITZ-6675-A). Be sure to get the correct oil pump pick-up tube. This pan is for motors with the dipstick in the block. Thanks to Dan Lecelle (Vern Hornby's nephew) for this tip.Boxed Frame Compatibility:Designed for use in boxed frames, this kit includes all necessary parts and grade 5 hardware for easy installation.
