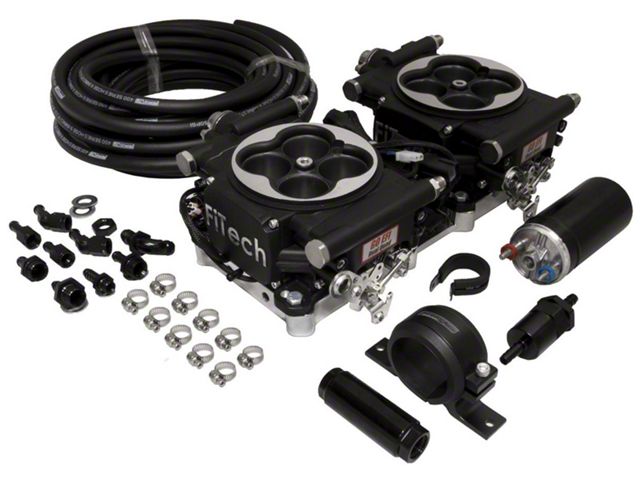

FiTech Fuel Injection Go EFI 2x4 Dual Quad 625HP Self Tuning Fuel Injection Master Kit; Matte Black (Universal; Some Adaptation May Be Required)

Item EK-32-395095-1
Product Image
Eckler's no longer carries the FiTech Fuel Injection Go EFI 2x4 Dual Quad 625HP Self Tuning Fuel Injection Master Kit; Matte Black (Universal; Some Adaptation May Be Required). Please check out Early Ford Car/Truck Electricalfor an updated selection.
Coupon Added
Shop Owners Save More! Sign up for our dealer program
Join For FREE
Loading Indicator

    Product Information

    Features, Description, Q&A

    Features

      _x000D_
    • Maximum Horsepower: 625 HP
      • _x000D_
    • Injection Style: Throttle Body
      • _x000D_
    • Timing Control Compatible: Yes
      • _x000D_
    • Power Adder Compatible: No
      • _x000D_
    • ECU Included: Yes
      • _x000D_
    • Fuel Pump Included: Yes
      • _x000D_
    • Transmission Controller Included: No
      • _x000D_
    • Metering Style: Speed Density Map-N
      • _x000D_
    • Intake Manifold Included: No
      • _x000D_
    • Intake Section Included: No
      • _x000D_
    • Throttle Body Mounting Flange: Dual 4-Barrel Square Bore
      • _x000D_
    • Venturi Quantity: 8
      • _x000D_
    • Venturi Diameter Mm: 43 mm
      • _x000D_
    • Airflow Rate Cfm: 850 Cfm
      • _x000D_
    • Throttle Body Material: Cast Aluminum
      • _x000D_
    • Throttle Body Finish: Matte Black
      • _x000D_
    • Injectors Included: Yes
      • _x000D_
    • Injector Size Lbs/Hr: 80 Lbs./Hr.
      • _x000D_
    • Calibration Module Included: Yes
      • _x000D_
    • Wiring Harness Included: Yes
      • _x000D_
    • Oxygen Sensor Included: Yes
      • _x000D_
    • Fuel Pump Style: External Fuel Pump
      • _x000D_
    • Fuel Pressure Regulator Included: Yes
      • _x000D_
    • MAP Sensor Included: Yes
      • _x000D_
    • IAT Sensor Included: Yes
      • _x000D_
    • TPS Sensor Included: Yes
      • _x000D_
    • Quantity: Sold As A Kit
      • _x000D_
    • Fuel Type: Alcohol, Gasoline, Methanol, Flex
      • _x000D_
    • Fits Universal; Some Adaptation May Be Required
      • _x000D_

    Description

    Dual Quad EFI System. The FiTech Fuel Injection Go EFI 2x4 Dual Quad 625HP Self Tuning Fuel Injection Master Kit; Matte Black is a comprehensive EFI solution designed for engines requiring up to 625 horsepower. It simplifies dual quad EFI setups by combining two throttle bodies—one housing the ECU and the other containing additional injectors and idle control—into a self-tuning, bolt-on system ideal for popular manifold applications. This kit improves fuel delivery and engine calibration efficiently under various conditions.

    _x000D__x000D_

    Construction and Appearance. This system features cast aluminum throttle bodies with a matte black finish, providing durability and a sleek aesthetic. It includes high-quality EFI-grade components such as fuel injectors rated at 80 lbs/hr, an external inline fuel pump, and billet fuel filters, all designed for reliable performance and longevity.

    _x000D__x000D_

    Installation. Installation is straightforward with no drilling required for the bolt-on design compatible with most dual quad manifolds. The kit includes the necessary wiring harness, sensors, and calibration module to facilitate a seamless setup.

    _x000D__x000D_

    Warranty. The kit is backed by a 3-year limited warranty, ensuring confidence in product quality and support.

    _x000D__x000D_

    Application. Fits universal applications; some adaptation may be required to accommodate different engine setups. Designed for use on engines producing between 200 and 625 horsepower with dual quad intake manifolds. Not intended for use on boosted engines or vehicles requiring emission controls.

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Questions & Answers

    No questions about this product yet. Ask the First Question
