Weld-On Triangulated 4-Link Air Ride Suspension Kit (Universal; Some Adaptation May Be Required)

Item EK-25-939584
Our Price

$419.99 kit

Military, Medical & First Responders $21.00 Available in Eckler's Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • 4 X Heavy Duty Steel Bars
        • _x000D_
      • 4 X Zinc Plated Steel Rod Ends With Urethane Bushings
        • _x000D_
      • 2 X Steel Weld-On Triangulated Frame Mounts
        • _x000D_
      • 2 X Steel Weld-On Lower Axle Tube Mounts
        • _x000D_
      • 4 X Steel Weld-On Center Link Axle Mounts
        • _x000D_
      • 2 X Steel Weld-On Side Frame Mounts
        • _x000D_
      • 8 X Button Head Bolts With Nyloc Nuts
        • _x000D_
      • 2 X Weld-On Lower Axle Bag Mount
        • _x000D_
      • 2 X Weld-On Upper Frame Bag Mount
        • _x000D_
      • 2x Standard 2500 Single 1/2" NPT Port Air Bags
        • _x000D_
      • DOM Tubing Outside Diameter 1.25"
        • _x000D_
      • DOM Tubing Thick Wall 0.156"
        • _x000D_
      • All Four Bars 24.00" Center To Center Adjusted All The Way In
        • _x000D_
      • Air Bag Capacity 2500 LBS
        • _x000D_
      • Air Bag Diameter 6"
        • _x000D_
      • Air Bag Extended Length 8"
        • _x000D_
      • Air Bag Closed Length 2.75"
        • _x000D_
      • Two Top Mounting Holes Approximately 1-3/4" From Eye To Eye
        • _x000D_
      • Bottom Has One Mounting Hole In Center
        • _x000D_
      • All Mounting Holes Are 3/8"-16 UNC
        • _x000D_
      • Instructions Are Not Included
        • _x000D_
      • We Recommend Professional Installation
        • _x000D_
      • Universal Rear Weld-On Triangulated 4 Link Suspension Kit With Two 2500 Air Bags And Rear Air Bag Mounts
        • _x000D_
      • The Rod Is Available In Silver And Black, Please Refer To The Actual Product Received
        • _x000D_
      • Please Feel Free To Contact Us For Whatever We Can Help With
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Suspension Upgrade. The Weld-On Triangulated 4-Link Air Ride Suspension Kit is designed to enhance rear suspension performance by providing a durable and adjustable solution for air ride setups. It is used for improving vehicle stability, load support, and ride comfort by integrating air bags and triangulated link bars. This kit is essential for those looking to upgrade their vehicle suspension system for better handling and load management.

      _x000D__x000D_

      Construction and Appearance. The kit features heavy duty steel bars constructed with DOM tubing that has a 1.25" outside diameter and 0.156" thick walls, ensuring strength and longevity. Components are zinc plated rod ends with urethane bushings, alongside various weld-on steel mounts to provide a robust and corrosion-resistant finish. The design prioritizes durability and ease of use in a professional-grade suspension upgrade.

      _x000D__x000D_

      Installation. Installation requires welding as the kit is entirely weld-on style components, which typically demands professional installation. No drilling is required, but the process involves precise alignment and welding skills to ensure proper function and safety.

      _x000D__x000D_

      Application. This kit fits universally with some adaptation possibly needed depending on the vehicle setup. It is intended for use on vehicles with 2500 lbs air bags and a 2.75" closed air ride suspension axle, accommodating a range of configurations without specific vehicle restrictions noted.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) a Day

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

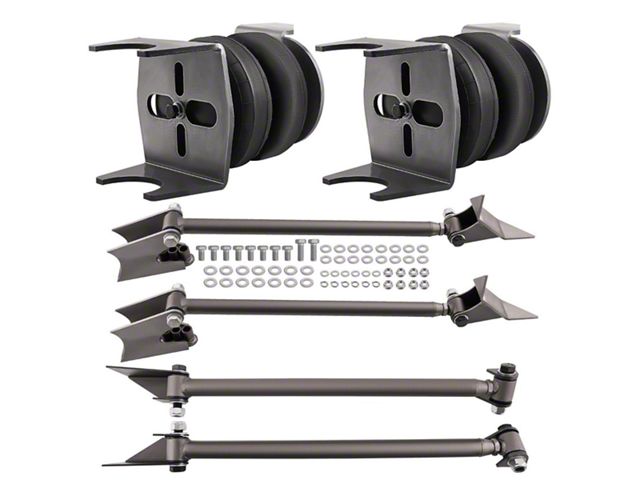

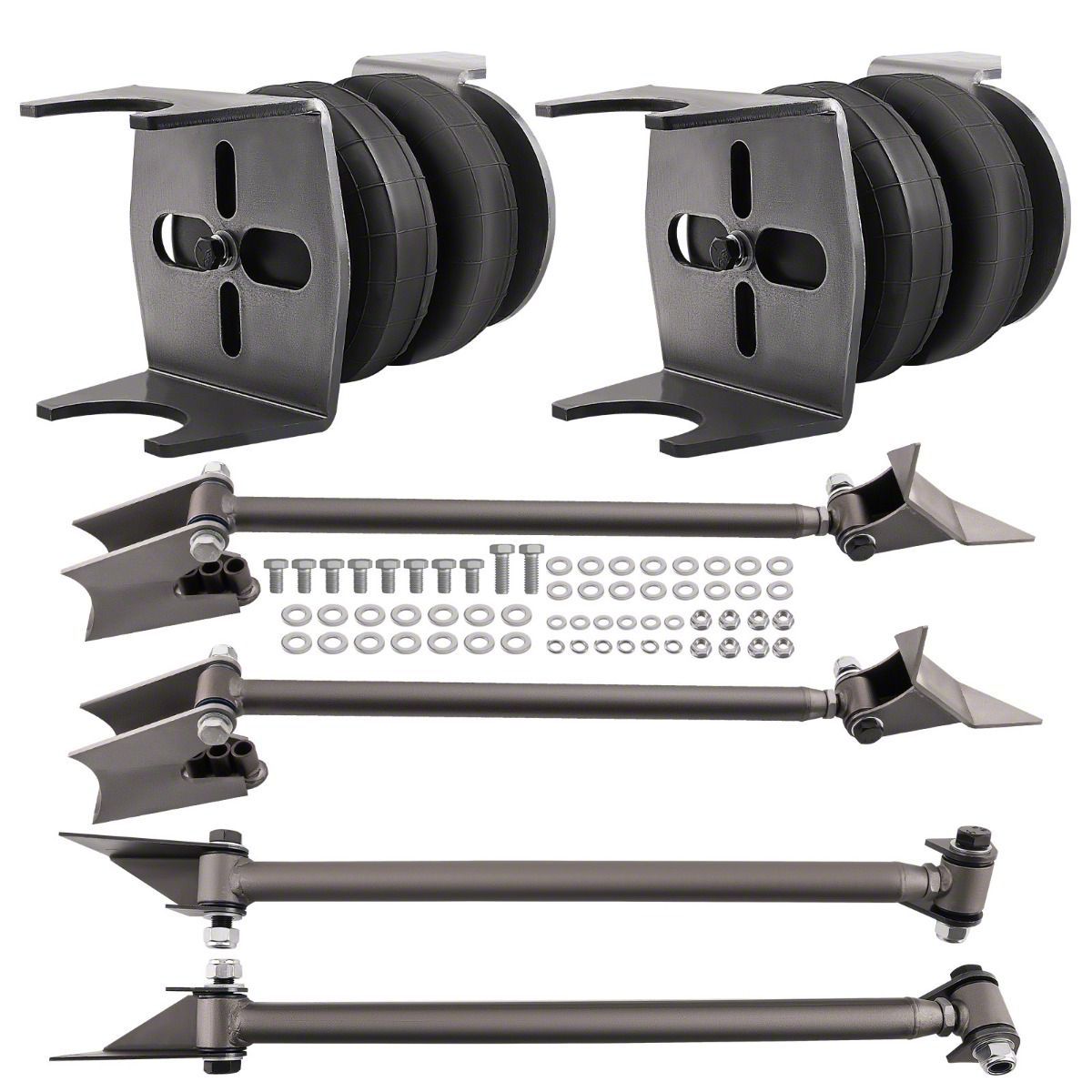

      What's in the Box

      • (4) Heavy-Duty Steel Link Bars
      • (8) Rod Ends with Polyurethane Bushings
      • (2) Heavy-Duty Double Bellow Air Spring Bags
      • (2) Weld-On Triangulated Frame Mounts
      • (2) Weld-On Lower Axle Tube Mounts
      • (4) Weld-On Center Link Axle Mounts
      • (2) Weld-On Side Frame Mounts
      • (2) Weld-On Upper Frame Air Bag Mounts
      • (2) Weld-On Lower Axle Air Bag Mounts
      • (1) Complete Grade 8 Mounting Hardware Kit
