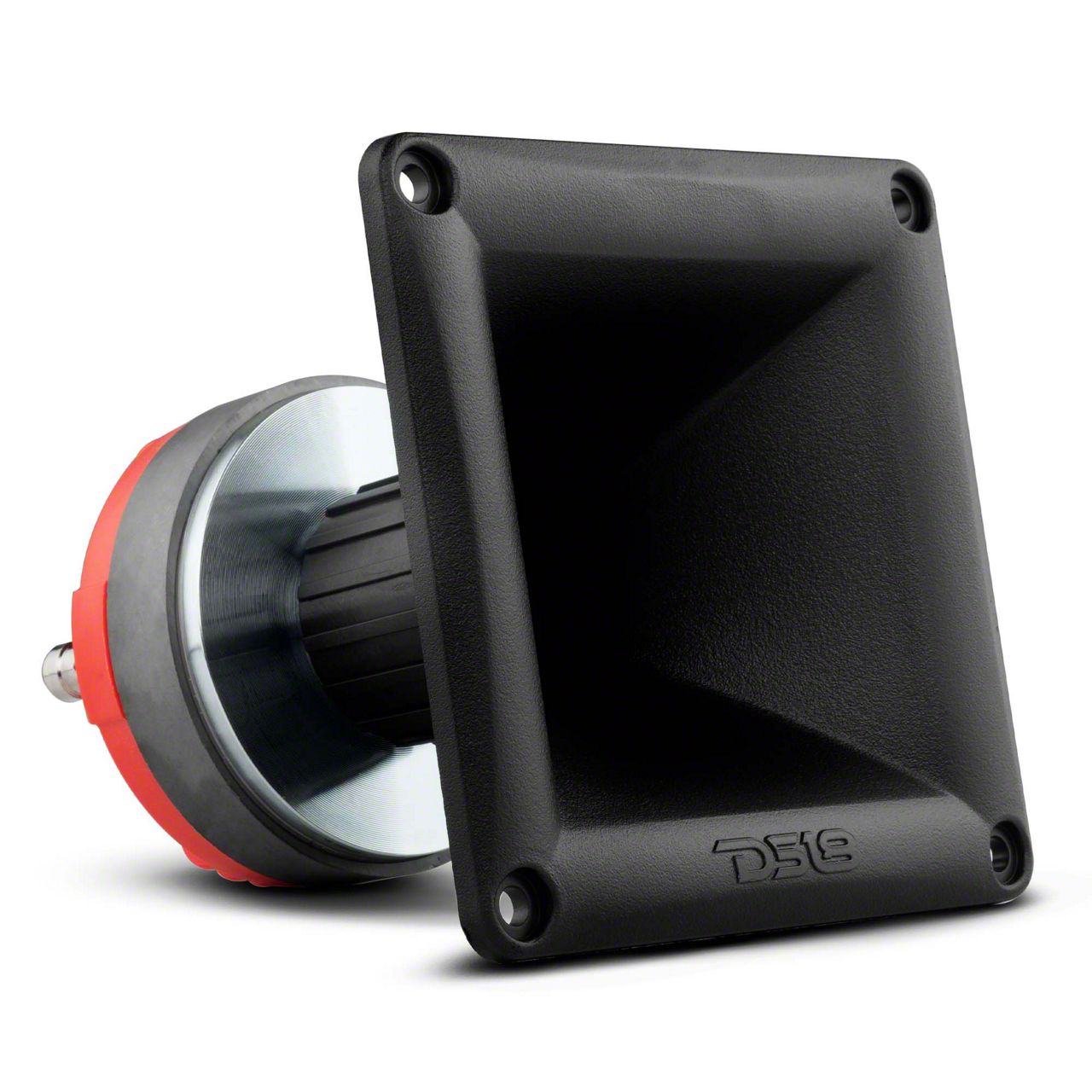

DS18 1-Inch Driver Horn Kit; 120 Watts; Black (Universal; Some Adaptation May Be Required)
Item U60570-EK
Our Price
$33.95
Military, Medical & First Responders
$1.70 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Compression Driver With Horn
- 1 X PRO-DR1P Compression Driver
- 1 X PRO-H44/BK Horn
- RMS Power: 120 Watts (240 Watts Peak)
- Impedance: 8 Ohm
- Ferrite Magnet
- Nominal Impedance: 8 Ohm
- AES Power Handling: 60W
- Program Power Handling: 120W
- Peak Power Handling: 240W
- Sensitivity (1W/1M) With Horn: 107.3dB
- Frequency Response: 800Hz - 20KHz
- Recommended Hi-Pass Crossover: 1KHz
- Voice Coil Diameter: 1 Inch / 25.4mm
- Voice Coil Former Material: Kapton
- Winding Material: CCA
- Diaphragm Material: Phenolic
- Magnet Material: Ferrite
- Magnet Weight: 0.38 Oz / 11g
- Body Material: Aluminum + ABS
- Horn Nominal Diameter: 4.5 Inch / 115mm
- Horn Throat Diameter: 1 Inch / 25.4mm
- Sound Coverage: 45 x 45 (Square)
- Horn Body Material: ABS/PC Injected
- Horn Color Finish: Black
- Measurement Overall Diameter: 4.52 Inch / 115mm
- Measurement Overall Depth: 4.88 Inch / 124mm
- Mounting Depth: 4.5 Inch / 116mm
- Mounting Hole Dimensions: 3.26 x 3.26 Inch / 83 x 83mm
- Bolt Pattern (Horn): 4 x 5.5mm / 100.5mm
- Gross Single Unit Weight: 2 lbs
- Single Unit Box Dimensions W x L x H: 4.75 x 4.75 x 5.75 Inch
- Quantity Of Units In Master Carton: 12
- Gross Master Carton Weight: 25.5 lbs
- Master Carton Dimensions W x L x H: 15 x 10 x 12 Inch
- Fits Universal; Some Adaptation May Be Required
Description
High-Performance 1-Inch Compression Driver with Horn Kit. The DS18 1-Inch Driver Horn Kit delivers powerful and clear audio output, designed specifically to enhance the performance of sound systems. This kit is ideal for car audio enthusiasts looking to improve system volume and clarity.
Construction and Appearance. The kit features a phenolic diaphragm and ferrite magnet in the compression driver, housed within a durable aluminum and ABS composite body. The horn is constructed from ABS/PC injected plastic and finished in black, combining robustness with a sleek appearance suitable for various installations.
Installation. Installation is straightforward with a compact mounting depth and a standardized bolt pattern, making it compatible with a wide range of setups. The dimensions and design allow for flexible fitting options, though some adaptation may be necessary depending on the application.
Application. Fits universal applications; some adaptation may be required.
DS18 PRO-DR1PK44
