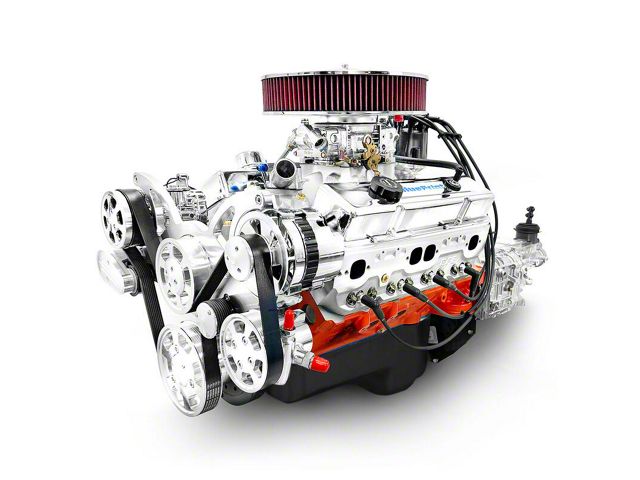

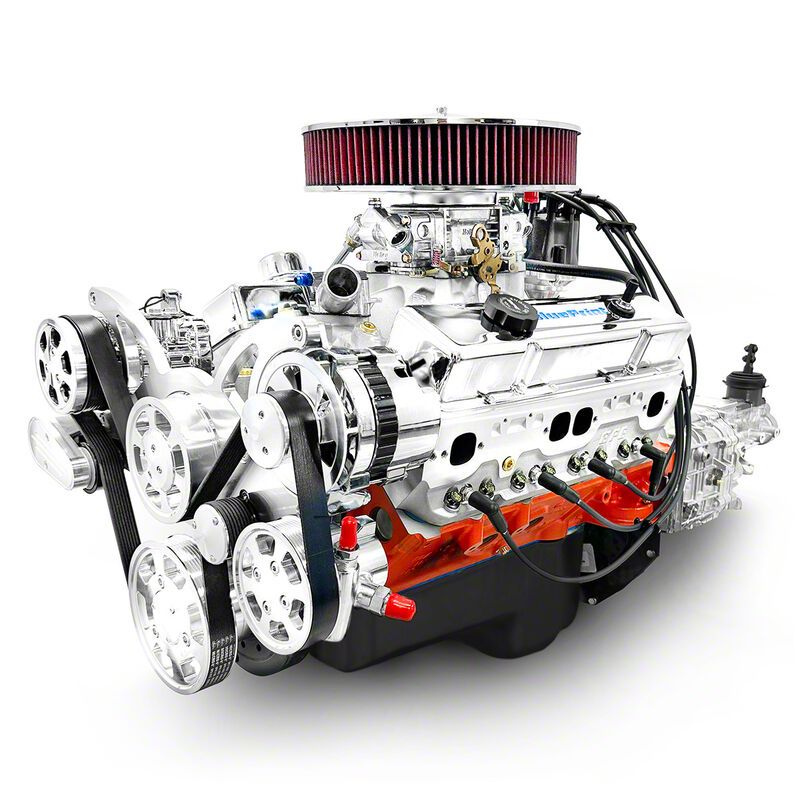

BluePrint Engines Standard Edition Builder Series Small Block Chevy ProSeries 427 C.I. 540 HP Fuel Injected Crate Engine and TKX Manual Transmission with Polished Pulley Kit

Item U19365-EK
Product Image
1 Reviews of BluePrint Engines
Our Price

$21,999.00

Military, Medical & First Responders $1,099.95 Available in EK Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • 540 Horsepower / 535 FT. LBS. Torque
      • Compression Ratio 10:1
      • BluePrint Engines Aluminum Cylinder Heads
      • Hydraulic Roller Camshaft With .577 Intake / .577 Exhaust Lift And 240 Intake / 248 Exhaust Duration @ .050 – 112 LSA
      • Forged Pistons
      • Forged Steel Crankshaft With 4.000" Stroke And Forged 6.000" Rods
      • Fuel Recommendation 91+ Octane
      • High Strength Cast Iron Block Manufactured And Machined In The USA
      • Drilled And Tapped For Clutch Linkage
      • Mechanical Fuel Pump Provision
      • Passenger Side Dipstick
      • 1-Piece Rear Main Seal With 4-Bolt Main And 4.125" Bore
      • BluePrint Aluminum Cylinder Heads HP8103, 64cc Chamber, 2.08" Intake / 1.60" Exhaust Valves, 220cc Intake / 67cc Exhaust Runners
      • Ignition Timing Initial 10-16° And Total 32-34°
      • Satin Aluminum Intake Manifold
      • Holley Sniper 2 EFI System
      • Pro Series Ready Run Distributor
      • Thermostat And Thermostat Housing
      • EFI Pump Kit
      • Valve Covers
      • Spark Plugs And Wires
      • Timing Cover
      • Oil Pan
      • Polished Front Accessory Drive With Reverse Rotation Short Water Pump, Type II Power Steering Pump, Remote Power Steering Pump Reservoir, 140amp 1-wire Alternator And 7B10 Peanut Style Air Conditioning Compressor
      • Assembled With Complete TKX Manual Transmission Package Including Mcleod Super Street Pro Single Disk Clutch, Hydraulic Throw Out Bearing, Bell Housing, Billet Flywheel, Starter
      • Transmission Gear Ratios: 2.87:1 (First), 1.89:1 (Second), 1.28:1 (Third), 1.00:1 (Fourth), 0.81:1 (Fifth)
      • Fits Many Vehicles With Note That Front Accessory Drive Requires Customer Fitment Verification And May Need Additional Modifications

      Description

      Powerful Crate Engine. The BluePrint Engines Standard Edition Builder Series Small Block Chevy ProSeries 427 C.I. 540 HP Fuel Injected Crate Engine and TKX Manual Transmission with Polished Pulley Kit is designed to provide robust performance with modern fuel injection technology. This 540 horsepower, 535 lb-ft torque powerplant delivers reliable power and smooth operation suitable for high-performance street or custom builds. It integrates a durable crankshaft and forged components to ensure longevity and performance under demanding conditions.

      Construction and Appearance. This engine features a high-strength cast iron block, precision-machined in the USA, combined with aluminum cylinder heads engineered for optimum airflow and combustion efficiency. The hydraulic roller cam and forged internals provide enhanced durability and power output. A polished front accessory drive adds aesthetic appeal and functionality, complemented by a satin aluminum intake manifold and a Holley Sniper 2 EFI system for seamless fuel delivery and performance.

      Installation. Installation requires moderate mechanical knowledge. Customers must verify clearance and fitment of the front accessory drive as it may require minor fabrication or routing adjustments. The block is drilled and tapped for clutch linkage to simplify hookup with the included TKX manual transmission package, which contains a Mcleod Super Street Pro single disk clutch, hydraulic throw out bearing, bell housing, billet flywheel, and starter.

      Warranty. This engine comes with an industry-leading 30 months or 50,000 miles parts and labor warranty, providing peace of mind for both professional installers and enthusiast builders.

      Application. This crate engine fits a wide range of GM Small Block-compatible vehicles. Customers should confirm front accessory drive fitment and anticipate minor customizations for power steering hoses, wiring, and fittings. This engine is not intended for use in pollution-controlled vehicles.

      BluePrint Engines B427FKTKX
