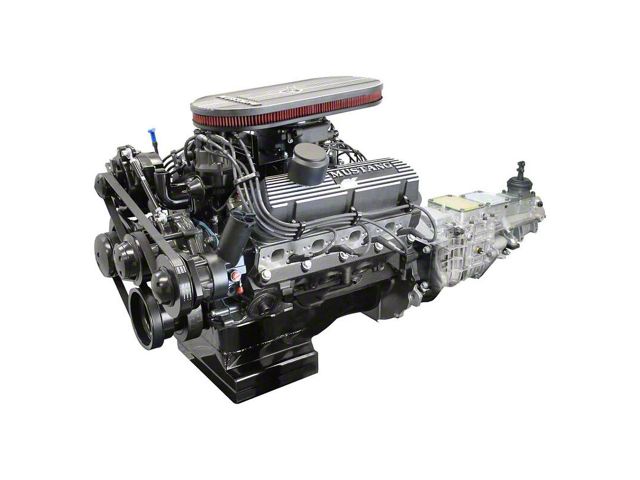

BluePrint Engines Mustang Edition Builder Series Small Block Ford 347 C.I. 415 HP Carbureted Crate Engine and TKX Manual Transmission with Black Pulley Kit

Item U19338-EK
Product Image
1 Reviews of BluePrint Engines
Our Price

$18,699.00

Military, Medical & First Responders $934.95 Available in EK Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • 415 Horsepower / 415 Ft. Lbs. Torque
      • 10:1 Compression Ratio
      • Aluminum Cylinder Heads
      • Cast Crankshaft
      • Hydraulic Roller Camshaft
      • High Strength Cast Iron Block with Increased Deck Thickness and Strength Webbing
      • Priority Main Oiling
      • 4.000" Bore
      • 4-Bolt Main Caps
      • 1-Piece Rear Main Seal
      • Improved Water Jacket Design
      • Cast Crankshaft with 3.400" Stroke
      • Forged 5.400" Connecting Rods
      • Forged Pistons
      • 28 oz Externally Balanced Front and Rear
      • Aluminum Cylinder Heads with 60cc Chamber and 2.02" Intake / 1.60" Exhaust Valves
      • 190cc Intake / 60cc Exhaust Runners
      • Hydraulic Roller Camshaft with .543" Intake / .554" Exhaust Lift and 218° Intake / 226° Exhaust Duration at .050" with 112° Lobe Separation Angle
      • Ignition Timing of 34 Degrees Total at 3500 RPM
      • Holley 600 CFM Street Warrior Carburetor Included
      • Mustang Style Valve Covers
      • Thermostat and Thermostat Housing
      • Dual Plane Satin Aluminum Intake Manifold
      • Pro Billet Distributor
      • 7 Quart Oil Pan
      • Black Electric Fuel Pump
      • Black Front Accessory Drive Including Water Pump, Power Steering Pump, Remote Reservoir, Alternator, and Air Conditioning Compressor
      • Fully Assembled Package Including TKX Manual Transmission with McLeod Super Street Pro Clutch, Hydraulic Throw Out Bearing, Aluminum Bellhousing, Flywheel, Engine Guard, and Starter
      • Transmission Gear Ratios: First 2.87:1, Second 1.89:1, Third 1.28:1, Fourth 1.00:1, Fifth 0.81:1
      • Fuel Recommendation of 91+ Octane
      • Fits Small Block Ford Applications Compatible with Specified Crate Engine Setup

      Description

      Performance Package. The BluePrint Engines Mustang Edition Builder Series Small Block Ford 347 C.I. 415 HP Carbureted Crate Engine with TKX Manual Transmission and Black Pulley Kit is a complete high-performance powertrain solution built for automotive enthusiasts seeking reliable and robust power. This crate engine delivers 415 horsepower and 415 ft. lbs. of torque, providing a significant upgrade for muscle car restorations or performance builds. It comes fully assembled with a manual transmission for a turnkey installation experience and enhanced driving engagement.

      Construction and Appearance. Featuring a high-strength cast iron block with increased deck thickness and strength webbing for durability, the engine is equipped with aluminum cylinder heads for excellent heat dissipation and performance. The front accessory drive is finished in black and includes all necessary components. The rotating assembly consists of forged pistons and connecting rods paired with a cast crankshaft designed for strength and balanced for smooth operation. The engine maintains a clean, professional appearance ideal for muscle car builds.

      Installation. Installation of this complete crate engine and transmission package is straightforward for experienced installers and generally requires no custom drilling or modifications. Customers should verify fitment specifics carefully, particularly concerning accessory clearances and vehicle compatibility, to ensure proper installation without the need for fabrication.

      Warranty. This engine is backed by a 30-month or 50,000-mile warranty covering parts and labor, providing confidence in quality and durability.

      Application. This engine and transmission package fits a variety of small block Ford builds compatible with the supplied longblock dimensions and accessory drive setup. Verification of vehicle compatibility regarding accessory fit and clearance is recommended prior to purchase.
