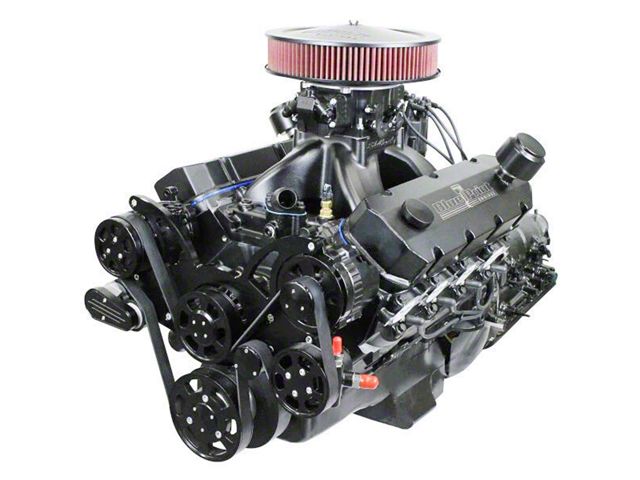

BluePrint Engines Blackout Reaper Edition Builder Series Big Block Chevy ProSeries 632 C.I. 815 HP Carbureted Crate Engine and 4L80E Automatic Transmission with Black Pulley Kit
Item U19329-EK
Our Price
$30,899.00
Military, Medical & First Responders
$1,544.95 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- 815 Horsepower / 775 Ft. Lbs. Torque
- Compression Ratio 11:1
- Aluminum Cylinder Heads
- Hydraulic Roller Cam With .698 Intake / .698 Exhaust Lift And 272 Intake / 282 Exhaust Duration @ .050, 110 Lsa
- Forged Pistons
- Forged Crank With 4.750" Stroke
- Forged 6.635" Connecting Rods
- 91+ Octane Fuel Recommendation
- High Strength Cast Iron Tall Deck Block, 4-Bolt Main, 4.600" Bore, 1-Piece Rear Main Seal
- Mechanical Fuel Pump Provision And .300" Raised Exhaust Ports
- Includes Valve Covers, Oil Pan, Timing Cover, Harmonic Balancer, 1250cfm Carburetor, Intake Manifold, Ready Run Distributor, Electric Fuel Pump, Thermostat And Housing, Black Pulley Kit With Reverse Rotation Short Water Pump, 1-Wire 140amp Alternator, Peanut Style Air Conditioning Compressor, And Type II Power Steering Pump With Remote Reservoir
- Complete 4L80E Automatic Transmission With Electronic Controller, Lockup Capability, 3800+ Stall Torque Converter, Flex Plate, And Starter
- 4L80E Gear Ratios: 1=2.482, 2=1.482, 3=1.00, 4=0.750, Reverse=2.077
- Fits Big Block GM Style Applications With Clearance Verifications Recommended Due To Raised Exhaust Ports And Tall Deck Block
Description
Powerful High-Performance Engine. The BluePrint Engines Blackout Reaper Edition Builder Series Big Block Chevy ProSeries 632 C.I. 815 HP Carbureted Crate Engine and 4L80E Automatic Transmission with Black Pulley Kit delivers exceptional power and torque ideal for high-demand performance vehicles. Designed as a complete crate package, it integrates an 815 horsepower engine with a robust 4L80E automatic transmission, providing reliable power delivery. This package is ideal for automotive enthusiasts upgrading their drivetrain with precision-engineered components.
Construction and Appearance. This engine features a high-strength cast iron tall deck block with a 4.600" bore and a 4-bolt main for durability. It includes BluePrint’s aluminum cylinder heads with .300" raised exhaust ports, forged pistons and connecting rods, and a forged crankshaft with a 4.750" stroke. The finish includes a blackout black pulley kit and a satin aluminum single-plane intake manifold, combining performance with a sleek, aggressive look.
Installation. Installation requires moderate experience to accommodate the tall deck block and raised exhaust port design, necessitating verification of exhaust and accessory clearances. Special attention to fitting power steering hoses, alternator wiring, and other components may be needed depending on the vehicle, though drilling is typically not required.
Warranty. This engine comes with a 30-month or 50,000-mile transferable warranty covering parts and labor, providing confidence and support for both professional installers and individual users.
Application. Designed for Big Block GM style applications, this crate engine requires confirmation of fitment due to its .300” raised exhaust ports and .400” increase in deck height. It is not intended for use in pollution-controlled vehicles.
BluePrint Engines B632KB4L8X
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
5.0
Reviews of BluePrint Engines Classic Engine Products (1)
Questions & Answers
No questions about this product yet.
Ask the First Question
