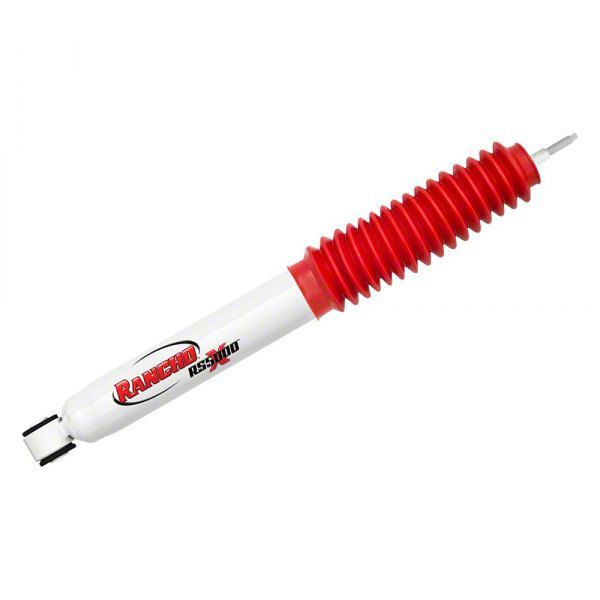

Rancho RS5000X Front Shock for Stock Height (80-96 Bronco)Find parts that fit my vehicle
Item EK-51-900045
Our Price
$66.32
Military, Medical & First Responders
$3.32 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Packed With Innovative Features
- Exclusive Cross Tuned Technology With Rebound Valving System
- Improved Overall On- And Off-Road Handling And Performance
- Exclusive Progressive Engagement Valving Custom-Tuned For Each Vehicle
- Reduces Initial Impacts At Low Speeds And Minimizes Rough Ride
- 16Mm Nitro-Carburized Piston Rod Resists Scuffs & Corrosion
- Double-Welded Loops At Stress Areas For Structural Integrity
- 35Mm Sintered Iron Piston For Enhanced Strength
- Polyvinyl Protective Boot Included
- Large Twin-Tube Body Filled With All-Weather Fluid
- Withstands Internal Temperatures From -40 To 248°F
- Polyurethane Rebound Bumper And Rubber Bushings Absorb Harshness
- Fluon-Banded Piston Enhances Responsiveness To Road Conditions
- Nitrogen Gas Pressurized To 150 PSI Reduces Damping Fade And Foaming
- Compression Control Valve Custom-Tuned For Each Vehicle
- Low-Friction, Self-Lubricating Seal For Quicker Rebound
- Application-Specific Piston For Heightened Control Of Shock Motion
- Comes With Limited Lifetime Warranty
- Telescopic Type With Mounting Hardware Included
- Extended Length 14.32 Inches
- Shock Stroke 4.57 Inches
- Lower Mount Type Loop Bushing And Sleeve With 12Mm Sleeve Id
- Upper Mount Type Stem Mount With 2.3/8" Stem Length And 3/8"-16 Thread Pitch
- Boot Included
- Gas Charged
- Body Diameter 2.25 Inches
- Compressed Length 9.75 Inches
- Painted Finish
- Nitro-Carburized Steel Shaft Material
- Steel Body Material
- Rod Diameter 0.622 Inches
- Twin Tube Internal Construction Type
- Performance Grade
- Passive Suspension
- Includes Dust Shield
- Dust Shield Material Rubber
- Upper Mount Code S4
- Lower Mount Code LS26
- Valving Type Progressive
- Shock Absorber Bore Size 1.378 Inches
- Fits 80-96 Bronco
Description
Advanced Suspension Performance. The Rancho RS5000X Front Shock for Stock Height delivers enhanced handling and ride comfort for your vehicle. Designed to improve on- and off-road performance, this shock absorber utilizes an exclusive Cross Tuned technology to customize compression and rebound for superior vehicle control.
Materials and Design. Constructed with a 16mm nitro-carburized steel piston rod and a 35mm sintered iron piston, this shock absorber provides durability and resistance to corrosion. It features a twin-tube body filled with all-weather fluid for consistent operation in extreme temperatures, finished with a protective painted coating for long-lasting performance.
Installation. Installation of this shock absorber is straightforward and requires no drilling. It includes all necessary mounting hardware for an efficient replacement of your existing shocks.
Warranty. This product is backed by a limited lifetime warranty, ensuring long-term reliability and customer support.
Application. Specifically designed to fit 1980-1996 Bronco models without modifications. It accommodates stock height suspension setups and maintains factory ride characteristics.
