Eckler's Catalogs Available Now!
FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self Tuning Fuel Injection System; Matte Black (Universal; Some Adaptation May Be Required)
Item EK-51-394703-1
Coupon Added
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- Go EFI 2×4 Power Adder 1200HP Self Tuning Fuel Injection System _x000D_
- Rated For Engines From 400HP To 1200HP _x000D_
- Compatible With 671 And 871 Roots Superchargers _x000D_
- Works With Dual Quad Carburetor Setups _x000D_
- Suitable For Inline Or Side Mount Application _x000D_
- Bolt On For Popular Normally Aspirated Dual Quad And Tunnel Ram Manifolds _x000D_
- Includes Eight Flow Matched Injectors _x000D_
- Two Fan Controls Included _x000D_
- Supports Blower And Turbo Applications _x000D_
- Compatible With Nitrous Systems Including Boost And Nitrous Timing _x000D_
- Ignition Timing Control Integrated _x000D_
- Has Built In Fuel Pressure Regulator _x000D_
- Supports Air To Fuel Ratio Tuning _x000D_
- Includes Pro Tuning Laptop Software _x000D_
- Matte Black Finish _x000D_
- Includes Two Die Cast Throttle Bodies _x000D_
- Oxygen Sensor And Bung Kit Included _x000D_
- Hand Held Controller And Cable Included _x000D_
- Coolant Temperature Sensor And Adapter Included _x000D_
- Windshield Mount And Mini USB Cable Included _x000D_
- Four Plus Two Pin Connector Included _x000D_
- Two Return Plugs Provided _x000D_
- Gasket Kit Included _x000D_
- Weight Approximately 20 To 21 Pounds _x000D_
- Dimensions Approximately 15x15x12 Inches To 16x16x13 Inches _x000D_
- Throttle Body Mounting Flange Is Dual 4-barrel Square Bore _x000D_
- Contains Eight 43mm Venturis _x000D_
- Provides 1700 Cubic Feet Per Minute Airflow _x000D_
- Throttle Body Made From Cast Aluminum _x000D_
- Throttle Body Finished In Satin Black _x000D_
- Injectors Are 80 Pounds Per Hour Size _x000D_
- Includes Calibration Module, Wiring Harness, Oxygen Sensor, MAP Sensor, IAT Sensor, TPS Sensor _x000D_
- Tuning Method Is Speed Density (MAP-N) _x000D_
- Compatible With Fuel Types Including Alcohol, Gasoline, Methanol, And Flex Fuel _x000D_
- Sold Individually _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
HIGH-PERFORMANCE EFI SYSTEM. The FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self Tuning Fuel Injection System Matte Black provides advanced fuel management for dual quad carburetor setups capable of supporting engines from 400 to 1200 horsepower. Designed for supercharged, turbocharged, nitrous, or naturally aspirated applications, this system improves throttle response, drivability, and tuning flexibility by delivering precise fuel metering and integrated ignition control.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. The system features two die-cast throttle bodies constructed from durable cast aluminum with a satin black finish for a sleek, professional look. The design seamlessly integrates eight matched injectors and high-flow venturis to support airflow up to 1700 cfm, while including all sensors and hardware required for complete EFI operation.
_x000D__x000D_INSTALLATION. Installation is straightforward with a bolt-on design compatible with most popular dual quad and tunnel ram manifolds, requiring no drilling or manifold modifications. It can be mounted inline or on the side using custom linkages to provide flexibility in fitment.
_x000D__x000D_WARRANTY. This system comes with a 3-year limited warranty to ensure reliability and customer satisfaction.
_x000D__x000D_APPLICATION. Designed to fit universally on dual quad manifolds with some adaptation potentially required depending on the specific intake and blower setup.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box

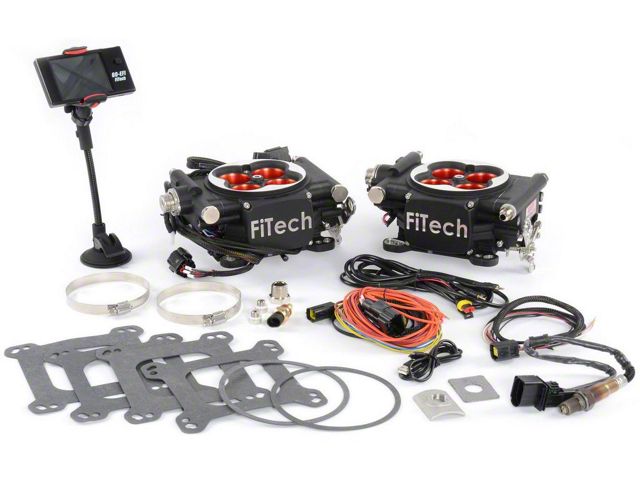

What's in the Box
- (2) Die-cast throttle body.
- (1) O2 bung kit.
- (1) Hand-held controller.
- (1) CTS sensor.
- (1) Hand-held controller cable.
- (1) CTS adapter.
- (1) Windshield mount.
- (1) Mini USB cable.
- (1) 4+2-Pin Connector.
- (2) Return plug.
- (1) O2 sensor.
- (1) Gasket kit.
