FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self Tuning Fuel Injection System; Matte Black (Universal; Some Adaptation May Be Required)

Item EK-32-394703-1
Product Image
Eckler's no longer carries the FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self Tuning Fuel Injection System; Matte Black (Universal; Some Adaptation May Be Required). Please check out Early Ford Car/Truck Electricalfor an updated selection.
Coupon
Shop Owners Save More! Sign up for our dealer program
Join For FREE

    Product Information

    Features, Description, Q&A, Specs & Installation

    Features

      _x000D_
    • Rated For Engines From 400hp Thru 1200hp
      • _x000D_
    • Designed For 671 And 871 Roots Superchargers Or Naturally Aspirated Dual Quad Setups
      • _x000D_
    • Works Out Of The Box On 2x4 Blower Plates Using Inline Setup Or Side Mount With Custom Linkages
      • _x000D_
    • Bolt-On Fit For Most Popular Normally Aspirated Dual Quad And Tunnel Ram Manifolds Including Edelbrock
      • _x000D_
    • One Throttle Body Includes Control Electronics; Second Holds Four Additional Injectors
      • _x000D_
    • Compatible With Cross Ram And Tunnel Ram Configurations
      • _x000D_
    • Suitable For Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, And Similar Engines
      • _x000D_
    • Supports Horsepower Range From 250 Hp Up To 1200 Hp
      • _x000D_
    • Replaces Any Dual Quad Carburetors In Applicable Engine Range
      • _x000D_
    • Compatible With Standard Size Air Cleaners Used For Dual Quad Carburetors
      • _x000D_
    • Features 2.5 Bar Internal MAP Sensor
      • _x000D_
    • Includes Eight Flow Matched Injectors
      • _x000D_
    • Supports Two Fan Controls
      • _x000D_
    • Ready For Blower And Turbo Applications
      • _x000D_
    • Supports Nitrous Oxide With Boost And Nitrous Timing Control
      • _x000D_
    • Includes Ignition Timing Control
      • _x000D_
    • Built-In Fuel Pressure Regulator
      • _x000D_
    • Enables Air/Fuel Ratio Tuning
      • _x000D_
    • Includes Pro-Tuning Laptop Software
      • _x000D_
    • Matte Black Finish
      • _x000D_
    • Kit Contains Die-Cast Throttle Bodies, O2 Bung Kit, Hand-Held Controller, CTS Sensor And Adapter, Windshield Mount, Mini USB Cable, Connectors, Return Plugs, O2 Sensor, And Gasket Kit
      • _x000D_
    • Weight Approximately 20-21 Pounds
      • _x000D_
    • Dimensions Approximately 15x15x12 Inches Or 16x16x13 Inches
      • _x000D_
    • Injection Style Is Throttle Body
      • _x000D_
    • Compatible With Timing Control And Power Adders (Boost/Nitrous Oxide)
      • _x000D_
    • Includes ECU But Excludes Fuel Pump And Transmission Controller
      • _x000D_
    • Metering Style Is Speed Density (MAP-N)
      • _x000D_
    • Throttle Body Mounting Flange Is Dual 4-Barrel Square Bore With Eight 43mm Venturis
      • _x000D_
    • Airflow Rate Up To 1700 CFM
      • _x000D_
    • Throttle Bodies Made Of Cast Aluminum
      • _x000D_
    • Injector Size Is 80 Lb/Hr
      • _x000D_
    • Calibration Module And Wiring Harness Included
      • _x000D_
    • Oxygen Sensor, Fuel Pressure Regulator, MAP Sensor, IAT Sensor, And TPS Sensor Included
      • _x000D_
    • Compatible With Alcohol, Gasoline, Methanol, And Flex Fuel Types
      • _x000D_
    • Fits Universal; Some Adaptation May Be Required
      • _x000D_

    Description

    High Performance EFI System. The FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self Tuning Fuel Injection System; Matte Black is engineered to deliver precise fuel management for engines ranging from 400 to 1200 horsepower. This self-tuning system replaces traditional dual quad carburetors, enhancing throttle response and efficiency for both naturally aspirated and supercharged setups. Its versatility makes it suitable for a wide range of popular engine platforms, supporting advanced features like boost and nitrous timing for optimal power delivery.

    _x000D__x000D_

    Construction and Appearance. Constructed with die-cast cast aluminum throttle bodies, the system boasts a durable matte black finish designed for both performance and aesthetics. The kit includes flow matched injectors and sensors integrated into a compact bolt-on design that fits popular dual quad and tunnel ram manifolds, emphasizing durability and ease of install while maintaining a clean, professional look.

    _x000D__x000D_

    Installation. Installation is straightforward with bolt-on compatibility for common manifolds, requiring no drilling for most applications. The system accommodates custom linkage mounting options for blower plates, making it adaptable for a variety of power adder configurations.

    _x000D__x000D_

    Warranty. Comes with a three-year limited warranty providing assurance of quality and reliability.

    _x000D__x000D_

    Application. Fits universal with some adaptation may be required for specific setups involving dual quad intake manifolds. Suitable for engines from multiple manufacturers producing between 250 HP and 1200 HP, replacing any dual quad carburetor in this power range.

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Installation & What's in the Box

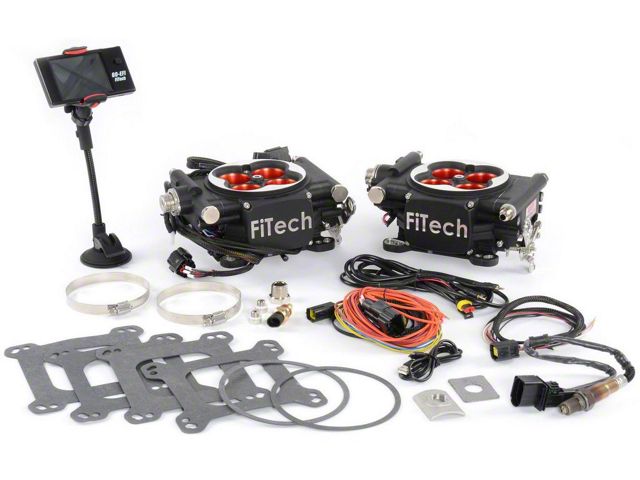

    What's in the Box

    • (2) Die-cast throttle body.
    • (1) O2 bung kit.
    • (1) Hand-held controller.
    • (1) CTS sensor.
    • (1) Hand-held controller cable.
    • (1) CTS adapter.
    • (1) Windshield mount.
    • (1) Mini USB cable.
    • (1) 4+2-Pin Connector.
    • (2) Return plug.
    • (1) O2 sensor.
    • (1) Gasket kit.
