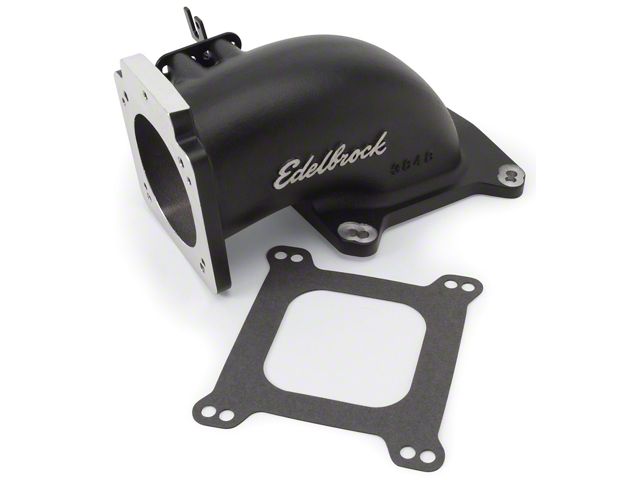

Edelbrock 38483 Low Profile Intake Elbow; 90Mm Throttle Body To Square-Bore Flange; Black Finish

Item EK-32-454774-1
Eckler's no longer carries the Edelbrock 38483 Low Profile Intake Elbow; 90Mm Throttle Body To Square-Bore Flange; Black Finish . Please check out Early Ford Car/Truck Enginefor an updated selection.
21 Reviews of Edelbrock
Shop Owners Save More! Sign up for our dealer program
Join For FREE
Loading Indicator

    Product Information

    Features, Description, Q&A

    Features

      _x000D_
    • Fits Low Profile Applications With Limited Hood Clearance
      • _x000D_
    • Adapts 75, 85, And 90 Millimeter Throttle Bodies To Square Bore 4150 Flanges
      • _x000D_
    • Compatible With Various EFI Manifolds Including Victor Jr LS1 And Other 4150 Style Manifolds
      • _x000D_
    • Can Be Mounted Forward, Backward, Or Sideways On Victor EFI Square Bore Manifolds
      • _x000D_
    • Throttle Bore Centerline Sits Seven Inches Forward And Two Inches Up From Manifold Flange
      • _x000D_
    • Throttle Body Points Downward At Five Degree Angle
      • _x000D_
    • One Inch Spacer Required For Small And Big Block Chevy Forward Mount Setups To Clear Water Neck
      • _x000D_
    • Features Bolt Pattern Suited For LS1, LS2, And Ford 5.0L Style Throttle Bodies
      • _x000D_
    • Designed For Use In Ultra Low Profile Installations
      • _x000D_
    • Includes Gasket Or Seal For Installation
      • _x000D_
    • Sold Individually
      • _x000D_
    • Overall Height Is Approximately Five Inches
      • _x000D_
    • Main Port Inside Diameter Is Ninety Millimeters
      • _x000D_
    • Thickness Measures Approximately 0.44 Inches
      • _x000D_
    • Length Is Seven Inches
      • _x000D_
    • Constructed From Aluminum
      • _x000D_
    • Finished In Black Powder Coat
      • _x000D_
    • Not Compatible With E85 Or Oxygenated Fuels
      • _x000D_
    • Includes Twelve Month Warranty
      • _x000D_
    • Fits Square Bore 4150 Style Manifolds Using 75, 85, Or 90 mm Throttle Bodies With Required Adapters
      • _x000D_

    Description

    Low Profile Adaptive Intake. The Edelbrock 38483 Low Profile Intake Elbow with 90mm Throttle Body to Square-Bore Flange in black finish is designed to allow throttle bodies sized 75 to 90 millimeters to be mounted to standard 4150 style square bore manifolds. It is engineered for use in applications with limited hood clearance, offering multiple mounting orientations to optimize fitment in tight engine bays. This elbow improves throttle body positioning while maintaining efficient airflow.

    _x000D__x000D_

    Construction and Appearance. This intake elbow is constructed from durable aluminum and features a black powder-coated finish for corrosion resistance and a sleek appearance. The robust design supports consistent performance while the coating provides longevity in demanding automotive environments.

    _x000D__x000D_

    Installation. Installation requires no drilling and uses the included gasket or seal to ensure a secure fit. Its bolt pattern fits common LS and Ford style throttle bodies and can be oriented forward, backward, or sideways for versatile application.

    _x000D__x000D_

    Warranty. The product includes a twelve month warranty covering defects in materials and workmanship.

    _x000D__x000D_

    Application. This elbow fits universal square bore 4150 style manifolds and accommodates 75, 85, and 90 millimeter throttle bodies using the appropriate adapters. A one-inch spacer is necessary for certain Chevy forward mount configurations to clear the water neck. It is not compatible with E85 or oxygenated fuels.
